Product Details:
|
| Tile Type:: | Colored Steel | Power(W):: | 7.5+5.5kw |
|---|---|---|---|
| Dimension(L*W*H):: | 7*1.35*1.2m | Raw Material Width:: | 80-300 |
| Control System:: | PLC System | Thickness Of The Plate:: | 0.3-0.8mm |
| Material Of The Cutting Blade:: | Cr12 | Production Capacity:: | 8-12m/min |
| High Light: | glazed tile roll forming machine,roof tile roll forming machine |
||

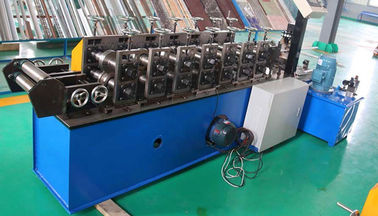

Light Gauge Steel Framing Roll Forming Machine Quick Change Stud And Rack
1. We do Best, About Machine
1) To produce the best machine,Kingter is taking EUROPEAN quality standard;
2) Choose the best material and components, and adopting our 10 years experience;
3) Kingter achieves that the machine capacity is double of the competitors;
4) The machine working speed can be8-12m/min;
5) Only 1 worker to operate for roll forming machine .
2. We do Detail, Machine Parameters
3. We do Standard, Machine Components
For this machine, according to our company standard, we will offer you following components
as the standard configuration.
| Manual decoiler | 1pc |
| Guiding | 1pc |
| Roll Forming Equipment | 1pc |
| Post Cut Equipment | 1pc |
| Hydraulic Station | 1pc |
| PLC Control Penal | 1pc |
| Supporter Table | 2pc |
Working Flow
Uncoiling→Sheet Guiding →Roll Forming→Pressing →Measuring Length & Shearing →Sheet to Support Table
| No. | Roll Forming Machine | |
| 1 | Suitable material | Color steel sheet ,galvanized steel sheet, aluminium sheet |
| 2 | Width of material | 194-372mm or customized |
| 6 | Thickness of material | 1.5-3mm, customized |
| 2 | Working speed | 8-10m/min |
| 3 | Main motor power | 11 with cycloidal reducer |
| 4 | Hydraulic station power | 5.5kw |
| 5 | Electrical control system | PLC control system |
| 7 | Shaft diameter | 80mm |
| 8 | Roller station | 13 rows |
| 10 | Dimension | 8500x1350x1510mm |
| 11 | Weight | About 5.6 T |
| 12 | Voltage | 380V 3phase 50HZ or as the customer's requirements |
| 13 | Material of roller | High grade 45# forged steel plated with hard chrome plating |
| 14 | Material of cutting | Cr12 mould steel with quenched treatment |
| 15 | Working time | Can be 24 hours |
| 16 | Workers |
1-2 only
|
1. We have professional technicians for loading
Guaranteed the goods load into container without any damage.
2. Transportation : Machines need one 40 feet container to hold
Established in 2001, our factory gets specialized in producing all kinds of roll forming machines such as Corrugated Sheet Roll Forming Machine, IBR Sheets Roll Forming Machine, Glazed Tile Roll Forming Machine, Double Layer Roll Forming Machine, Three Layer Roll Forming Machine, Sandwich Panel Roll Forming Machine, C/Z/U Purline Roll Forming Machine, etc. There are professional engineers and workers to design and produce according to your need.
Located in 104 National Street, Botou city where there are lots of roll forming machine factories, we firmly hold the belief that only good quality and satisfactory after-sale service can make our factory stand out. There are professional engineers ready going abroad to provide installing, debugging service and technical guide. We try to do better in this field.
The machines produced by our factory have been sold worldwide such as Russia , Kazakhstan, England, America, Italy, Australia, Philippines, India, Thailand, Nigeria and Syria, etc. So we are fimiliar with the different needs for different markets. Sincerely hope to cooperate with you.
1. We provide our customers with 1 year warranty.
2. Any parts damaged because of quality problem will be changed for free within the first year.
3. Technical support is provided for free at the whole life of the machine.
4. Over-sea service is provided; the cost thus incurred shall be paid by the buyer.
Q: Do you have after sales support?
A: Yes, we are happy to give advice and we also have skilled technicians available across the world. We need your machines running in order to keep your business running.
Q: How do your machines compare with other big companies in this market?
A: We are up to date with the latest technology and improve our machines accordingly
Q: How does your factory do regarding quality control?
A: Quality is priority. Hongxin People always attach great importance to quality control from the very beginning to the end of the production. Every product will be fully assembled and carefully tested before it's packed for shipment.
Q: Do you sell only standard machines?
A: No, most of our machines are built according to customers specifications, using top brand name components
Q: Will you deliver the right goods as ordered? How can I trust you?
A: Yes, we will. The core of our company culture is honesty and credit. Hongxin is ALIBAB’s Gold supplier with BV assessment. If you check with ALIBABA, you will see that we have never got any complaint from our customers.
Q: How to place order
Inquiry---confirm the profile drawings and price----confirm the PI---arrange the deposit or L/C---then OK
Q: How to visit our company
Fly to Beijing airport: By high speed train From Beijing Nan to Cangzhou Xi (1 hour),
then we can pick up you.
Fly to Shanghai Airport: By high speed train From Shanghai Hongqiao to Cangzhou Xi(4.5 hours),then we can pick up you.
