Metal Roof Corrugated Sheets Rolling Forming Machine

                                                        Metal Roof Corrugated Sheets Rolling Forming Machine

Corrugated profiled steel roof sheets are stylish in appearance and quick and easy to install. They are super strong performing well under load from weather and other stresses. Being so lightweight makes them easy to handle. So metal roof corrugated sheets nearly popular all over the world. In order to satisfy the market needs, we design the 45 meter per minute high speed metal Corrugated Sheets Rolling Forming Machine.

Advantages of corrugated steel roofing:

1. Corrugated steel roofing sheets are extremely durable.

• Steel roofing sheets don’t suffer from rot or insect infestations such as termites, woodworm or similar.
• Corrugated metal roofing systems are best installed on a slope in order to achieve adequate rain water and moisture run-off.
• The sheets are chemically treated during the manufacturing process to prevent algae and corrosion.
• Corrugated metal sheets withstand fires and extreme heat better than timber and asphalt.
• Telecommunications, WiFi and mobile phone signals work better in buildings constructed using steel because its more lightweight than most other building materials.

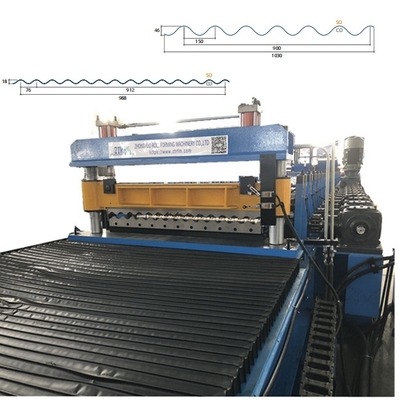

Here are some popular corrugated metal roofing sheet drawing profiles for your reference:

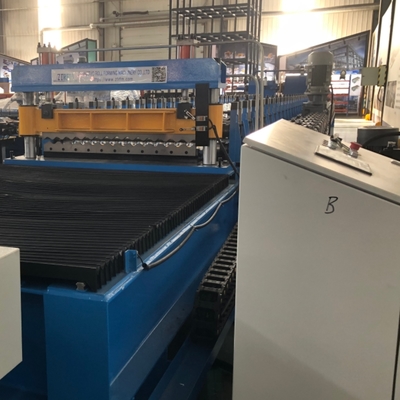

Metal Roof Corrugated Sheets Rolling Forming Machine (45 meter per minute type)

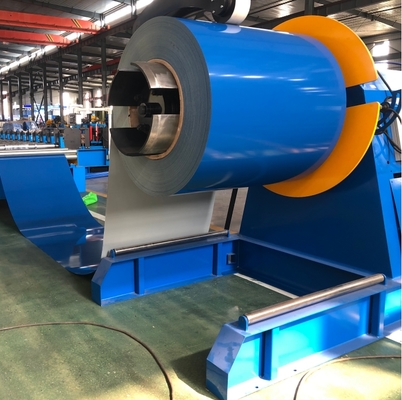

1. Hydraulic decoiler, you can either to choose 5 ton or 10 ton either with loading car or without.

2. For the rolling forming machine with gearbox and servo tracking shearing saw.

3. For the servo tracking shearing, it can increase the speed to 45 meter per minute.

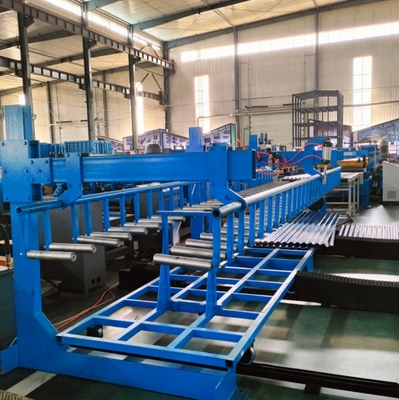

4. For the stacker, we have two ways: before & after direction and right or left direction.

5. Whole production line 1 workers can handle.

The reason of why it can make thickness from 0.18 to 0.45mm thin Corrugated Sheets without damaging the surface of the coil:

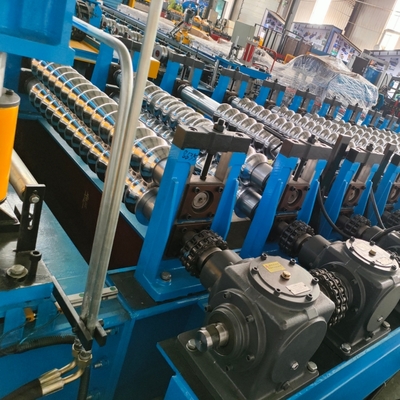

• We design the rollers specially to make wave not triangle shape but smoothly round.

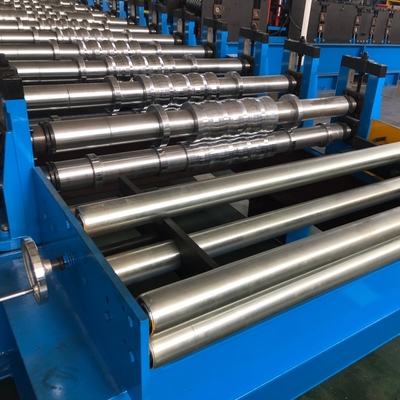

• Use the whole mold rollers not separated small rollers, so it can either to make the big wave or also thin sheet coil. And will not scratch the surface of the coil.
• The rollers we use the GCR15 with the 0.06mm chroming, so the surface of the rollers are 100% smoothly.
• Even if 4-5 years later, the surface of the rollers are still shining.

Metal Roof Corrugated Sheets Rolling Forming Machine Working Video For your reference:
