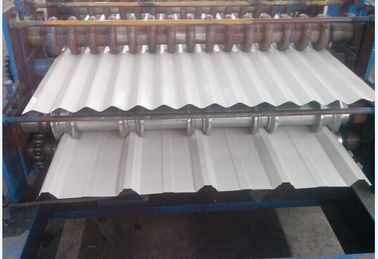

Chain Drive Double Layer Roll Forming Machine With Different Colors

Chain Drive Double Layer Roll Forming Machine With Different Colors
Chain Drive Double Layer Roll Forming Machine With Different Colors

Large Image :  Chain Drive Double Layer Roll Forming Machine With Different Colors

Product Details:
Certification: CE
Model Number: 840 and 850
Payment & Shipping Terms:
Minimum Order Quantity: 1 set
Price: on discuss
Packaging Details: 1. one 40ft container for loading one set machine with manual decoiler; 2. the whole Wiped Anti Rust Oil, PLC controller covered by foam film; 3. Spare parts and some small parts packed in plastic tooling box; 4. All Components Fixed by steel wire with
Delivery Time: 20 days after receipt of buyer's deposit
Payment Terms: T/T, L/C, Western Union
Supply Ability: 20 sets per month

Chain Drive Double Layer Roll Forming Machine With Different Colors

Description
Model NO.:: 840+850 Tile Type:: Colored Steel
Application:: For Roof Sheet Production Roller Material:: 45# With Chromeplating
Shaft Material:: 45# Steel Tempering Kind Of Drive:: Chain Drive
Transport Package:: Nude In 40FT Container HS Code:: 8462219000
High Light:

double deck roll forming machine three layer

,

tile making machine

Doubles Layer Roof Sheet Roll Forming Making Machine With Different Colors



steel sheet roll forming machine Production Process:



Uncoiling→Feeding material into machine→Roll forming→Measuring length→ Auto cutting→

Products receiving



Components of steel sheet roll forming machine



No. Name Unit Qty
1 Manual decoiler set 1
2 Main forming machine set 1
3 PLC control system set 1
4 Hydraulic pump station set 1
5 Post cut set 1
6 Electric motor set 1
7 Output table set 1


decoiler

drive: manual

Inner Diameter: 450-550mm

Outer Diameter: max 1600mm

Max Coil width: 1250mm

Carrying capacity: 5 T

Chain Drive Double Layer Roll Forming Machine With Different Colors 0



Main Forming Machine

Forming steps : 13 rollers
Shaft diameter: 80mm
roller material: 45# steel with tempering
shaft material: 40Cr steel
Transport : By chain
Type of cutting and punching: Hydraulic
Cutting tolerance: ±1mm
Cutter quantity: 2 set

Chain Drive Double Layer Roll Forming Machine With Different Colors 1

Shearing machine

Material of blades: Gcr12 quenched
Power supply : hydraulic power
Frame : Pillar style with rack & pinion system
Stroke switch : non-contact photoelectric switch

hydraulic station

Hydraulic oil: 46#
Hydraulic power: 3kw
Cutting length : As required
feasure: no distorting or wasting. High level safety factor



control device


PLC Control : Speed regulation control cabinet
language: As required
Touch screen: Delta
Function: Automatic length and quantity measurement

Packaging



Packaging Details
1.One 20ft or 40ft container for loading one set machine with manual decoiler.

2.The whole wiped anti rust oil ,PLC controller covered by foam film.

3.Spare parts and some small parts packed in plastic tooling box.

4.All components of Deck Roll Forming machine fixed by steel wire.



training


a.send you user manual and videos.
b.If buyer needs our technicians to go to your factory, the buyer need pay the technician USD80/day for salary .

c.There need one technician. for one week.

After-Sales Service


a.One year guarantee for whole machine.
b.24 hours technical support by email or calling
c.If there is any problem found in ourmachine, we will repair it for free in one year.



FAQ

1. How to get a quotation?
a.Give me the profile drawing and thickness,this is the important.
b.Other spicific requirements is welcome,such as the speed,power and voltage you want.
2. Terms of payment:
30% T/T, Balance to be paid before shipping after inspection.
3. Are you trade company or factory?
We are trade company but we also have our own factories.Building trade company is just for exporting various types of cold double layer roll forming machines.
4. What can you do if the machine broken?
Our machine's warranty period is 12months,if the broken parts can't be repaired,we can send new to replace for free,but you need to pay the express cost yourself.after warranty period,we can negotiate to solve the problems, we supply the technical support for the whole life of the equipment.
