Automatic punching and cut to length production line

Large Image : Automatic punching and cut to length production line

Product Details:

Place of Origin:	China
Brand Name:	ZTRFM
Certification:	CE
Model Number:	ZTAC

Payment & Shipping Terms:

Minimum Order Quantity:	1 set
Price:	80000
Packaging Details:	Nude with anti-oil package
Delivery Time:	90 working days
Payment Terms:	L/C, T/T
Supply Ability:	30 sets per month

Contact Now

Automatic punching and cut to length production line

Description

Highlight:

automatic steel sheet punching machine

cut to length roll forming line

steel sheet production line with warranty

Automatic Punching and Cut to Length Production Line

The automatic punching and cut to length production line is designed for coil punching and subsequent length cutting for further processing. This system is ideal for applications such as bus panel manufacturing.

Example Application

For aluminum material with 2.03mm thickness, the system performs coil punching and cuts to maximum lengths up to 8 meters.

Production Line Components

5 Ton hydraulic decoiler with pressing arm and turnover loading car

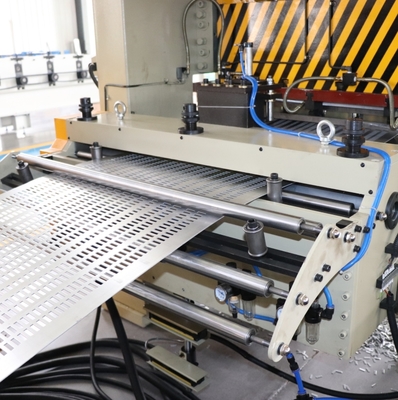

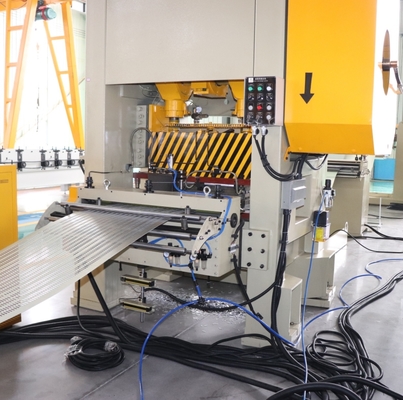

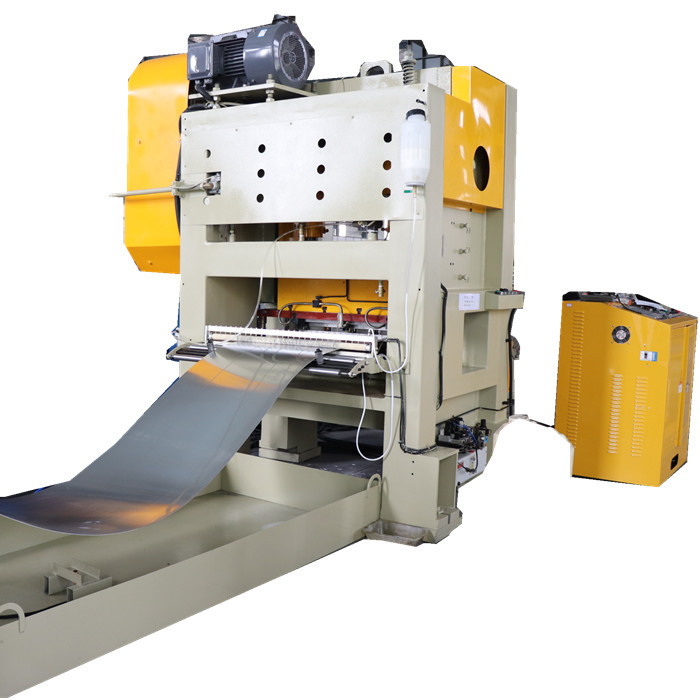

Servo coil feeder with 200 Ton punching machine
Punching Machine
Punching Mold
Hydraulic control system for mold changing and centering

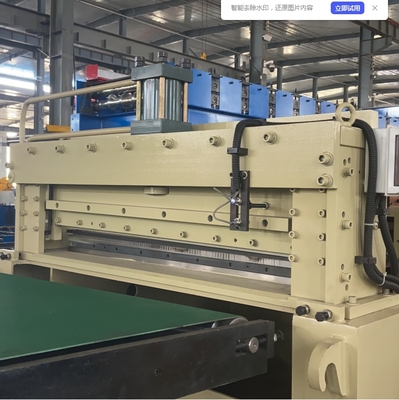

Cut to length machine with convey table
Stacker for drawer rail with flip-over capability and vertical stacking
HMI interface software control with computer

Spare parts: Includes one set of punching needles as gift. Optional convey belt for waste collection system.

Key Differentiating Features

Fast mold change system: Hydraulic-controlled automatic mold changing with single-button operation
Premium mold material: DC53 material for enhanced accuracy and speed
Automatic waste collection: Integrated convey table system for easy daily cleaning
