Metal Corner Trim Roll Forming Machine For Construction Grade PPGI GI Trims

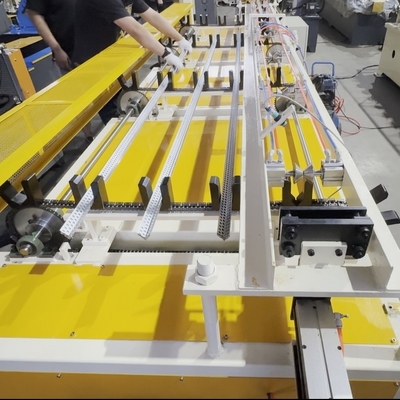

Large Image : Metal Corner Trim Roll Forming Machine For Construction Grade PPGI GI Trims

Product Details:

Place of Origin:	China
Brand Name:	ZTRFM
Certification:	CE,SGS
Model Number:	Corner

Payment & Shipping Terms:

Minimum Order Quantity:	1 set
Price:	Negotiable
Packaging Details:	Nude with anti-rusting coil
Delivery Time:	45 working days
Payment Terms:	L/C,T/T
Supply Ability:	30 sets per month

Contact Now

Metal Corner Trim Roll Forming Machine For Construction Grade PPGI GI Trims

Description

Weight:	4 Tons	Roller Station:	16 To 19
Hydraulic Power:	5.5kw	Rolling Speed:	25M/Min
Working:	Rolling Forming Machine	For Market:	Egypt
Material Expand Width:	1000-1250mm	Cutting System:	Automatic Hydyaulic Cutting
Raw Material Width:	80-300	Model No:	EN-130JK
Material Thickness:	2.5-3.5 Mm	Raw Material Thickness:	1.5-3 Mm
Rolling Spacer:	Anti Rusty Treatment	Control System:	PLC
Frame:	350H Steel/400H Steel/
Highlight:	metal corner trim roll forming machine , construction grade PPGI roll forming machine , GI trims roll forming machine

Metal Corner Trim Roll Forming Machine For Construction Grade PPGI GI Trims

Our Metal Corner Trim Roll Forming Machine delivers high-efficiency production of construction-grade corner trims with full automation, customizable profiles, and consistent output. Designed to streamline production while reducing labor costs, this machine ensures precision in every trim produced.

Core Application: Construction-Grade Metal Corner Trims

Corner Protection: Shields wall corners from impacts and wear, extending the lifespan of drywall and plasterboard.
Aesthetic Finishing: Creates uniform corner edges for enhanced visual appeal in residential, commercial, and industrial buildings.

Custom profile drawings are available to match your project's specific requirements.

Key Machine Specifications: Durable, Efficient & Precise

Category	Specification Details
Raw Material Compatibility	Material Type: PPGI (Prepainted Galvanized Steel), GI (Galvanized Steel) Feeding Width: Customizable Material Thickness: 0.3-1.2mm
Decoiler	Operation: Manual Weight Capacity: 3TON
Roll Forming System	Roller Stations: 12 Shaft Diameter: 55mm Roller Material: 45# steel with 0.05mm chrome coating Machine Frame: Steel sheet welding Frame Thickness: 16mm
Cutting System	Cutting Type: Hydraulic automatic cutting Blade Material: Cr12 Cutting Control: Automatic length trimming
Power & Transmission	Driving Method: Chain drive Main Motor: 4kw Voltage: 380V 50Hz
Control System	Electric Box: PLC control system + inverter PLC Brand: Delta Inverter Brand: Delta Operation Language: Chinese & English Operation Mode: Button press + touch screen

Critical Auxiliary Components

Hydraulic Cutting System: Features Cr12 quenched blade for clean, consistent cuts with minimal material waste.
Pump Station: Uses 46# hydraulic oil with optimal pressure of 8-10 MPa for efficient operation.
Roller Surface Treatment: Polished and hard-plated rollers prevent scratches on finished trims.

More Construction-Grade Roll Forming Solutions

Our product range includes:

U Channel Series: U channel, U purlin, U track roll forming machines
C Channel Series: C channel, C purlin, C stud roll forming machines
Omega Channel Series: Omega channel, furring channel, top hat roll forming machines
T Grid Series: T grid, T bar roll forming machines
Multi-Function Series: Various combination machines for diverse profile needs

All machines are exported globally and can be customized to your specific requirements.

Customize Your Corner Trim Production Line

Contact our team to discuss customization options for trim dimensions, materials, or other construction profile machines. We're committed to providing tailored solutions for your production needs.
