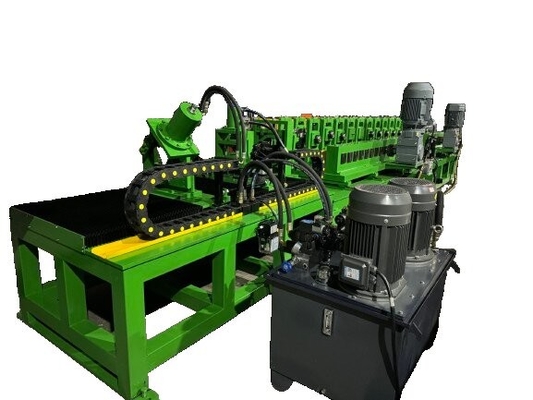

Light Gauge Drywall Metal Stud And Track Roll Forming Machine C Shape Steel Machine For Ceiling

Light Gauge Drywall Metal Stud and Track Roll Forming Machine C Shape Steel Machine for Ceiling

Dry Wall Partition System 1. Dry Wall Angle 2. Track 3. Stud 4. Gypsum Board The Steel Stud Drywall Framing System provides a durable, practical and lightweight structure for internal plasterboard walls and for specific external walls. Metal Profile Stud & track for partition system is made of hot galvanized steel, including Stud, Track, C-Channel, Corner bead &accessories. CW UW frame roll forming machine adopts CNC controlling system, full line Steel framing roll former C stud track roll formers is automatic running. Steel framing roll former C stud track roll formers cutting device adopts the servo motor high speed cutting system. Steel framing roll former C stud track roll formers can produce C stud U track steel framing for suspended ceiling system, and drywall steel framing system. For the C stud and U track, it can be designed with punching holes device, punching logo device, high speed fly saw cutting device, and automatic receiving table system.

Here is a profiles for your reference:

Light Gauge Drywall Metal Stud and Track Roll Forming Machine C Shape Steel Machine for Ceiling

Usefully

Entry Beach:

Usage: Put the raw material (steel plate) through the beach to manufacture and process, it can guarantee that the products are neat, parallel and everything is uniformity.

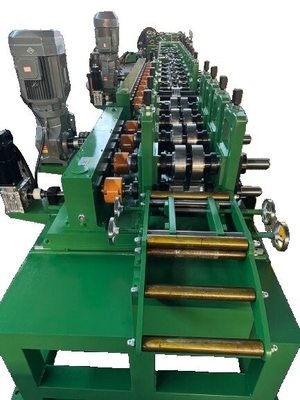

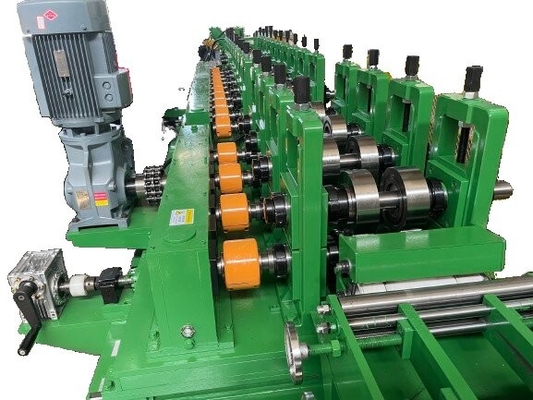

Main Roll Forming System:

Usage: In order to keep the product shape and precision, adopts welded cast structure, motor reducer drive, gear transmission,roller was chromed which can keep the molding plate surface smooth and not easy to be marked when it is being stamped.

Shearing Mechanism:

Feature: Ensure stability, precision and cutting speed
It adopts the hydraulic drive and automatic location to decide the dimension and cut the target products.

Function: Automatic fly cutting controlled by PLC
Material of blades : Cr 12 quenched
Power supply: Hydraulic power

Hydraulic Station:

It is controlled by gear wheel oil pump. After filling the hydraulic oil into the hydraulic oil tank ,the pump drive the cutter machine to begin the cutting job.
Hydraulic oil: 46# hydraulic oil

PLC control cabinet:
Adopted PLC , transducer, touch panel to ensure high speed with stability,
precision and lifetime.
Voltage: 380 v 50 hz 3 phase
Language: Chinese and English
Automatic length measurement
Automatic quantity measurement
Length Tolerance: 3 m±1.5 mm
Length inaccuracy can be amended easily.
Unit of length: millimeter (switched on the control panel)
Computer operating panel: touching screen and button together.

Product Features
1. More efficient and accurate execution of production orders;
2. High equipment reliability;
3. Little waste of materials and energy;
4. High productivity;
5. High quality materials, get a longer service life;
6. All parts of the machine are processed with precision, and the surface of the roll is chromeplated to ensure that customers can get qualified products at the same time, it can avoid the scratch of the color steel surface paint, and increase the service life of the roll;
7. Customized coil processing solutions to solve all aspects of technical problems.
