Product Details:
|
| Machine Weight: | 10.0-14.0 Tons | Frame Material: | 300 H-high Grade Steel |
|---|---|---|---|
| Material: | Steel | Punching: | Adjustable |
| Transmission Way: | One Side Is By 1 Inch Double Chain | Receuving Table: | Manual One Or Stacker One |
| Diameter Of Shaft: | 70mm | Hydraulic Power: | 5.5kw |
| Rolling Number: | 22 Roller Station | Feeding: | Servo Coil Feeder |
| Electricty: | Customize | Feeding Width: | 1220mm |
| Life Time: | 12 Years | Material Of Shaft: | 45 Steel |
| Forming Speed: | 20 To 25 Meter Per Minute | ||
| Highlight: | Shearing System Roll Forming Machine,Smooth Operation Roll Forming Machine,Automatic Control Roll Forming Machine |
||
Soffit Panel Rolling Forming Machine
All the stations of the machines are driving stations, top and bottom. They are all spring loaded which creates a constant load on the material. The springs make our gutter machines the most versatile on the market allowing you to run different material with virtually no adjustments.

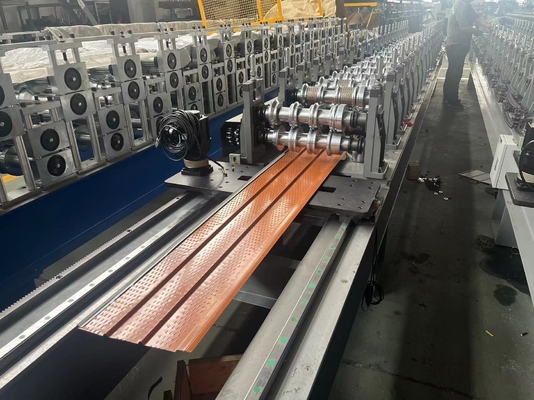

Product display
Soffit Panel Rolling Forming Machine
We can customized machine follow with your design and requirement:
Roll Forming Machine Components:
| No. | Name | Qty |
| 1 | De-coiler | 1 Set |
| 2 | Forming Machine | 1 Set |
| 3 | Hydraulic Cutting Device | 1 Set |
| 4 | PLC Control Box | 1 Set |
| 5 | Hydraulic Pump Station | 1 Set |
| 6 | Production Support Table | 1 Set |
| 7 | Pre-sliding Cutter | 1 Set |
Working Flow:
Uncoiler ----- Molding core ----- Hydraulic System ----- Automatic Control system -----Automatic Shearing Mechanism ----- Products Receiving Tables
Feeder System:
He latest design of feeder system.Stable working and coil not swing.Easy adjusting.
Working width:Within 600mm
Main Roll Forming System:
Driving Type: Chain(common) or Gear or Gearbox;
Forming Model: Integral Forming or Split Forming;
Forming Machine structure: Medium-plate Type(common) or Arch Type or Guide-pillar type;
Roller: 45#
Shaft: 45# 70mm
Motor Power: 4.0kW or 5.5kW or according to the design requirements;
Main Frame: 350# or 400# H-beam steel welded.
Roller details:
Roller processed by CNC-center to make sure high precision and customer can get perfect formed product by our machine.
Hydraulic Cutting Sytem:
Working Model: Hydraulic Cutter (common) or Electric Cutter;
Cutter Blade Material: Cr12.
PLC Control Sytem:
PLC Brand:Delta
Touch screen:Delta
Easy operating
No.20 orders
Hydraulic Oil Pump System:
Hydraulic oil pump with fan cooling system
Power:4kw
Gear pump
