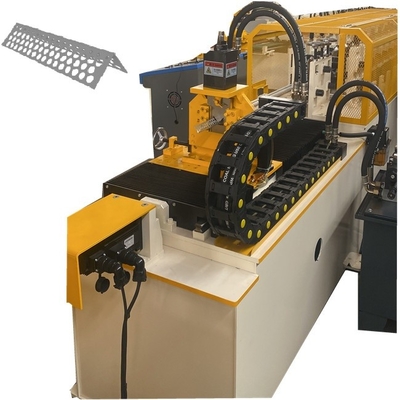

High Speed Galvanised Metal Drywall Corner Bead Steel Gypsum Angle Profile Making Machine

High Speed Galvanised Metal Drywall Corner Bead Steel Gypsum Angle Profile Making Machine

* Automatically forming and cutting at any length with pre-set quantity.

* Signal feedback from encoder showinglength of product.
* The control panel enables to count a total length of finished coil.
* Rollers are alloy steel fabricated by CNC precision machine and hard chromium plated.
* Cutting die is SKD11 steel fabricated by CNC machine, thermal treatment get 55-60HRC.

* Hydraulic system is equipped with a cooling system.

Here are some profiles for your reference:

High Speed Galvanised Metal Drywall Corner Bead Steel Gypsum Angle Profile Making Machine

What are Corner Beads?

Corner beads give drywall installations a precision finish. A corner bead allows outside corners where two materials meet each other to be seamlessly joined without having to repeatedly cut and fill in the gap between them. Not only do corner beads provide a quality finish, they also improve the durability of your drywall. There are a multitude of options depending on the type of finish a project requires.

Metal Corner Beads

Metal corner beads are one of the more regularly used corner beads. Made from galvanized steel, they are rust resistant and provide a pointed corner for a clean finish. Metal corner beads can be installed in a variety of ways, including being nailed or screwed in, stapled or attached with an adhesive.

With slight modifications, they can be molded to curved arches. However, this flexibility also leaves them vulnerable to twisting during installation. The finish of a metal bead can also affect how well they can be mudded in. Certain finishes will perform better than others, which is why some suppliers will add a gypsum laminating paper to the outer face, assisting the finishing product to adhere to the bead.

Features of High speed and fully automatic corner beads rolling forming machine:

1.Working speed with punching can reach 40 to 60 meter per minute.

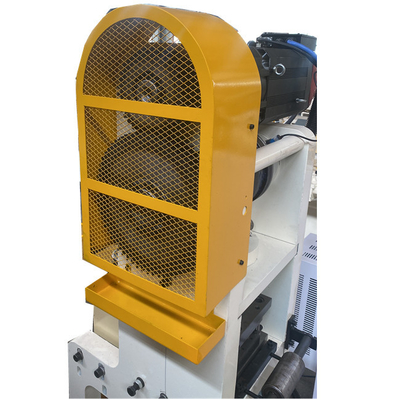

2.Punching machine small, lower noise and 200 times punching per minute.

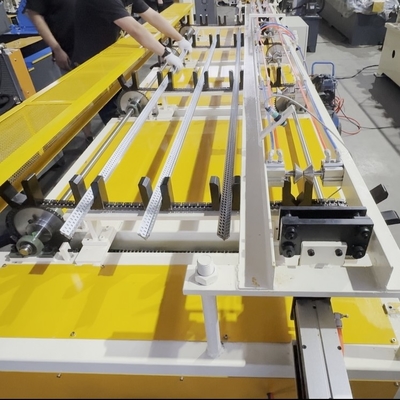

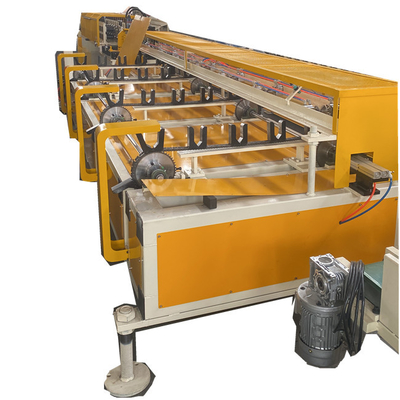

3.With automatic package system.

4.Non-stop shearing to reach the high speed working.

5.Molding frame more durable and stable.

6.Easy to change molds for different types of punching.

7.With protection cover for safety when working.

8.When do the punching, it is neat and clean.

9.When rolling forming, D2 rollers to make sure long time to use.

Angle profile roll forming machine details

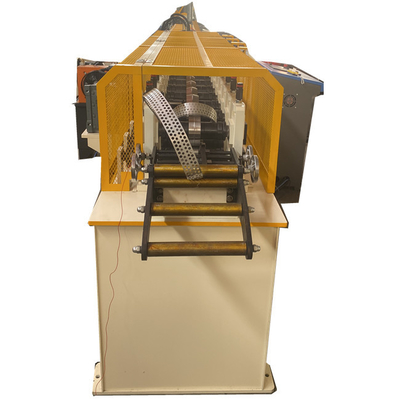

Roll Forming

The material is then passed through a series of rollers and dies that gradually shape it into the desired profile. The rollers and dies are specifically designed to create the unique shape of a fascia profile, including the trough and the various bends and folds.

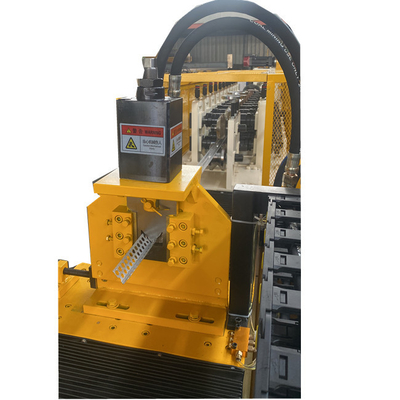

Cutting

At specific intervals, the machine will have a cutting mechanism that can cut the formed profile into the desired lengths. The length control system ensures that each section of the profile is consistent in size.

Contact Panel

Use Mitsubishi or Siemens operating system with stable performance, simple operation, as long as the input length and quantity are automatically produced by the profile forming machine, and the cutting length tolerance is within ± 2mm

Specification

If you need other type design, we can also make for you. By changing punching design, we can lower down the speed and then lower down the machine cost. Or increase the machine working speed by changing the punching type to rotary punching machine.
