Width Adjustable Wall Cladding Profile Making Machine Fully Automatically

                                         Width adjustable wall cladding profile making machine

Width adjustable wall cladding profile making machine is designed to make the wall cladding panel in batch fully automatically. This profile is quite popular in Russian. By this kind of profile, the width could be from 420 to 650mm adjustable. With side hole punching for easy to do the installation but, you can choose add or not. As the length and width both adjustable, you can use it also for ceiling. The nails are hidden in the profile, so the installation will be more beautiful.

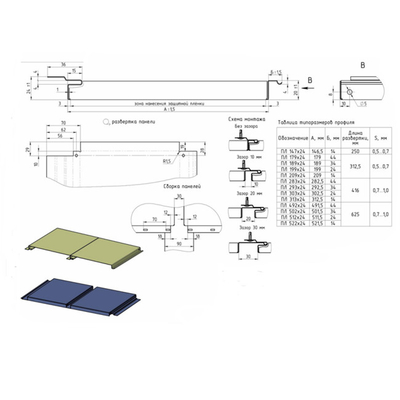

Features of such wall cladding profiles:

• PPGI and GI (if you use 550 MPA ,please tell me in advance), support the most common and popular profiles.
• Support the thickness range:0.4 to 1mm
• Coil width adjustable 198-728mm.
• With installation holes punching.

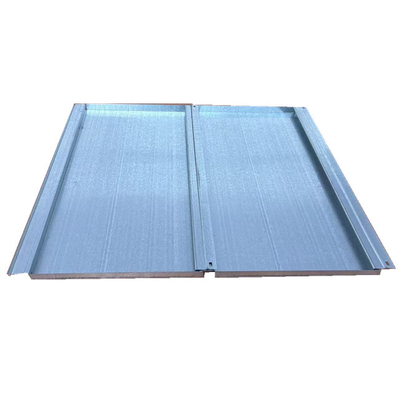

Here is the finished product of wall cladding for your reference:

Width adjustable wall cladding profile making machine working flow:

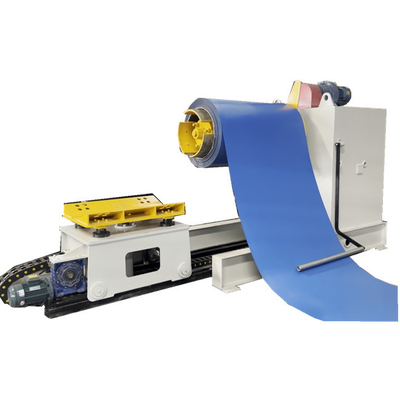

Decoiler-leveling and filming--> punching and rolling forming--> shearing and bending.

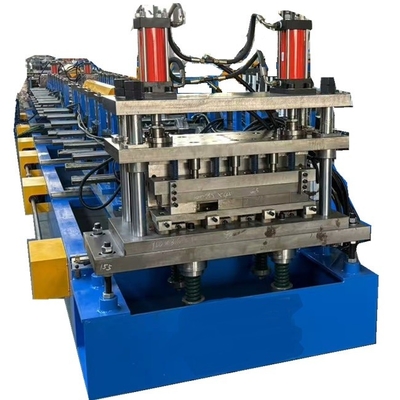

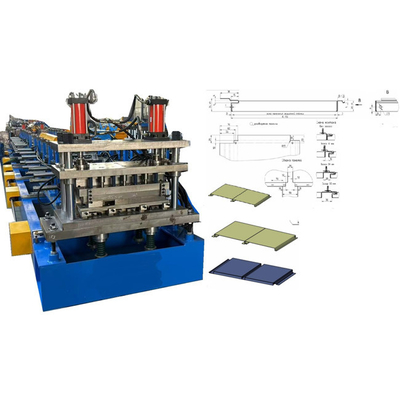

Width adjustable wall cladding profile making machine:

Parameters of Width adjustable wall cladding profile making machine:

More details of each elements of wall cladding profile making machine:

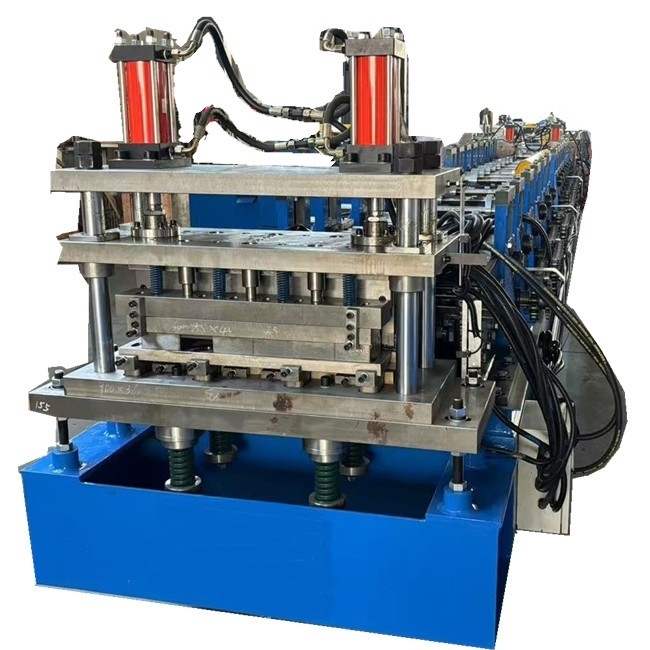

Cut the corner and punching device: it is adjustable according to the width change.

Shearing and bending part of wall cladding profile making machine:

PLC control system of wall cladding profile making machine:

Adopted PLC, transducer, touch panel from Delta to ensure high speed with more stability, high precision and long lifetime. Other electric element is Schneider. Equipped with movable switch, air break, radiator, transformer & electric leakage protector, that element can make sure easy operation convenience and safety.

Here is the Width adjustable wall cladding profile making machine working videos for your reference:
