Customizable Steel Sheet Roll Forming Machine For Reinforcing Panels

Large Image : Customizable Steel Sheet Roll Forming Machine For Reinforcing Panels

Product Details:

Place of Origin:	China
Brand Name:	ZTRFM
Certification:	CE,SGS
Model Number:	upright racking system

Payment & Shipping Terms:

Minimum Order Quantity:	1 set
Price:	Understand discuss
Packaging Details:	Nude with anti-rusting coil
Delivery Time:	45 working days
Payment Terms:	L/C, T/T
Supply Ability:	30 sets per month

Contact Now

Customizable Steel Sheet Roll Forming Machine For Reinforcing Panels

Description

Material Thickness:	2.5-3.5 Mm	Control Mode:	PLC
Rolling Speed:	6-15m/Min	Controlling System:	PLC
Warranty:	1 Year	Cutting Blade Material:	Cr12Mov
Roll Material:	45# High Grade Steel	Loading Car:	With Turnover Function
Hydraulic Power:	5.5kw	Steel Plant Thickness:	0.3-0.80mm
Tile Type:	Colored Glaze Steel	Rolling Shaft:	Shaft Diameter: 75 Mm
Plc Control:	Delta Brand	Weight:	12Tons
Stepping:	Energy Tank
Highlight:	Customizable Steel Sheet Roll Forming Machine , Reinforcing Panels Roll Forming Machine , Customizable Roll Forming Machine

Adjustable Width Linear Shelf Panel Roll Forming Machine

Machine is designed to make shelf panels in batch automatically. This machine rollers can be adjusted to your drawing profile width and length. helf panel roll forming machine can be customized to your specification ideal for making different styles such as adjustable size, punching holes, embossing logo, making light or heavy duty panels and more…

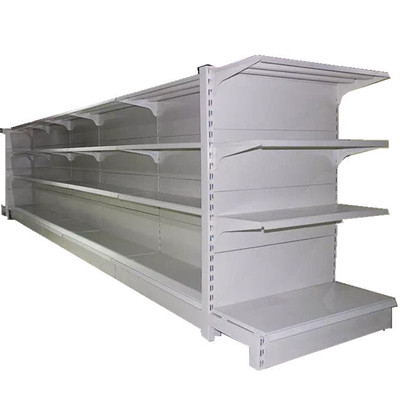

Sample picture for reinforcing shelf panel for heavy duty use

Customizable Steel Sheet Roll Forming Machine For Reinforcing Panels 0

The below profile drawing sample picture shows there are 5 different sizes in width for the finish product:

Customizable Steel Sheet Roll Forming Machine For Reinforcing Panels 1

Machine Production Process

Decoiler -> Leveling -> Servo Coil Feeder -> Hydraulic Punching -> Leveling -> Rollers – > Cutting + Bending -> Collecting Table

Customizable Steel Sheet Roll Forming Machine For Reinforcing Panels 2

Adjustable Width Linear Shelf Panel Roll Forming Machine

Customizable Steel Sheet Roll Forming Machine For Reinforcing Panels 3

Customizable Steel Sheet Roll Forming Machine For Reinforcing Panels 4

Decoiler sample

Usage: It is used to support the steel coil and uncoil the material in a turnable way.

Customizable Steel Sheet Roll Forming Machine For Reinforcing Panels 5

12t hydraulic decoiler specification:

Customizable Steel Sheet Roll Forming Machine For Reinforcing Panels 6

Manual Decoiler Sample Pictures

Customizable Steel Sheet Roll Forming Machine For Reinforcing Panels 7
