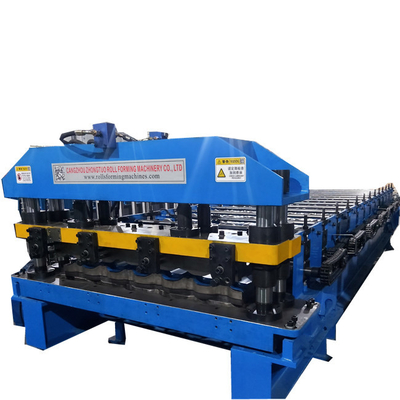

Metal Tile 3D Model Metal Roofing Sheet Rolling Forming Machine

                                      Metal tile 3D model metal roofing sheet rolling forming machine

Metal tile 3D model metal roofing sheet rolling forming machine is designed to make the metal roofing tiles in batch fully automatically. The normal machinable thickness range of our roof panel roll forming machine is 0.3mm-0.5mm, the standard or more used in international market is Gauge 26 (0.45-0.5mm), working raw material is Aluminum, PPGI, Galvanized steel, Galvalume steel etc. Normally for the 3D model metal roofing sheet, the more smaller in range and the more beautiful in the profile shape.

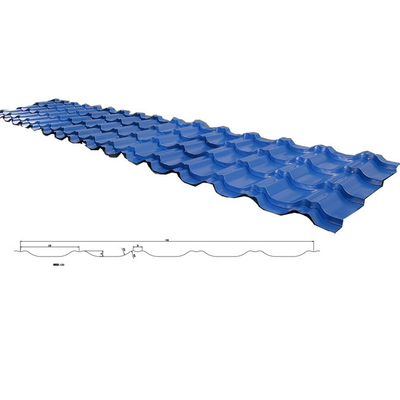

Take the following drawing profile for your reference:

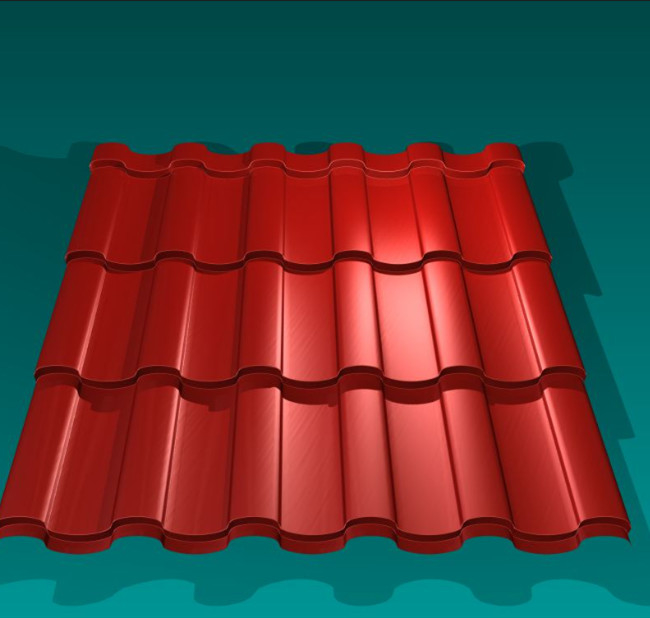

Here are more 3D types for your reference:

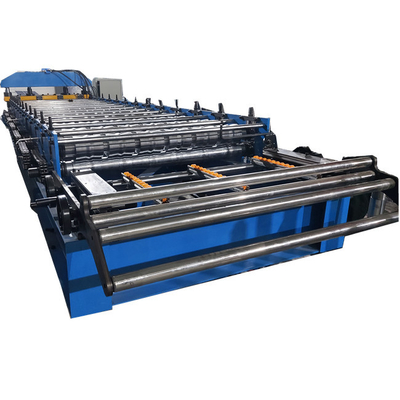

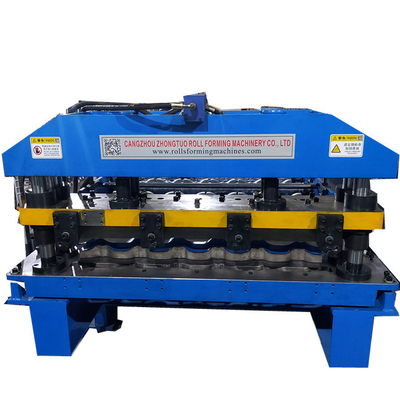

Metal tile 3D model metal roofing sheet rolling forming machine

Or we can design it to the middle plate more economic type:

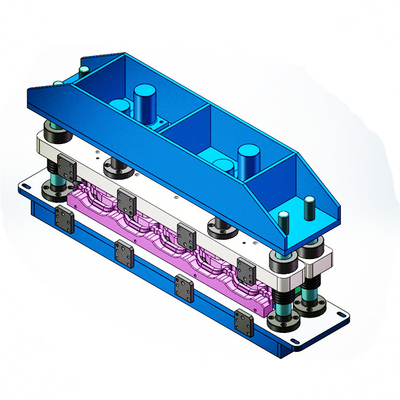

Compared with the 3D mode metal roofing tiles and the normal step tile, the most big difference lie in the shearing system.

It includes a cutter holder, the upper part of the cutter holder with an oil cylinder,

With an upper knife beam, upper cutting knife is fixedly installed on the upper knife beam through the

connecting plate, and the lower cutting knife is arranged corresponding to upper cutting knife.

The lower cutting knife is fixedly installed on the lower knife beam, and the lower knife beam is arranged on the cutting knife frame.

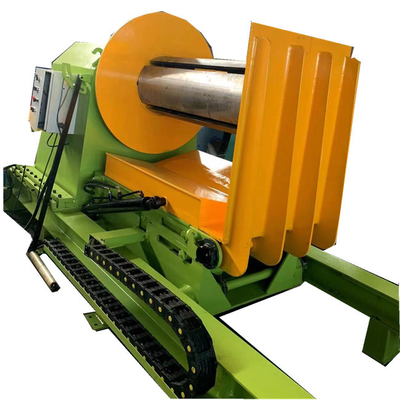

As to the decoiler, you can choose the hydraulic one or manual one depends on your options.
