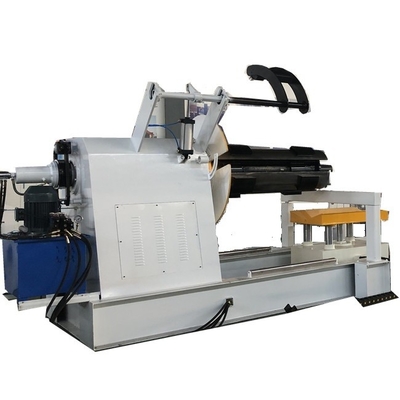

Automatic hydraulic decoiler for metal roofing sheet rolling forming machine
Automatic hydraulic decoiler for metal roofing sheet rolling forming machine is designed for supporting metal rolling machine work. A hydraulic uncoiler, which supports the rolling plate and provides tension to the steel strip, is composed of a frame, a main shaft, an expansion and contraction drum, and a braking device.
a) Main frame: Made of forged and welded bearing seats made of section steel, A3 steel plate, and # 45 steel, and subjected to annealing and qualitative treatment without deformation; Two bearing seats are bored at once to ensure the concentricity of the spindle installation and prevent radial runout.
b) Spindle: Made of a 40Gr round steel drill with a diameter of 85mm through hole, quenched and tempered, and then finely turned. The working face has a diameter of 190mm and a load-bearing capacity of 15 tons.
c) Expansion and contraction shaft: adopt slider type push pull expansion drum form; Four curved plates and a pair of linear cutting sliders, with a diameter increase or decrease Ф 460~ Ф 520; The effective working length is 1300mm, and the overall mandrel ensures the concentricity of the drum during expansion and contraction. The surface of the drum is electroplated with hard chromium.
d) Brake device: adopts pneumatic disc brake components, with adjustable braking force. When parking, the brake is tightened, and when driving, the brake is pulled to ensure that it will not loosen during standby and startup states, to avoid scratching the board surface during loosening.
e) Hydraulic power: push pull expansion and contraction mandrel: hydraulic cylinder model and specification: FA- Ф one hundred and twenty-five × 130mm, using rotary joint oil supply method; Pressure lifting hydraulic cylinder FA- Ф sixty-three × 600 mm.
Automatic hydraulic decoiler for metal rolling forming machine types:
The hydraulic automatic decoiler has the following types:
1. The decoiler with short shaft for purline rolling forming machine.
2. Long shaft for wide coil roofing sheet machine
3. Hydraulic decoiler for slitting or cut to length machine.
4. Automatic decoiler for roofing sheet machine.
By the different functions and then the hydraulic decoiler we can design them like:
1. Fixed type decoiler
2. Movable hydraulic decoiler for many machines.
3. The loading car is fixed type
4. Or X table loading car
5. The decoiler withe pressing arm.
6. The decoiler with the supporting table.
7. The decoiler with the brake.
Advantages of Zhongtuo hydraulic decoiler:
1. Electrical parts: Equipped with world famous brand “Schneider” electrical parts, more safety and reliable.The operation of the equipment is more safe, reliable and stable.
2. Pneumatic braking system: Can stop the rotate of coil immediately when required, avoid unnecessary coil output.
Fast braking, more safer. The matching high-speed forming machine needs faster uncoiling speed, and the pneumatic brake can provide greater braking force. Customers need to be equipped with their own compressed air source.
The rail length we can design according to your requirement like 6 meter 8 meters or others. By the movable type,it could be used together with many rolling forming machines. And then you can save lots of cost and space.
As to the color and design, we can make according to your requirements:
For the hydraulic decoiler we can make it to 5 ton, 7 ton 7 ton , 10 ton 15 ton 20 Ton and more, fully design according to your requirements. For more information, please contact us at any time.
Here is the decoiler with turn over function for your reference:
