1.75”SnapLock Standing Seam Roofing Sheet Rolling Forming Machine For USA

1.75”SnapLock Standing Seam Roofing Sheet Rolling Forming Machine For USA
1.75”SnapLock Standing Seam Roofing Sheet Rolling Forming Machine For USA 1.75”SnapLock Standing Seam Roofing Sheet Rolling Forming Machine For USA 1.75”SnapLock Standing Seam Roofing Sheet Rolling Forming Machine For USA 1.75”SnapLock Standing Seam Roofing Sheet Rolling Forming Machine For USA 1.75”SnapLock Standing Seam Roofing Sheet Rolling Forming Machine For USA 1.75”SnapLock Standing Seam Roofing Sheet Rolling Forming Machine For USA 1.75”SnapLock Standing Seam Roofing Sheet Rolling Forming Machine For USA

Large Image :  1.75”SnapLock Standing Seam Roofing Sheet Rolling Forming Machine For USA

Product Details:
Place of Origin: China
Brand Name: ZTRFM
Certification: CE, SGS
Model Number: 002
Payment & Shipping Terms:
Minimum Order Quantity: 1 set
Price: Negotiable
Packaging Details: Nude with anti-rusting coil
Delivery Time: 60 WORKING DAYS
Payment Terms: L/C, T/T
Supply Ability: 30 SETS/MONTH

1.75”SnapLock Standing Seam Roofing Sheet Rolling Forming Machine For USA

Description
High Light:

efficient steel sheet roll forming machine

,

durable steel sheet roll forming machine

,

user friendly metal roof forming machine

                   1.75”SnapLock Standing Seam Roofing Sheet Rolling Forming Machine for USA

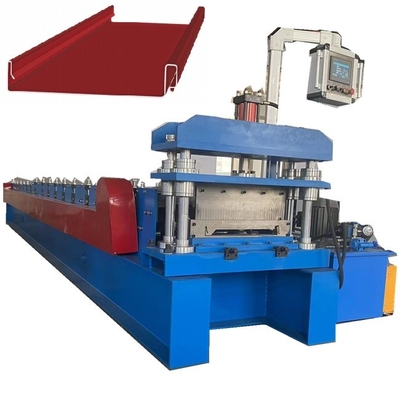

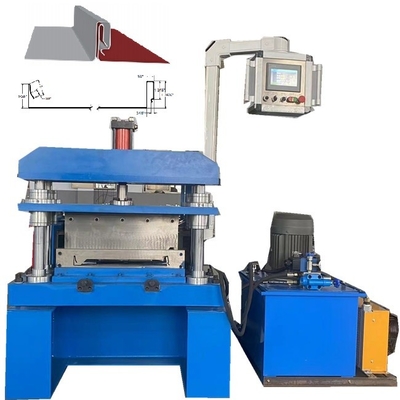

Snap Lock Standing Seam Roofing Sheet Rolling Forming Machine is designed to make the standing seam in batch fully automatically.

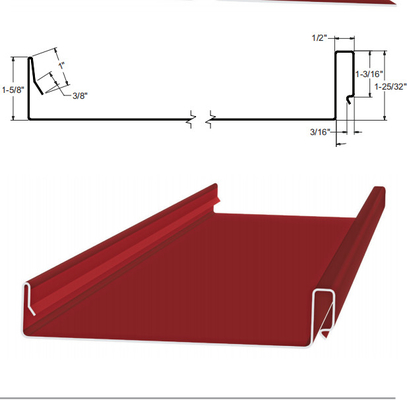

1.75” SnapLock Standing Seam Information:

1.75”SnapLock Standing Seam Roofing Sheet Rolling Forming Machine For USA 0

Panel Notes:

• With this panel engineering, you may opt to use heavier gauge coil and narrower width panels. Clip spacing will not change.

• For slopes lower than a 2/12 roof pitch. Technical Department for further installation requirements.

• This panel uses a 24” coil (Steel) / 22” coil (Aluminum).

• This panel uses 6-1/8” of material to form the panel.

• If you take the square footage of the roof and multiply that by 1.34, the total will be the amount of coil needed to manufacture the panels.

• Clip Relief, Bead Ribs, Striations, and Pencil Ribs do not affect the engineering or function.

• This panel is approved for Weather tight Warranties.

* Available in steel only

1.75”SnapLock Standing Seam Roofing Sheet Rolling Forming Machine

SnapLock Standing Seam Roofing Sheet machine

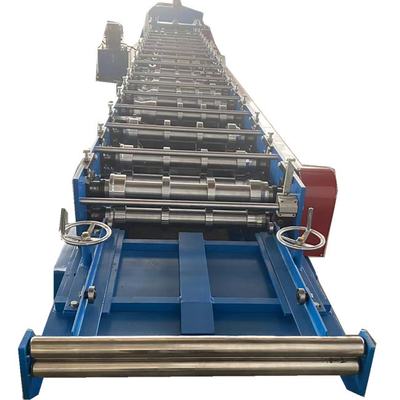

Rolling shaft

Roller

Shaft material:45# STEEL
Shaft diameter: 75 mm
Tempering treatment to prevent deformed and improve hardness
45# steel
Chromed treatment, improve the hardness and prevent abrasion, anti corrosion increase of service life
Rolling station 16 rolling stations
Work speed 20 m/min
Machine structure Steel plate welded structure
Machine basic frame 350# H steel welded
Work power 5.5 kw
Rolling spacer Anti rusty treatment
Pull rod Anti rusty treatment
Transmission By Chains with cover
Noted: please fill the lube in case the chains getting dry

SnapLock Standing Seam Roofing Sheet machine

About the rollers:

Rollers

Advantage: We make grooves to inset two nuts and cushion on the shaft. To avoid shafts loosing when machine works. Due to this design, shafts will be fixed more and more firm when it is working.

About the shaft

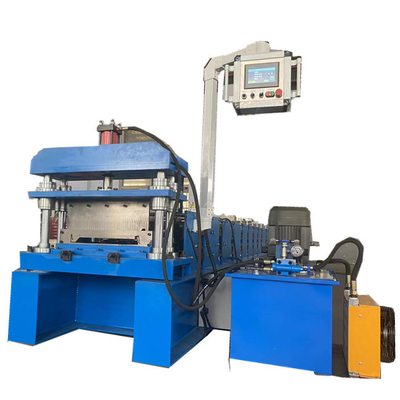

Control station with aviation plug

Control part

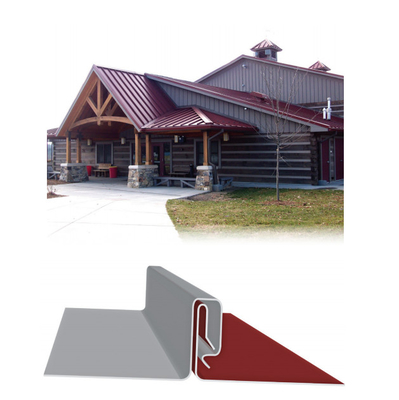

1.75”SnapLock Standing Seam Roofing Sheet Application:

Application



1.75”SnapLock Standing Seam Roofing Sheet Rolling Forming Machine working video for your reference:
