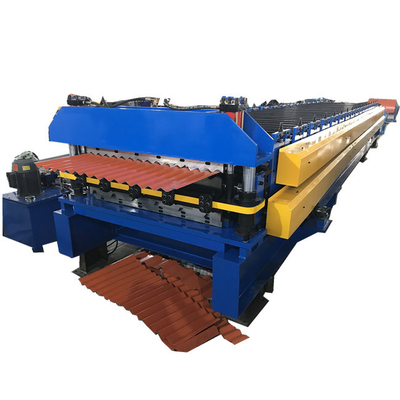

Anti Condensation Roofing Sheets Rolling Forming Machine

Anti Condensation Roofing Sheets Rolling Forming Machine
Anti Condensation Roofing Sheets Rolling Forming Machine Anti Condensation Roofing Sheets Rolling Forming Machine Anti Condensation Roofing Sheets Rolling Forming Machine Anti Condensation Roofing Sheets Rolling Forming Machine Anti Condensation Roofing Sheets Rolling Forming Machine Anti Condensation Roofing Sheets Rolling Forming Machine

Large Image :  Anti Condensation Roofing Sheets Rolling Forming Machine

Product Details:
Place of Origin: China
Brand Name: ZTRFM
Certification: CE, SGS
Model Number: ZTAC
Payment & Shipping Terms:
Minimum Order Quantity: 1 set
Price: under discuss
Packaging Details: Nude with anti coil coating and plastic cover
Delivery Time: 45 working days
Payment Terms: L/C, T/T
Supply Ability: 30 sets per month

Anti Condensation Roofing Sheets Rolling Forming Machine

Description
Usage: Anti-Condensation Roofing Sheets Making Machine Working: Rolling Forming Machine
Thickness: 0.3 To 0.6mm Speed: 15 To 20 Meter Per Minute
High Light:

efficient steel sheet roll forming machine

,

durable steel sheet roll forming machine

,

user friendly metal roof forming machine

                                Anti-Condensation Roofing Sheets rolling forming machine

Anti-Condensation Roofing Sheets rolling forming machine is designed to make the metal roofing sheets with the anti-condensation function in batch fully automatically. Despite the quick installation and superb longevity offered by most metal roofing sheets, they are vulnerable to condensation build-up and water droplets forming. Over time this can result in dampness, black mould, unpleasant odors, and decaying framework. As a result, any belongings being stored beneath will soon become damaged and the structure can even become unstable.

As these roof sheets are typically used on garden sheds, livestock buildings, and commercial warehouses we have made them available in the two most popular profiles for these applications. You are, therefore, able to buy both corrugated and box profile sheets with an integrated anti-condensation membrane.

Compared with the normal PPGI, we add one more layer of felt under it. Here are some two popular of corrugated and box profile sheets for your reference. But we can customize any kind of drawing profile based on your needs.

Box profile drawing

corrugated  roofing sheet machine





Felt information:

It is a new type of needle punched polyester non-woven fabric, produced by amending processing and special technology. From the production processing, the technical requirements are much higher than the ordinary non-woven fabric; At the same time, from the quality of view, it also has the functional characteristics that other non-woven fabrics do not have, with high moisture absorption, strong drainage and high flame retardant.

roofing sheets



Anti-Condensation Roofing Sheets rolling forming machine

Anti-Condensation Roofing Sheets rolling forming machine

Machine working process:

Uncoiling → Feeding material into machine by device→Roll forming → Auto cutting →Products receiving table



Working flow



Item Description of Item Unit Quantity
1 5T manual decoiler set 1
2 Main roll forming machine. With filming device set 1
3 PLC control station set 1
4 Hydraulic oil station set 1
5 Product receiving table set 1

Felt Coil width: 1250mm
Structure: Steel channel welded for the basic frame
Usage:Remove the plastic film of the felt,and glue the felt and steel plate together

Fliming device

Compared with normal PPGT roofing sheet machine, Anti-Condensation Roofing Sheets rolling forming machine with the following features:

1. It can support both normal PPGI, and PPGI with felt.

2. It is strong in shaft, big in rollers and have more rolling stations.

3. Use separated molding rolling process.

4. The profile made by such machine no scratching, no bending.

More details checking from the following pictures:



  • Leveling part with the stainless rollers and with the manual cutter.

Anti-Condensation Roofing Sheets rolling forming machine leveling parts

  • The motor with brake and then it can save energy and protect the rollers. You can let one layer working.
  • As to the shearing, strong cutter holder and thick cutter for shearing more powerful and more longer time to use.

Anti-Condensation Roofing Sheets rolling forming machine leveling parts

Anti-Condensation Roofing Sheets made by this machine:

Anti-Condensation Roofing Sheets rolling forming machine shearing parts

Anti-Condensation Roofing Sheets rolling forming machine working videos for your reference:
