Product Details:
|
| Rolling Number: | 22 Roller Station | Shaft Diameter: | 90mm |
|---|---|---|---|
| Speed: | 45 Meter Per Minute | Bearing: | Chinese Famous Brand Harbin |
| Work Power: | 7.5kw Two Motors So Total Power 15kw | Control Methold: | PLC |
| Product Automatic Stacker: | Optional | ||
| High Light: | 45m/Min Corrugated Sheet Making Machine,22 Station Roof Sheet Making Machine,45m/Min Roof Sheet Making Machine |
||
High speed corrugated roof sheet making machine
High speed corrugated roof sheet making machine can be used to make the metal roofing sheets in the speed of 45 meter per minute. When comes to corrugated roof sheet making machine, you may have the following questions or ideas?
1. What is Corrugated metal roofing sheet & machine
2. Horizontal round wave machine & standard metal roofing sheet machine
3. Normal speed corrugated metal roofing sheet machine 15 to 25 m/min
4. High speed corrugated metal roofing sheet machine 20 to 45m/min
6 Related elements of optional:
Hydraulic decoiler 5 ton, 7 ton or 10 ton.
Automatic stacker
7. When for 1.0mm thicker coil Corrugated metal roofing sheet machine, we call it as heavy duty type. Noramlly it is for Specail function with crimping for granary.
8. Corrugated metal roofing sheet machine with logo punching function, how to make it?

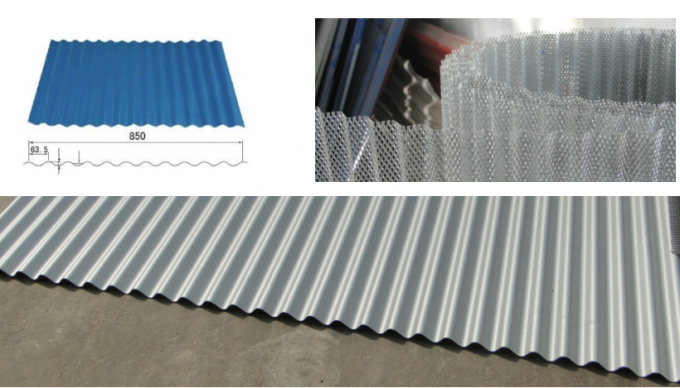

Here we take a random drawing profile to show you the high speed corrugated roof sheet making machine and others we will introduce one by one on our website.
High speed corrugated roof sheet making machine:
| No. | Name | Unit | Quantity | Remark |
| Part 1 | 7 T decoiler with loading car | set | 1 | Automatic |
| Part 2 | Main roll forming machine | set | 1 | Gear box drive |
| Part 3 | PLC control station | set | 1 | Delta brand |
| Part 4 | hydraulic system | set | 1 | For cutting |
| Part 5 | Product automatic stacker | set | 1 | 6m length |
Hydraulic decoiler (You can choose 5 ton or 10 ton with loading car or without)
A. Supporting the coils and doing uncoiling. The capacity is 10 Tons(max).
B. It adopts the hydraulic oil cylinder to make the decoiler expandable and fit to the inner diameter of coils. It is equipped with the cantilever.
C. Motor drive the coils running and can do forward and reverse running as well as do the decoiling with tension.
Main rolling forming machine
Rolling number: 22 stations for profile (separated mold rolling)
Rolling type: separate rolling design concept, it can release internal stress from the sheets, then the sheet will be in
good shape and high precision.
Work speed:0-45 m/min
Machine structure:Iron casting Vertical arch frame structure
Machine basic frame:Hot rolled H-beam. We will make diagonal bracing inside the frame, to strength the structure and keep the whole plate in same horizontal plane
After the whole welding, vibration is used to weld the stress. After large-scale planer machining, the horizontal and rigidity of the frame are ensured.
Bearing:Chinese famous brand Harbin
Work power:7.5kw two motors so total power 15kw
Why it can working in the speed of 45 meter per minute?
1. Use strong shaft with big mold and then it can rolling in big distance.
2. Use two motors for transporting power in the fast way.
3.Molding frame with gearbox transmission, so even if in high speed, it can be quite steady.
4. Use the servo motor tracking system, non-stop shearing.
5. So it needs automatic stacker and hydraulic decoiler.
Here is the high speed corrugated roof sheet making machine working video for your reference:
