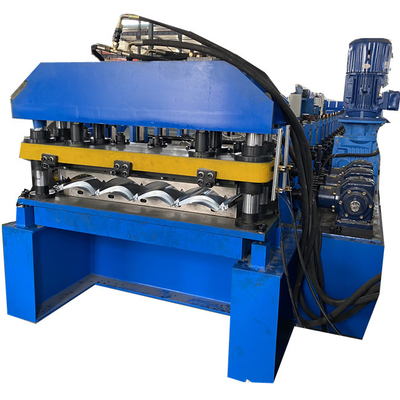

Metal 0.8mm Glazed Tile Roll Forming Machine For Ppgi

Metal 0.8mm Glazed Tile Roll Forming Machine For Ppgi
Metal 0.8mm Glazed Tile Roll Forming Machine For Ppgi Metal 0.8mm Glazed Tile Roll Forming Machine For Ppgi Metal 0.8mm Glazed Tile Roll Forming Machine For Ppgi Metal 0.8mm Glazed Tile Roll Forming Machine For Ppgi Metal 0.8mm Glazed Tile Roll Forming Machine For Ppgi Metal 0.8mm Glazed Tile Roll Forming Machine For Ppgi

Large Image :  Metal 0.8mm Glazed Tile Roll Forming Machine For Ppgi

Product Details:
Place of Origin: China
Brand Name: ZTRFM
Certification: CE, SGS
Model Number: 002
Payment & Shipping Terms:
Minimum Order Quantity: 1 set
Price: Negotiable
Packaging Details: Nude with anti-rusting coil
Delivery Time: 60 WORKING DAYS
Payment Terms: L/C, D/A, D/P, T/T
Supply Ability: 30 SETS/MONTH

Metal 0.8mm Glazed Tile Roll Forming Machine For Ppgi

Description
Raw Material: GI&PPGI Material Thickness: Max To 0.8mm
Feeding Width: 1000mm Sheet Cutting Length: Adjustable
Decoiler: Manual Or Hydraulic Speed: 7 To 12 Meter Per Minute
Stepping: Energy Tank
High Light:

0.8mm glazed tile roll forming machine

,

ppgi glazed tile roll forming machine

,

ppgi glazed tile forming machine

                                                  Metal glazed tile roll forming machine

Metal glazed tile roll forming machine is designed to make the metal step tile in batch fully automatic way. As the rolling forming machine is customized according to your customer requirements, this one we design in a best way, using the gearbox as transmission, molding frame and with energy tank to make sure it can work in a high speed and work quite a long time.

There is only one but key difference between a metal glazed roof tile and a regular metal roof panel: Steps! Generally speaking, a regular metal roof panel with steps is called a metal glazed roof tile! Therefore the key difference between a regular metal roof panel roll forming machine and a glazed tile roll forming machine lies at this situation that there is an extra hydraulic pressing equipment on a step tile roll forming machine to press steps on the roll formed roof panels. Take the following type for your reference:

Raw Material for Metal Roof Roll Forming Machine

Material type: Color coated Steel, Aluminum sheet

Thickness: 0.4-0.6(mm)

Yield Strength: 230-350MPa optional

Width: 1200/1220/1250(mm)

Drawing profile of step tile

finished product of step tile



Metal glazed tile roll forming machine:

step tile rolling forming machine

Machine working layout for your reference:

Working flow of step tile





Features Metal glazed tile roll forming machine

●This metal roof making machine series is for continuously roll forming and pressing step tiles sheets. The step length of these steel roofing machines can be set up and the depth of each step is adjustable. The cutting blade holder, we use the strong plate to make sure shearing powerful and long time to use.

stepping and shearing part

●The production speed of this series is about 7 to 12 meter per minute. Similar to the roof tile roll forming machines in stock, this metal roofing machine series also possess multiple patents

under CE Certified and EUROPEAN quality standards. For making sure the shearing and stepping fast and powerful,we use the energy tank:

Energy tank

● Prompt delivery of this model is available. The machine we design uses the strong molding frame of thickness 45mm. Strong shaft for long to use.

step tile roofing sheet machine

Now let us check the glazed tile overlapping effect:

step tile overlapping

We can promise, the machine will not scratch the surface of the coil and all the step at the same height. By this way, when you do the installation on the roofing, it looks more beautiful.



Now let us check the machine working video status for your reference:



<

This machine we have sent to Kenya, here are more popular types of glazed tile for your reference.

Popular design steo tile in Kenya

step tile drawing profile in Kenya
