Steel PPGI Sheet Rolling Machine 5.5kw 20m/ Min Roof Edgings Trim Profiles

Description
Function: For Roofing Raw Material: Steel, PPGI Or Other
Material Thickness: 0.4-0.6 Mm Roller Material: GB-Cr12
Rolling Station: 16 Stations Work Speed: 15-20 M/min
Machine Structure: Vertical Memorial Arch Frame Work Power: 5.5kw
High Light:

Steel PPGI Sheet Rolling Machine

,

20m/ Min Sheet Rolling Machine

,

5.5kw Metal Rolling Machine

                                            Roof Edgings and Trim Profiles F5 rolling machine

Roof Edgings and Trim Profiles F5 Rolling Machine is designed to make roof edging and trim profile like F5 by rolling forming machines. The edging and trim products include drip edge, slag stop, drip cap, W and V valley flashing, ridge roll and brick molding. A variety of colors are available, consult our product catalog for details. The roof edging and trim is made using only the finest copper, aluminum and steel.

The trim F profile has the following features & benefits

Protects against water infiltration.

Available in painted aluminum, mill finish aluminum, copper, galvanized steel and painted steel.

Offered in a wide variety of profiles.

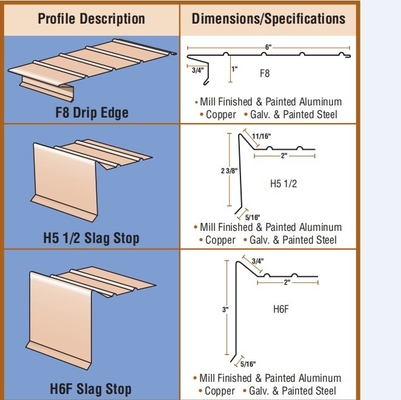

Take the following drawing profile for your reference:

Roof edgings and trim profile drawing

Roof Edgings and Trim Profiles F5:

Roof Edgings and Trim Profiles F5

Roof Edgings and Trim Profiles F5

Roof Edgings and Trim Profiles F5 rolling machine:

Roof Edgings and Trim Profiles F5 rolling forming machine

Roof Edgings and Trim Profiles F5 rolling machine some basic parameters for your reference.

Series Details Parameter Comment
Material Raw material Steel Customer confirmed
Material thickness 0.4-0.6 mm
Decoiler Structure Manual passive type The standard one to match the production line
Single head type
Loading capacity 1.5 Tons
Coil inner diameter 450-550 mm









Roll forming machine

Guiding device Placed on the machine by seller
Rolling shaft material 45# STEEL
Shaft diameter 50 mm
Roller material GB-Cr12
Rolling station 16 stations
Work speed 15-20 m/min
Machine structure Vertical memorial arch frame
Machine basic frame Steel plate welded
Bearing Roller bearing Famous brand of Harbin
Work power 5.5 kw
Transmission By gear With cover
Safety cover available



Appearance

Good appearance with no burrs in steel body nor traces of rust or defects in painting.

Good electrical and hydraulic cable organization Car painting make the machine more glossy

We confirm each detail can match the standard, ensure the machine is 100% new!
Decoiler, we can change to hydraulic one if you need.
Rolling forming machine rollers Roller of rolling machine
High quality rollers are the key points to make the good quality machine.



Where to use the Roof Edgings and Trim Profiles F5:

Roof Edgings and Trim Profiles F5 usage

Roof Edgings and Trim Profiles F5 usage

Here is the Roof Edgings and Trim Profiles F5 working video for your reference:
