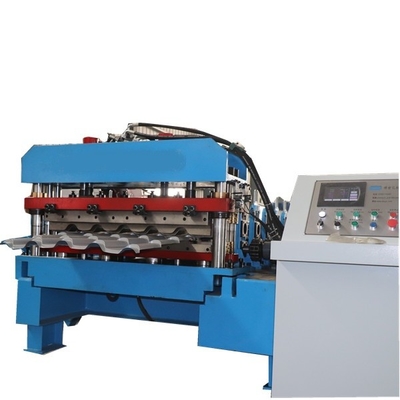

12m/ Min Step Tile Machine PPGI PPGL 11kW Sheet Roll Forming Machine

12m/ Min Step Tile Machine PPGI PPGL 11kW Sheet Roll Forming Machine
12m/ Min Step Tile Machine PPGI PPGL 11kW Sheet Roll Forming Machine 12m/ Min Step Tile Machine PPGI PPGL 11kW Sheet Roll Forming Machine 12m/ Min Step Tile Machine PPGI PPGL 11kW Sheet Roll Forming Machine

Large Image :  12m/ Min Step Tile Machine PPGI PPGL 11kW Sheet Roll Forming Machine

Product Details:
Place of Origin: China
Brand Name: ZTRFM
Certification: CE. SGS
Model Number: Roofing sheet machine
Payment & Shipping Terms:
Minimum Order Quantity: 1 set
Price: Negotiable
Packaging Details: Nude package with anti oil
Delivery Time: 45 working days
Payment Terms: L/C, T/T
Supply Ability: 30 set per month

12m/ Min Step Tile Machine PPGI PPGL 11kW Sheet Roll Forming Machine

Description
Decoiler: Manual Or Hydraulic Electric Power: 11kW-15 KW
Rolling Speed: 8-12m/ Min Machine Weight: 10.0-14.0 Tons
Station Quantity: 18 Raw Material: 0.2-0.8 Mm (BMT)
Coil Width: 914-1450 Mm Material: GI, GL, PPGI, PPGL
High Light:

12m/ Min Step Tile Machine

,

PPGI PPGL Step Tile Machine

,

11kW Sheet Roll Forming Machine

                                                       High speed step tile roofing sheet rolling forming machine

This high speed step tile roofing sheet machine can reach the working speed is around 8 to 12 meter per minutes. It uses the servo technology to increase the roll-forming speeds up , enhance the precision stamping step, and allows for smooth operation while saving on electricity usage. Meanwhile at the shearing and stamping part, we use the whole mold framing design.

It is easy operation through a friendly “human-machine” interface with multiple language settings, optimizing setting-feature on the multi-color touch screen. Its modern design is structurally strong and stable.The rollers and molding system are of a high quality, standardized designed, machined on modern CNC machines and undergo rigorous testing. As a result, the waveform is very sharp and synchronized.

Here I will take the following drawing profile for your reference, actually all step tile design could be made to this type rolling forming machines.

Drawing profile of the step tile

Machine specialization:

Electric power: 11 kW-15 kW

Rolling speed: 8-12 m/min

Machine Weight: 10.0-14.0 tons

Dimensions (L x W x H): (9-12) m x 1.8 m x 1.8 m

Station quantity: 18-24 stations

Raw material:

Steel Thickness: 0.2-0.8 mm (BMT)

Coil Width: 914-1450 mm

Material: GI, GL, PPGI, PPGL

Material Strength: G300-G550

Production specification



Control system: PLC, Touch Screen HMI

Rolling transmission: Servo motor

Cutting and pressing system

Hydraulic: Optional

Entrance shearer: Tolerance of steps ± 0.5 mm

Length Tolerance ± 2.0 mm

High speed step tile roofing sheet rolling forming machine design:

High speed glazed tile machine

High speed step tile roofing sheet rolling forming machine working flow:

The machine is composed by the following elements.



No. Name Unit Quantity Remark
Part 1 5 T decoiler set 1 manual
Part 2

Main roll forming machine

with stepping and shearing

set 1 Chains drive
Part 3 PLC control station set 1 Delta brand
Part 4 hydraulic system set 1 YUKEN STANDARD
Part 5 Product collect table set 1 manual/3 m length




Advantages of High speed step tile roofing sheet rolling forming machine:

1. The machine uses the gearbox as transmission for small noise and higher speed .

High speed step tile

2. As to the shearing and stepping pillar, we use the pillar frame, strong holding plate , one thing it can protect the cutting blade to use for a long time. Meanwhile it can make the machine looks more beautiful.

Leveling part of high speed step tile machine

3. We design it with molding frame to make sure even if when working in high speed, the machine works still quite steady.

  • Leveling roller: the leveling roller and guiding rollers are moving with stainless material, by this way it will not damage the surface of the coil.

Gearbox of high speed step tile

For the high speed step tile rolling forming machine, we had better choose the hydraulic decoiler, to higher speed like the following, 5 ton, 7 ton, 10 ton all okay. As to the loading car, you can choose to add or not.

Hydraulic decoiler of 7 ton



Here are more popular step tile drawing profile for your reference:

Kenya step tile drawing profile



For this machine, if you want to know more information, please contact us at any time.

Contact Details
RFM Cold Rolling Forming Machinery

Contact Person: admin

Send your inquiry directly to us (0 / 3000)
