Product Details:
|
| Process Thickness: | MAX 1.2mm | Coil Width: | 1250mm |
|---|---|---|---|
| Speed: | 15 To 20 Meter Per Minute | Name: | Simple Cut To Length Machine With Slitting Function |
| High Light: | slitting cut to length machine,1250mm cut to length machine,slitting steel cut to length machine |
||

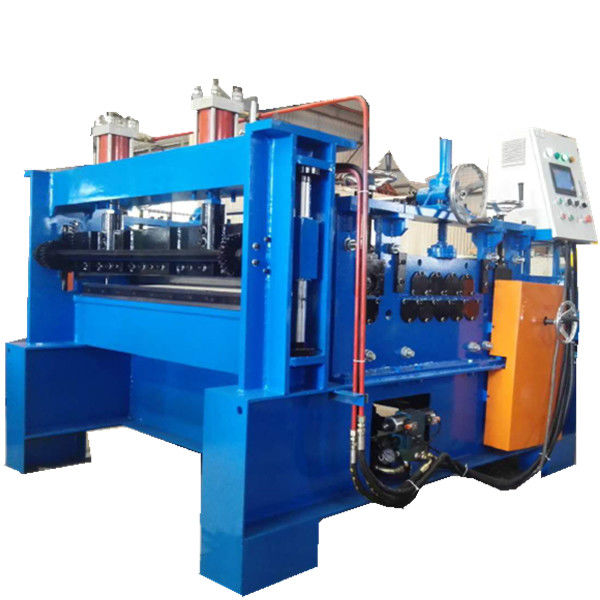

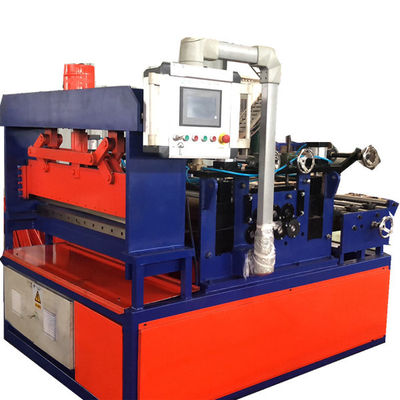

Simple cut to length machine with slitting function
Here I will introduce one type cut to length machine with the slitting function for the thin sheet.
This equipment is used for cutting the coil to the specified sheet, sometime, slitting to the specified width also, it is composed by uncoiling, leveling, and automatic length measuring and cutting. Electrical controlling by AC variable frequency and servo control, which has better length precision and efficiency. Applicable Materials:Tinplate, silicon steel, aluminum, copper, stainless steel and galvanized steel, etc. The one I introduce here could be used to process the thickness from 0.2 to 1.2mm and the coil width to 1.5 meter width.
The machine cutting speed can reach 15 to 20 meter per minute.

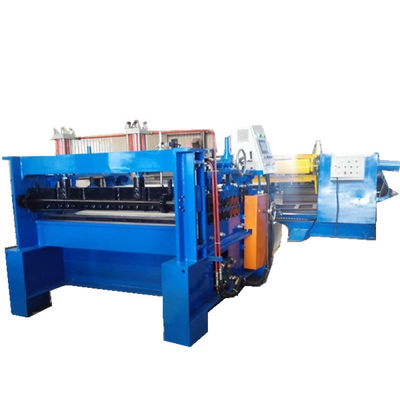

Simple cut to length machine with slitting function working flow for your reference:
Simple cut to length machine with slitting function more details functions for your reference:
| 7 TON Hydraulic Decoiler with Trolley |
Decoiler form : 7 tons hydraulic decoiler with trolley ID of feeding Coil: ø 508mm, or ø 610mm Max Width : 1500mm Max. Weight : 7T Material : Aluminum and zinc plate galvanized plate color steel plate low carbon steel. Main power is : 3kw. Hydraulic power : 2.2 kw. (JIEJIA BRAND MOTOR FAMOUS IN CHINA) Voltage, Frequency, Phase: 380 V, 50 Hz, 3Phase (this is can depend on customer request) |
|
|
| 1500*3mm Straighten leveling with cut to length machine |
Input : 1250mm Thickness : 0.5-1.0mm GI, SS, Aluminum, film coated sheet Rollers : 4 up 5down,2 input Shaft: Φ110mm Wall panel: 25mm, A3 400H steel frame Power: 11 kw (JIEJIA BRAND MOTOR FAMOUS IN CHINA) Speed: 16m/min Hydraulic power: 5.5 kw. Driven : Chain Cutting blade and slitting blade: Cr12 Slitting : 6 pcs The machine can straighten leveling then cut to length Voltage, Frequency, Phase: 380 V, 50 Hz, 3Phase (this is can depend on customer request) Solenoid valve: YUKEN |
|
|
| Cutting |
Cutting motion: The main machine automatically stops and then cutting. After the cutting, the main machine will automatically start. Material of blade: CR12 , cut form down to up. Length measuring: Automatic length measuring Tolerance of length: 10+/- 1.5mm |
|
Metal slitting part will be like this . |
|
| PLC control system |
Voltage, Frequency, Phase: 380 V, 50 Hz, 3Phase (this is can depend on customer request) Control panel: Button-type switch and touch screen PLC : KAUTO Touch screen :WEINVIEW (TAIWAN) Frequency converter: DELTA |
|
|
| Color of the machine | Dark green(please reference the color for confirming |
This production line is for the thin sheet later, in our website, there are more type and mode cut to length machine for your reference: like thickness from 1 to 3.mm, from 3 to 6.0mm and others, all the cut to length machine could be customized according to customer requirements.
