Product Details:
|
| Type:: | Tile Forming Machine | Production Capacity:: | 8-12m/min |
|---|---|---|---|
| Power(W):: | 7kw | Dimension(L*W*H):: | 7.5*1.35*1.2m |
| Voltage:: | 380v 50HZ 3 Phase | Controller:: | PLC |
| Roller Driven Type:: | Chain Transmission | Steel Plant Thickness:: | 0.3-0.80mm |
| Warranty:: | 1 Year | ||
| Highlight: | glazed tile roll forming machine,roof tile roll forming machine |
||

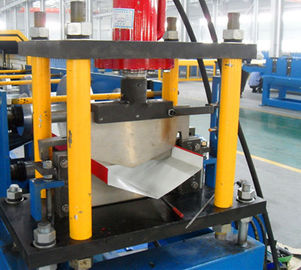

Roofing End Cap Ridge Cap Roll Forming Machine For Building 8-15 M/Min
Description:
| Configurations | Manual Uncoiler ,Guiding Platform ,Coil Strip Leveler ,Main Machine Of Roll Forming ,Electric-Motor, Glazed Tile Pressing Device ,Cutting Device ,Hydraulic Station ,PLC Control, Supporter Table. |
| Control System | PLC Delta Inverter |
| Main Frame | 400mm H-Beam |
| Main Power | 4 kw |
| Pump Power | 3 kw |
| Power Supply | 380V, 3-Phase,50Hz |
| Forming Speed | 4-8m/min |
| Roll Station | 14 stands |
| Roller Diameter | 65mm |
| Hydraulic Pressure | 10-12MPa |
| Forming Size | 312mm |
| Feeding Thickness | 0.27-0.8mm |
| Feeding Width | 600mm |
| Backboard Thickness | 18mm |
| Chain Size | 33mm |
| Cutter Standard | Cr12 |
| Roller Standard | Cr12 |
| Cr-Plating Size | 0.05mm |
| Overall Size | 6000×1000×1200mm |
| Total Weight | 3T |
Automatic system
| Pump station | 3kw |
| PLC | Panasonnic |
| Transducer | Twiwan"Delta" |
| Encoder | Wuxi's "REP"or "XINYA" |
| Switch | "CHINT" or "DELIXI" |
Component line
| NO | Name | Unit | Qty |
| 1 | Man-made decoiler | set | 1 |
| 2 | Main machine for roll forming | set | 1 |
| 3 | Control system | set | 1 |
| 4 | Hydraulic system | set |
1 |
Packaging & Delivery
| Packaging Details | machinery manufacturer new design steel glazed tile roll forming machine from china 1.Tighten to container with steel wire rope and welded angel iron. 2.Main forming machine and unciler is naked (if you need we can also packed with water-proof plastic) 3.PLC control system and moter pump are packed with water-proof plastic coverage. |
|---|---|
| Delivery Time | 30 days after your pre-deposit |
FAQ about roll forming machine :
Q:How is this machine's service life?
A:In the normal maintenance,the service life at least 8 years.
Q:How to maintenance?
A:If using frequently,best coating lubricant on the chain and two ends of the shaft every month,replace the hydraulic oil every 1-2 years.
Q:What can you do if the machine broken?
A:Our machine's warranty period is 1 year,if the broken parts can't repair,we can free send the new parts replace the broken parts to you except the solenoid valve,the solenoid valve you must pay the express cost yourself.if after warranty period,we can through negotiationfor to solve the problems,and we supply the technical support for the whole life of the equipment.
Q:Can you be responsible for transport?
A:Yes,please tell me the destination port or address.we have rich experience in transport.
