Product Details:
|
| Type:: | Highway Guardrail Production Line Roll Forming Machine | Dimension(L*W*H):: | 9800*1600*1500 Mm |
|---|---|---|---|
| Weight:: | 12Tons | Productivity:: | 6-10m/min |
| Material Thickness:: | 2.5-3.5 Mm | Voltage:: | 380V-50HZ-3P (As Requested) |
| Warranty:: | 12 MONTH | Frame Material: | 300 H-high Grade Steel |
| Deliver Time:: | 40 Days | ||
| High Light: | guardrail roll forming machine,highway guardrail forming machine |
||

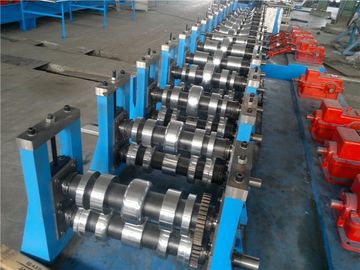

Highway guardrail roll forming machine with 3 wave and 2 waves
Components of highway guardrail roll forming machine:
| No. | Name | Unit | Quantity |
| 1 | 5T decoiler | set | 1 |
| 2 | Guiding device | set | 1 |
| 3 | Leveling device | set | 1 |
| 4 | Punching system | set | 1 |
| 5 | Main roll former | set | 1 |
| 6 | PLC control station | set | 1 |
| 7 | Hydraulic oil pump | set | 1 |
| 8 | Cutting system | set | 1 |
| 9 | stacker | set | 1 |
Process flow:
Decoiling--feeding---forming---cutting--product run-out table
parameters of highway guardrail roll forming machine
| Series | Details | Parameter |
|
Roll forming machine |
Guiding&leveling device |
Placed on the machine by seller |
| Shaft numbers:11pcs | ||
| Shaft diameter:80mm | ||
| Shaft material: 45# steel | ||
| Drive power:5.5kw | ||
| Rolling shaft material | 45# STEEL | |
| Shaft diameter | 90mm | |
| Roller material | GB-Cr15 with heat treatment | |
| Rolling station | 15 stations | |
| Machine frame | Cast iron vertical structure | |
| Machine body | 400# H steel welded | |
| Bearing | Chinese famous brand Harbin | |
| Work power | 22kw | |
|
Control system |
Frequency brand | Delta from Taiwan |
| PLC brand | Delta from Taiwan | |
|
Hydraulic system |
Work type | Hydraulic |
| Punch mode | Four pillar hydraulic powered punching system | |
| Driving method | By Cylinder | |
| Motor power | 22kw | |
| Mold material | GB-Cr12 | |
| Mold quantity | 2 sets | |
| Punching frame | 1 set | |
| Press power | 80T | |
| Cutting length tolerance | ±1.5mm |
