Product Details:
|
| Type:: | Highway Guardrail Production Line Roll Forming Machine | Dimension(L*W*H):: | 9800*1600*1500 Mm |
|---|---|---|---|
| Weight:: | 12Tons | Productivity:: | 6-10m/min |
| Material Thickness:: | 2.5-3.5 Mm | Voltage:: | 380V-50HZ-3P (As Requested) |
| Warranty:: | 12 MONTH | Frame Material: | 300 H-high Grade Steel |
| Deliver Time:: | 40 Days | ||
| High Light: | guardrail roll forming machine,highway guardrail forming machine |
||

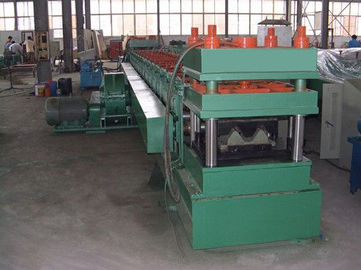

Highway Guardrail Roll Forming Machine Hydrualic Punching Cutting
Working flow
Decoiler-----feeding----- leveling ------roll forming ------ punching-----cutting----output table
Machine Component
| De-coiler | 1 set |
| Leveling device | 1 set |
| Forming machine | 1 set |
| punching device | 1 set |
| Cutting device | 1 set |
| PLC control box | 1 set |
| Hydraulic pump station | 1 set |
| Production support table | 1 se |
Processing flow of Guardrail Highway Roll Forming Machine
Components of Guardrail Highway Roll Forming Machine
| No. | Name | Unit | Quantity |
| 1 | 5T decoiler | set | 1 |
| 2 | Guiding device | set | 1 |
| 3 | Leveling device | set | 1 |
| 4 | Punching system | set | 1 |

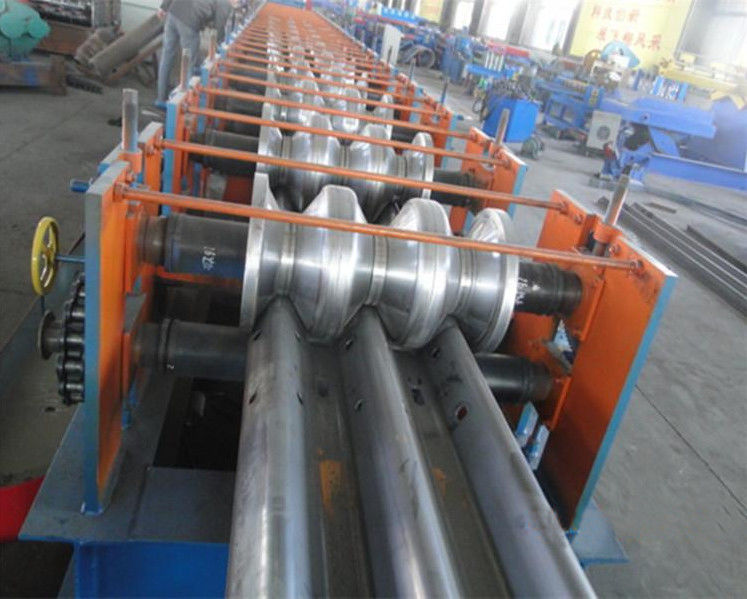

| 5 | Main roll former | set | 1 |
| 6 | PLC control station | set | 1 |
| 7 | Hydraulic oil pump | set | 1 |
| 8 | Cutting system | set | 1 |
| 9 | stacker | set | 1 |
some details of Guardrail Highway Roll Forming Machine
parameters of Guardrail Highway Roll Forming Machine
| Series | Details | Parameter |
|
Roll forming machine |
Guiding&leveling device |
Placed on the machine by seller |
| Shaft numbers:11pcs | ||
| Shaft diameter:80mm | ||
| Shaft material: 45# steel | ||
| Drive power:5.5kw | ||
| Rolling shaft material | 45# STEEL | |
| Shaft diameter | 90mm | |
| Roller material | GB-Cr15 with heat treatment | |
| Rolling station | 15 stations | |
| Machine frame | Cast iron vertical structure | |
| Machine body | 400# H steel welded | |
| Bearing | Chinese famous brand Harbin | |
| Work power | 22kw | |
|
Control system |
Frequency brand | Delta from Taiwan |
| PLC brand | Delta from Taiwan | |
|
Hydraulic system |
Work type | Hydraulic |
| Punch mode | Four pillar hydraulic powered punching system | |
| Driving method | By Cylinder | |
| Motor power | 22kw | |
| Mold material | GB-Cr12 | |
| Mold quantity | 2 sets | |
| Punching frame | 1 set | |
| Press power | 80T | |
| Cutting length tolerance | ±1.5mm |
Payment type: 30% T/T prepaid and balance should be paid before loading
Delivery time: 30 working days after receiving prepaid.
Guarantee period: 18months free service/ pay service all the machine life
Installation and training:
If buyers visit our factory and check the machine, we will teach you how to install and use the machine, and also train your workers/technician face to face.
Without visiting,we will send you user manual and video to teach you to install and operate.
If buyer needs our technician to go to your local factory,please arrange board and lodging and other necessary things.
