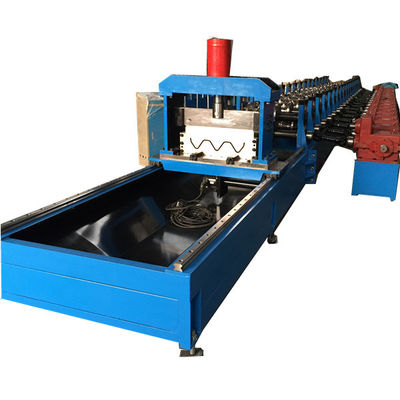

30kw Plc Highway Guardrail Roll Forming Machine

30kw Plc Highway Guardrail Roll Forming Machine
30kw Plc Highway Guardrail Roll Forming Machine 30kw Plc Highway Guardrail Roll Forming Machine 30kw Plc Highway Guardrail Roll Forming Machine

Large Image :  30kw Plc Highway Guardrail Roll Forming Machine

Product Details:
Place of Origin: China
Brand Name: ZTRFM
Certification: CE. SGS
Model Number: Heavy duty machine
Payment & Shipping Terms:
Minimum Order Quantity: 1 set
Price: 12500 USD
Packaging Details: Nude package with anti oil
Delivery Time: 60working days

30kw Plc Highway Guardrail Roll Forming Machine

Description
Type: With Punching Function: Highway Guardrail
Speed: 15 To 20 Meter Per Minute Name: Highway Guardrail Roll Forming Machine
High Light:

plc highway guardrail roll forming machine

,

30kw highway guardrail roll forming machine

,

highway guardrail rollformer

                                                        Highway guardrail rolling forming machine

Highway anti-collision guardrail is the main form of semi-rigid guardrail. It is a continuous structure with corrugated steel guardrail panels spliced with each other and supported by the main column. It uses the deformation of soil foundations, columns, and beams to absorb collision energy, and forces out-of-control vehicles to change directions and return to normal driving directions, to prevent vehicles from rushing out of the road, to protect vehicles and passengers, and reduce losses caused by accidents. The corrugated beam guardrail is both steel and flexible, has a strong ability to absorb collision energy, has a good line of sight guidance function, can be coordinated with the road line, and has a beautiful appearance. It can be used on small radius bends, and the damaged place is easy to replace. The combined wave beam guardrail can be used on the narrow central divider.

For the Highway guardrail is has three way and two waves, here are some drawing profiles for your reference:

Highway guardrail rolling machine

Highway guardrail finished product pictures for your reference:

Guardrail machine



Highway guardrail rolling forming machine design we have the following options for your reference:

Option A Economic design using the middle plate frame and chain transmission
Option B Strong version using gearbox transmission and molding frame
Option C High speed using the flying tracking shearing design

Take the highest speed Highway guardrail rolling forming machine for example:

High speed guardrail machine

Machine working flow:

Guardrail machine working flow for your reference

Highway guardrail rolling forming machine Parameters for your reference:

No. Name Unit Remark
Part 1 5T decoiler or bigger set AUTOMATIC

Part 2



Guiding device set
Leveling device set
Punching system two or three set
Main roll former with gearbox set Cardan shaft drive
Part 3 PLC control system set
Part 4 Cutting system with flying tracking system set
Part 5 Product collect table 2 sets manual
Roll forming system
Advantage To make sure high working efficiency and higher speed and accuracy.
Main size 18.5*1.2*1.5m
Weight 15 Ton
voltage customize
Roller fixed method memorial archway
Main frame 400#H beams
driving mode case of differential
Roller material 45# steel after processing by straightening and quenching.
Roller diameter 100mm
Gear material GCR15, after quenching treatment, and the wheels of the gap after chrome
Bolt High strength testing
Roller station 16 stations
Motor power 30kw


Guardrail rolling forming machine

If you need the fully automatic type highway guardrail machine, we also supply the package machine. When the material thickness to 4.0mm, the profile will be quite heavier, by this type package stacker, it can help you put the guardrail orderly and then package them quite well.

Package stacker of highway guardrail

Highway guardrail rolling forming machine, we also have many other types design, we will share one by one on our website. Please pay more attention to us.
