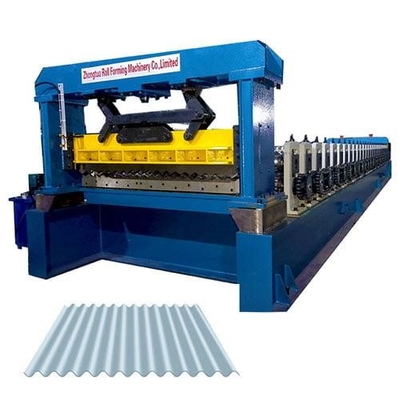

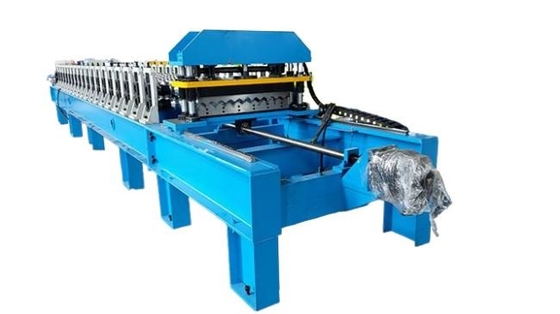

Chain Transmission Building Corrugated Roofing Sheet Machine 15 Forming Station

Chain Transmission Building Corrugated Roofing Sheet Machine 15 Forming Station
Chain Transmission Building Corrugated Roofing Sheet Machine 15 Forming Station Chain Transmission Building Corrugated Roofing Sheet Machine 15 Forming Station Chain Transmission Building Corrugated Roofing Sheet Machine 15 Forming Station Chain Transmission Building Corrugated Roofing Sheet Machine 15 Forming Station

Large Image :  Chain Transmission Building Corrugated Roofing Sheet Machine 15 Forming Station

Product Details:
Place of Origin: China
Brand Name: ZTRFM
Certification: CE,SGS
Model Number: Roofing sheet machine
Payment & Shipping Terms:
Minimum Order Quantity: 1 set
Price: under discuss
Packaging Details: Nude with anti coil coating and plastic cover
Delivery Time: 45 working days
Payment Terms: L/C, T/T
Supply Ability: 30 sets per month

Chain Transmission Building Corrugated Roofing Sheet Machine 15 Forming Station

Description
Product Type: Roll Forming Machine Motor Power: 3.5KW
Electrical Elements: Mitsubishi PLC & Converter Input Width: 1220mm
Forming Station: 15 Transporting Type: Chain Transmission
Warranty: 1 Year Feature: Fully Automatic Mode
Type: Roll Forming Machine Roller Stations: 13
Production Capacity: 30sets Per Month Cutting Tolerance: 10m+/-1.5mm
Electric Shear Power: 4KW Main Power: 7.5 Kw
Customized: Yes
Highlight:

15 Forming Station Roofing Sheet Machine

,

Chain Transmission Roofing Sheet Machine

,

Building Corrugated Roofing Sheet Machine

Zhongtuo Corrugated Roofing Sheet Machine:Ideal For Building Roofing

In the field of modern architecture,corrugated roofing tiles are more and more favored by the market for their unique aesthetics and excellent performance. The arc roof tile machine produced by CangZhou Zhongtuo roll forming mechinary Co., Ltd. has become the first choice of many construction enterprises and roof tile manufacturers with its excellent quality and advanced technology.

Zhongtuo Arc roof tile machine adopts an innovative integrated design, which perfectly integrates the control cabinet, forming machine and hydraulic oil station into one. This design not only makes the appearance of the equipment more concise and beautiful, but more importantly, it brings great convenience to customers. After purchase, customers do not need cumbersome line connection, just plug in the power can be put into use, greatly saving installation time and labor costs, even non-professionals can easily operate, effectively improve production efficiency

Profile Drawings of Corrugated Sheets

Chain Transmission Building Corrugated Roofing Sheet Machine 15 Forming Station 0

Chain Transmission Building Corrugated Roofing Sheet Machine 15 Forming Station 1

Machine Layout

Chain Transmission Building Corrugated Roofing Sheet Machine 15 Forming Station 2

Zhongtuo Corrugated Roofing Sheet Machine:Ideal For Building Roofing

Chain Transmission Building Corrugated Roofing Sheet Machine 15 Forming Station 3

Exquisite manufacturing technology

Quality roller handling:

The roller is one of the core components of the corrugated roof tile machine. Zhongtuo Company strives for excellence in the manufacturing process of the roller. In the forging process, a number of fine processes are added, and the inner and outer sides of the roller are chrome plated, extending the chrome plating time, making the roller more beautiful and durable, with excellent corrosion resistance and wear resistance, thus extending the service life of the equipment, reducing the maintenance frequency of the equipment, saving a lot of maintenance costs for customers to ensure the continuity of production.

Chain Transmission Building Corrugated Roofing Sheet Machine 15 Forming Station 4

Solid roller mounting:

The roller is equipped with double nuts and thrust washers, and equipped with keyway to ensure that the roller will not loosen or displace during high-speed operation of the machine, ensuring the smooth and reliability of the machine operation. This design makes the corrugated roofing tile produced with higher dimensional accuracy and more stable quality, which can meet the needs of various high standard construction projects.

Chain Transmission Building Corrugated Roofing Sheet Machine 15 Forming Station 5

Precise control system

Zhongtuo arc roof tile machine is equipped with advanced industrial computer PLC and frequency conversion control technology to achieve accurate control of the machine parameters. Through the man-machine interface, the operator can intuitively set and adjust the molding speed, plate feeding length, cutting position and other parameters, the operation is simple and easy to understand, reducing the professional requirements for the operator, reducing the production accidents caused by human error. In addition, the control system also has fault diagnosis and early warning function, can monitor the operating status of the machine in real time, once the fault or abnormal situation is found, it will immediately issue an alarm and display the corresponding fault information, to help maintenance personnel quickly locate and solve the problem, minimize the downtime, improve the utilization of equipment, and provide a strong guarantee for the production of customers.

Chain Transmission Building Corrugated Roofing Sheet Machine 15 Forming Station 6

Excellent performance

Efficient production:

Zhongtuo circular roof tile machine has a high production speed, can meet the needs of large-scale production. According to different sheet thickness and material, the production speed of the machine can reach 20-60 pieces/minute, and even for thinner materials, 3 pieces can be made at the same time, which greatly improves the production efficiency and creates more economic benefits for customers.

Chain Transmission Building Corrugated Roofing Sheet Machine 15 Forming Station 7

Extensive material adaptability:

The equipment can process a variety of materials, such as galvanized steel plate, stainless steel plate, aluminum plate, thickness range of 0.12-0.6mm, can meet different customers on the arc roof tile material and thickness of the diverse needs, suitable for a variety of architectural styles and environment roof decoration.

Chain Transmission Building Corrugated Roofing Sheet Machine 15 Forming Station 8

Excellent product quality:

With accurate control system and exquisite manufacturing process, the arc roof tile produced by the arc roof tile machine is accurate in size, consistent in shape, flat in surface and uniform in corrugations, with high strength and stability, and can withstand the test of various adverse weather conditions, providing reliable roof protection for the building, and improving the overall beauty of the building

Chain Transmission Building Corrugated Roofing Sheet Machine 15 Forming Station 9

Key attributes

Type Tile Forming Machine
Tile Type Steel
Use FLOOR
Voltage 380v
Rolling thinckness 0.18-0.28mm
Feeding width 1220mm
Place of Origin Hebei,China
Weight 6500kg
Warranty 2years
Key Selling points Easy to Operate
Core Components Other,Motor,Engine,PLC
Brand Name ZTRFM
Dimension(L*W*H) Customized
Machinery Test Report Provided
VIdeo outgoing-inspection provided
Product name Roof Sheet Forming Machine
After-sales Service Provided Engineers
Usage Building
Plc DETLA
Control box language Add Customer Request Language
Export Tianjin Port
Color Customized
Machine Color Client’s Requriment
