Metal Roof Glazed Tile Roof Roll Forming Machine Corrugated Steel Sheet BV / SGS

Large Image : Metal Roof Glazed Tile Roof Roll Forming Machine Corrugated Steel Sheet BV / SGS

Product Details:

Place of Origin:	China
Brand Name:	ZTRFM
Certification:	CE
Model Number:	ZTAC

Payment & Shipping Terms:

Minimum Order Quantity:	1 set
Price:	on discuss
Packaging Details:	the Packaging Detail of roll forming machine door : Standard and safe export package, suitable for long term sea way shipping Delivery Detail: within 45 working days after down payment received
Delivery Time:	45 working days after receiving deposit
Payment Terms:	T/T, L/C, Western Union
Supply Ability:	20 sets per month

Contact Now

Metal Roof Glazed Tile Roof Roll Forming Machine Corrugated Steel Sheet BV / SGS

Description

Type:	Step Tile Making Machine	Material Thickness::	0.4-0.7mm
Rolling Speed::	6-15m/Min	Roller Stations::	14 Stations
Hydraulic Cutting Power::	5.5kw	Material Of Shaft::	45 Steel
Transport Package::	Plastic Film, Container	HS Code::	845522100
Highlight:	corrugated sheet roll forming machine , roof and wall panel roll forming machine

Metal Roof Glazed Tile Roll Forming Machine Corrugated Steel Sheet BV / SGS

Machine description	Quantity	Delivery time	Container type
roll forming machine prices	1SET	45 working days	20GP

Components of roll forming machine

No.	Name	Unit	Qty
1	Manual decoiler	set	1
2	Main forming machine	set	1
3	PLC control system	Set	1
4	Hydraulic pump station	set	1
5	post cut	set	1
6	electric motor	set	1
7	output table	set	1

Product Description

description of tile roll forming machine

Machine description	Quantity	Delivery time	Container type
tile roll forming machine	1 SET	40working days after deposit	one 40GP

Metal Roof Glazed Tile Roof Roll Forming Machine Corrugated Steel Sheet BV / SGS 0

The production process of tile roll forming machine

Uncoiling--->Feeding material into machine-->Roll forming --->Measuring length --->Step formed--->Auto cutting--->Pruducts receving.

the specification of tile roll forming machine

name	tile roll forming machine
material	Color steel sheet
thickness	0.3-0.8mm
Coil inner diameter	450-550mm
Max coil out diameter	1300-1600mm
Max coil width	1250mm
Carrying capacity	5T
Forming steps	13rollers
Shaft diameter	80 mm
Design type	pillar structure
Roller material	45 # steel chrome plating chromium
Shaft material	40Cr steel
Work speed	4-12m/min

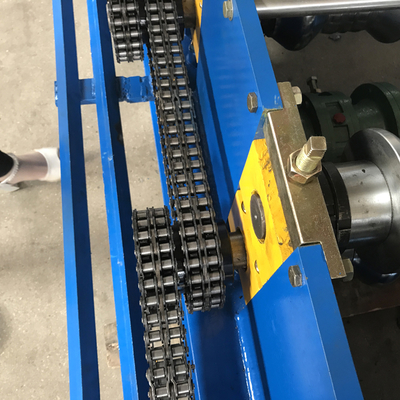

Transpor	by chain
Type of cutting	hydraulic
Cutting tolerance	whthin 1mm
Cutter	Gcr12
Material of blades	Cr12 quenched
PLC	Delta
Counter	Omion
Voltage	as required
Dimension	7000x1500x1910mm
Weight	About 5 T
Workers	1-2 only

Metal Roof Glazed Tile Roof Roll Forming Machine Corrugated Steel Sheet BV / SGS 1
