Metal Wall Cladding Sheet Panel Making Machine

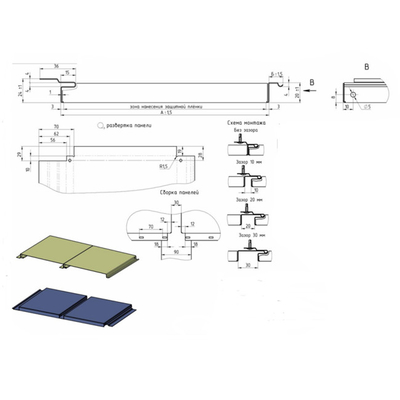

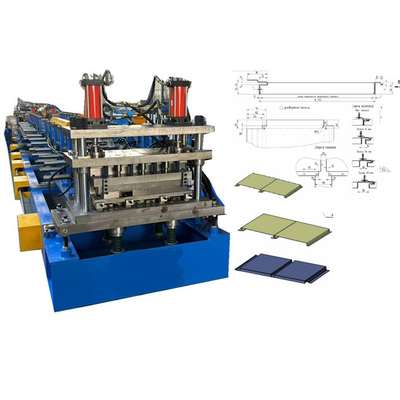

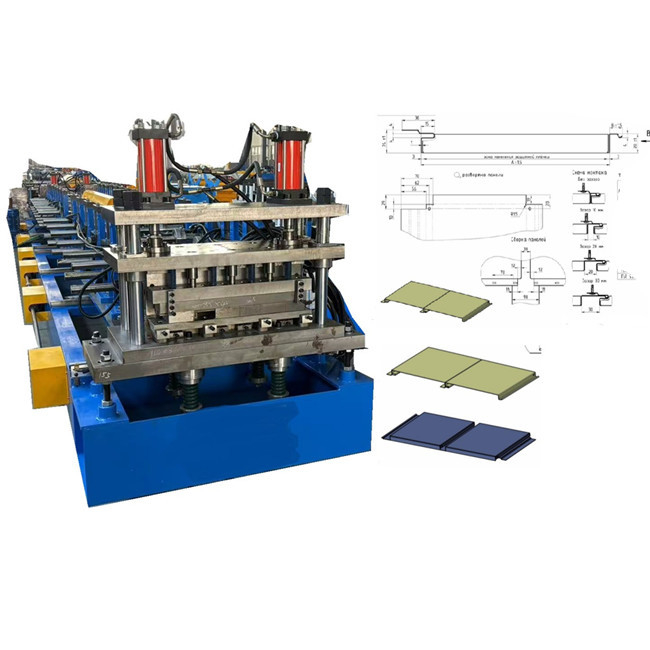

Metal Wall Cladding Sheet Panel Making Machine is designed to make the wall cladding panel sheets in batch fully automatically. In the market, there are lots wall cladding sheets, here I will show you one with box profile type, which can make the something like close type Exterior metal sheet wall cladding. Here are some drawing profile and finished product for your reference:
Compared with other wall cladding sheet, this one has the following advantages:
1. Side with rotary punching holes for easy to do installation.
2. Width adjustable.
3. With end bending something like closed type.
4. Length adjustable.
5. 3D effect more stronger.
6. Hidden type of nail installation

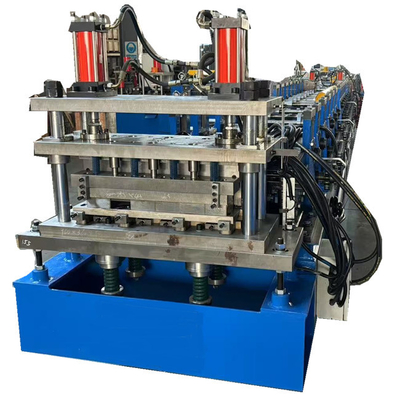

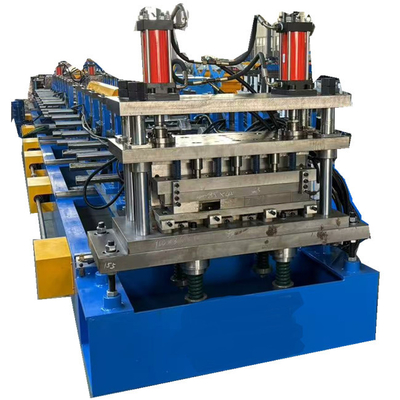

Metal Wall Cladding Sheet Panel Making Machine designs:
Metal Wall Cladding Sheet Panel Making Machine Working Flow:

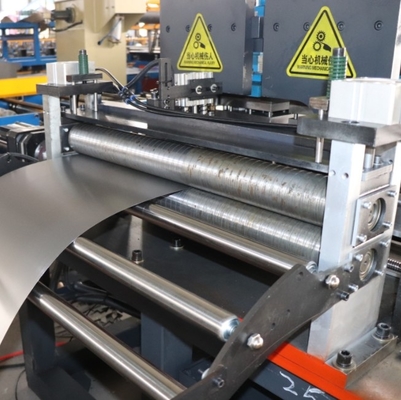

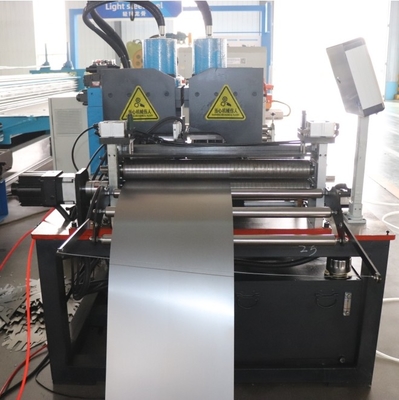

The metal wall cladding panel machine works like this: from the decoiler and then go the leveling and f liming part(f liming is optional, you can choose to add or not) and then to corner cutting and punching of the corner, and then to the main rolling forming part, it is width adjustable. Last step is the bending and shearing and then come to the receiving table.

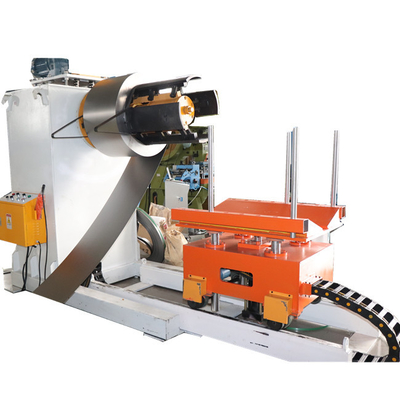

1. For the decoiler, you can choose the manual one or the hydraulic one.
2. For the corner cutting part, the width also adjustable. So for different profiles, you can adjust it according to different width:
As the wall cladding panel sheets machine:
| Rolling shaft | Shaft material: 45# steel with quenched treatment, precision machined |
| Shaft diameter: 65 mm | |
| Roller | Roller material: GCR15 steel, finely processed, HRC58-62℃ surface chrome plating |
| Machine structure | Arch frame thickness 35 mm |
| Rolling station | 16 stations |
| Forming speed | 10-20 m/min |
| Machine body | 350H beam steel |
| Bearing | Chinese famous brand Harbin |
| Work power | 5.5 kw servo motor |
| Transmission | By chains |
| Automatic changing size | By servo motor; PLC control |
As to the shearing and bending part, Cutter material Cr12Mov, Hardening HRC 58-62℃
As to the PLC control system
Control system: Frequency brand Siemens
PLC brand: Siemens
Screen type:Touch screen & buttons
Screen language: English/Chinese/others
Encoder: Siemens
Low pressure electrical part brand:Schneider
Function: Cutting length and quantity control, speed adjustment control
Adopted PLC, transducer, touch panel from Delta to ensure high speed with more stability, high precision and long lifetime. Other electric element is Schneider. Equipped with movable switch, air break, radiator, transformer & electric leakage protector, that element can make sure easy operation convenience and safety.
