Product Details:
|
| Hydraulic Station Power: | 4 KW | Coil Width: | 1000mm |
|---|---|---|---|
| Shaft Material: | 45# And OD 80mm | Diameters Of Roller: | 65-90mm |
| Power Source: | Hydraulic | Machine Color: | As You Wish |
| Roller Stands: | About 13-20 (depend Onprofile) | Rollers: | 16 Rows |
| Control System: | PLC | Transmission Type: | Chain Drive |
| Hydraulic Systems: | 10-12Mpa | Model: | XYZ-1000 |
| Rolling Thinckness: | 0.12-0.3mm | Effective Width: | 700mm |
| Highlight: | Aluminum Trim Roll Forming Machine,Steel Trim Roll Forming Machine,16 Gauge Trim Roll Forming Machine |
||

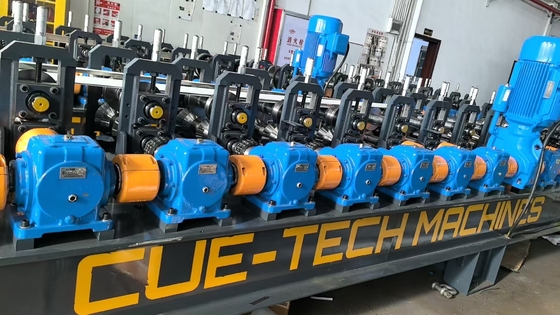

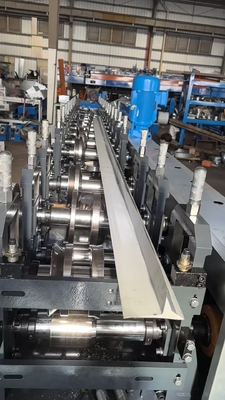

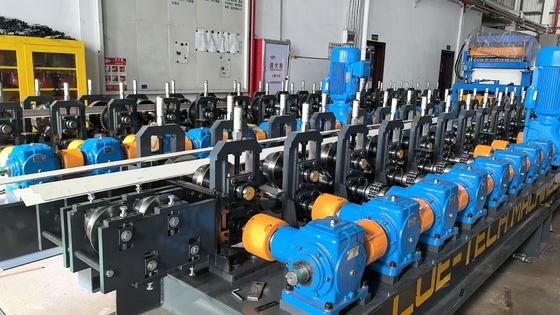

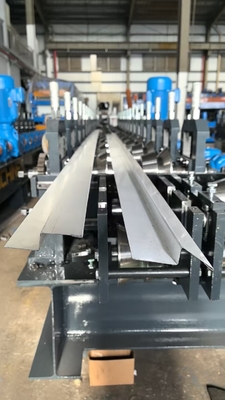

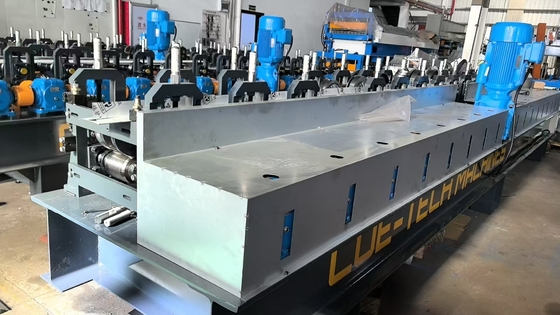

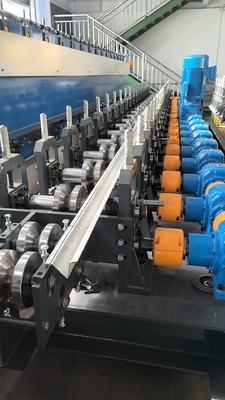

Trim Roll Forming Machine
Our trim machines are made to meet commercial, residential, or industrial needs. Trim profiles vary depending on building type, roof type, or marketplace. Trim machines we offer include: J Channel, Ridge Cap, Fascia, Rake Trim, Drip Edge, Drip cap, Corner trim, and many more.
Designed and Manufactured in the China with Stainless Steel to Hardened Tool Steel Forming Rolls with or w/o Chrome Plating, Sealed Bearings, Stainless Steel Shafting, Hydraulic Drive and Shear or AC Drive Motor System and Air Powered Shear, and Digital Controllers for fully automatic operation. Typical thickness capacities range from 30 to 16 gauge on Steel and .019″ to .060″ on Aluminum.
The benefit of owning your trim machine is you no longer have to deal with the constant rising prices of trim, and long lead times. Trim machines also allow you to “free up” your brake or folder for other projects, and there is no limitation on the length of pieces.
Example Profiles
Trim Roll Forming Machine
| Main Technical Parameters | |
| Quantity of forming rollers stations | 12-14 |
| Diameter of forming rollers shafts | 60mm |
| Roll Forming Speed | about 30m/min |
| Forming rollers material | No.45 steel, coated with chromed treatment |
| Cutter material | CR12 mould steel, with quenched treatment |
| Controlling system | PLC and Converter |
| Electric Power requirement | Main servo motor power: 4kw |
| Hydraulic unit motor power: 4kw | |
| Electric voltage | According to customer’s requirement |
FEATURE
Workflow of trim lines,decoiler- feeding – slit width-punch – forming – cut
Siemens control, about 14 roller stations
Trim forming machine adopt servo motor to improve working speed.
We can make roll forming for single trim, or roll former for multi profiles.
We offer a variety of Single and Multi Trim Roll forming lines, slitting lines, hemmers, shears, folders and other additional equipment to speed up your trim production.
