Concealed fastener panel profile rolling machine
Concealed fastener wall panels are attached to the substructure without visible fasteners. Instead, concealed fastener panels are installed with clips and/or screws hidden behind the face of the panel.
Metal siding is becoming increasingly popular among homeowners everywhere, and for good reason. With its strength, ability to last a long time, low maintenance, and many different style.
Concealed fastener panel profile rolling machine is a production line that dedicated on the manufacturing of metal sheet and panel for facade siding or cladding.
Concealed fastener panel profile rolling machine is an important family of wall panel roll forming machines. The wall panel can be divided into two kinds, one is for the Interior and the other is for Facades, and for most of application, the metal sheet and panel must be concealed fastener.
What is the Concealed fastener?
Concealed fasteners are the ones that you can’t see when you look at your roof, due to the fact that they go under your roof panels as opposed to on top of them. Since they are beneath your roofing panels, this has many benefits, but just like exposed fasteners, concealed fasteners have their cons too.
Here is one drawing profile and finished product:
Give an example:
Panel Fixing Clips
Attachment clips for LCP 700 are hidden within the ribs where they engage the male and female rib, depending on the clip design. The
strength of the clip attachment method and spacing are therefore coordinated with the panel size and structural characteristics to provide the necessary
wind uplift resistance and allowance for the thermal movement.
Features
LCP 700 is a wide cover concealed fix roof cladding. Featuring improved full lenght clip design with positive snap action rib design and superior weather resistance performance.

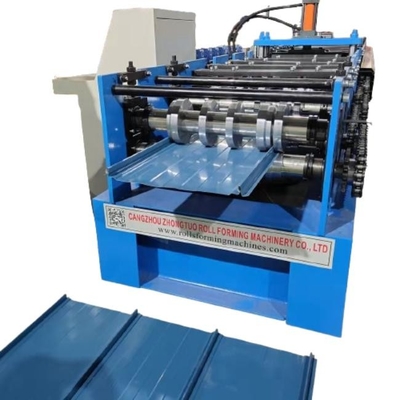

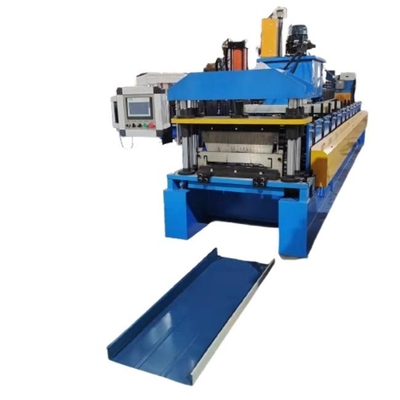

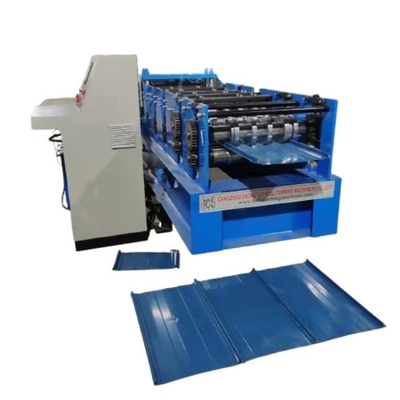

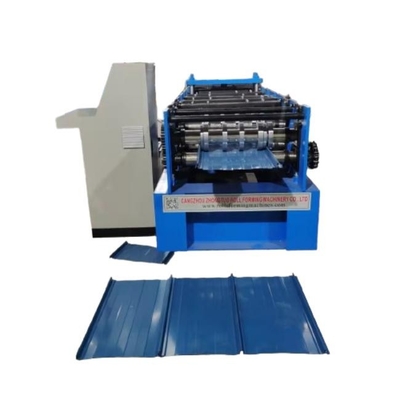

Concealed fastener panel profile rolling machine
Concealed fastener panel profile rolling machine process :
Decoiling -guiding&leveling --roll forming--hydraulic cutting---stacking
Advantages of Concealed fastener panel profile rolling machine
Because concealed fasteners are hidden below the metal roof sheeting, less maintenance is required.Concealed fasteners offer improved weathertightness and a more streamlined appearance.
Concealed fastener panel profile rolling machine summary:
Siemens PLC , converter and screen.
Main motor power 4kw
Hydraulic power3kw
About 20 roller stations.
75mm diameter solid shaft.
The metal siding wall panel roll forming machine is featured:
Working with galvanized , pre-painted or aluminum light gauge 0.4-0.6 mm
Fully "hands-free" automatic control by PLC system with touch screen
Cut to any length presetting in the program system
Follow cutting is optional with certain type of metal wall panel
Auto-stacker is optional to save labor cost
Perforated press is optional for the holes on the wall panel
