Product Details:
|
| Main Motor Power: | 5.5kW | Diameter Of Shaft: | 76mm |
|---|---|---|---|
| Mold: | PLC Control | Main Power: | 7.5KW |
| Weight: | 8500 Kg | Production Speed: | 10-15m/min |
| Rolling Thinckness: | 0.3-0.8mm | Number Of Stations: | 16-25 Stations |
| Angle Range: | 15deg-90deg | Export Port: | Tianjin Port |
| Length: | Customized | Cutting Accuracy: | ±2 Mm |
| Coil Stress: | Q235 Mpa (33KSI) | Yield Strength: | ≤ 400 Mpa |
| Highlight: | Wall Panel Cladding Roll Forming Machine,1mm Shearing Error Roll Forming Machine,Accurate wall panel roll forming machine |
||

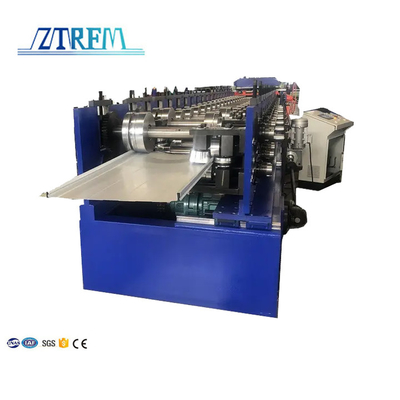

Wall panel cladding roll forming machine
Wall panel cladding roll forming machine is one of cold forming machines producing all kinds of wall panel,including normal PPGI,color steel material or composite material.The wall panel is simple and fast,suitable for office buildings,business buildings,multi-storey residential areas,villas,factories,temporary houses,old building transformation and other building forms.
Here are some profile pictures:
Work flow of wall panel cladding machine:

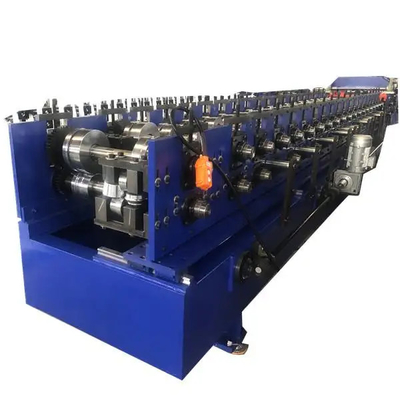

Wall panel cladding roll forming machine

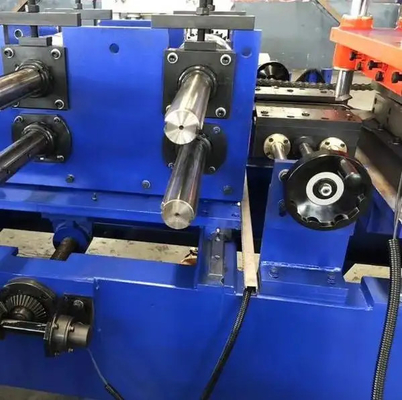

Thick shaft rollers for good support and long service life.
Hydraulic cutting with Cr12 Mov cutter for good hardness.
Strong machine structure with high quality. Not easy to deform.
Product advantages:

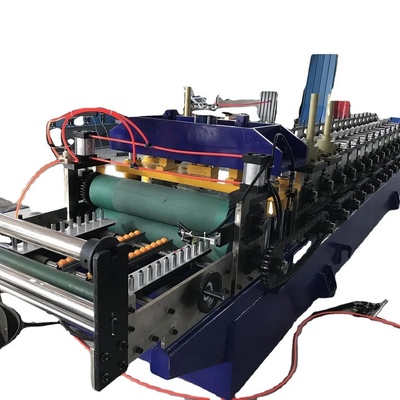

1.Good rubber rollers to protect steel surface.
2.Hydraulic pre-cutting design before roll forming.
3.Hanging PLC control saves more place.
PLC brand: Delta from Taiwan
4.Encode: Omron
Product features:
thickness:0.5-0.7mm
Rolling station:28 roller stations
Work speed:15M/Min
Roller shaft diameter:70mm
Middle plate thickness:20mm
Roller material:45# hard chroming
TransmissionBy Chain of size 1 inch
Machine power:7.5 kw
Shearing method:Hydraulic shearing
Shearing error:±1mm
Blade materiel:Cr 12
