Product Details:
|
| Roller Marertial: | 45# Steel | Machine Type: | Advanced Roof Cold-Rolling Form Machine |
|---|---|---|---|
| Machinery Test Report: | Provided | Coil Weight: | 5 Or 8 T |
| Axis Diameter: | ¢ 76mm | Production Capacity: | 8-15m/min |
| Number Of Stations: | 16-25 Stations | Forming Roller Stations: | 18 - 20 Stations |
| Forming Rollers: | GCr15, Quenching, Hardness HRC56-62º | Roller Fixer: | Middle Plate Welded |
| Forming Station: | 16 | Tile Type: | Steel |
| Cutting: | Hydraulic Cutting | Roll Station: | 10-14 Stations Or Depends On Profile |
| Highlight: | Interconnected Metal Panels Forming Machine,36 inch metal roof forming machine,PBR metal roofing machine for sale |
||
High quality PBR Panel Metal Roofing Machine
PBR -Panel Metal Roof is built with 36-inch-wide interconnected metal panels.These metal roof types feature overlapping seams which limit water infiltration.
PBR - Panel metal roofs are the long-lasting and beautiful stunning metal roofing option.They are easy to install and this course cuts down on labor,time,and disposal costs.These R panel roofs are available in many different colors.R-Panel/PBR - Panels are very popular for both local and commercial roofing system.
PBR -Panel Metal Roof is built with 36-inch-wide interconnected metal panels.These metal roof types feature overlapping seams which limit water infiltration,but the exposed fasteners can be a point of weakness.ZTRFM is one of the leading PBR panel metal machine manufacturers in the PBR -panel metal roof,and specialized in the design,manufacture the roll forming machines,and PRB panel roll forming machine.

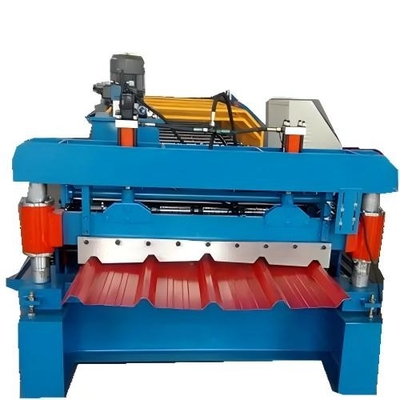

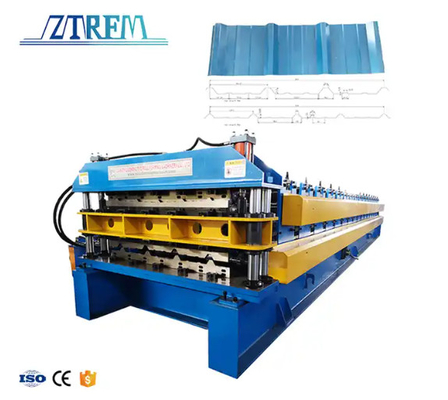

Here is one drawing profile and finished product:
High quality PBR Panel Metal Roofing Machine
Production technology process:
Feeding → Leveling → Forming → hydraulic Cutting after forming → Output
The price of ZTRFM’s roll forming machines is a little higher than other suppliers'. Let me explain about our machines difference:

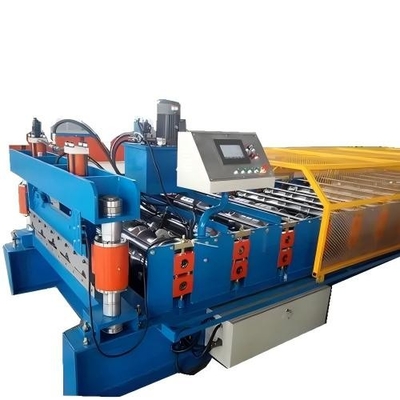

ZTRFM’s machine design: it is unit one, which means the control box and the hydraulic station are all put under the machine frame, when you get the machine, no need to assemble and connect the complicate cable of the machine, you only need to connect one main cable, then the machine is working. it saves more time and space.
Our display screen is touch screen, not text touch screen.

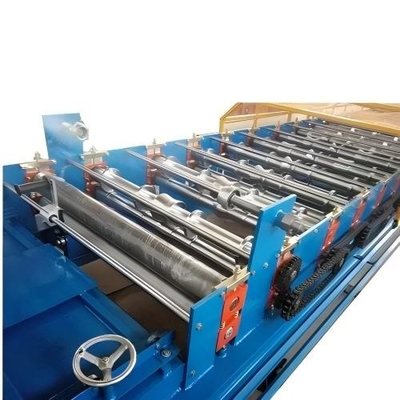

ZTRFM roll forming system: We will make the hand wheels at the feeding device to adjust feeding width, and we also make the wheels with the numbers then you know how to adjust right and left sides, also we made the rulers on the bedding, you can adjust the profile height and width according to the rulers.
Screw with numbers is to adjust material thickness easily, also with protecting cap also add laminating film device and felt to make the board flatter and smoother without scratches.
The machine is equipped with a detection switch device, in case of emergency, emergency alarm, stop operation.
Technical of the whole line:
|
5ton manual decoiler |
1.Capacity:5ton 2.Coil diameter:450-550mm adjustable 3.Coil width:Max1350mm 4.Un-powered, manually control steel coil inner bore shrinkage and stop |
|
Manual pre-cutter |
Pre-cutter is suitable for frequent replacement of steel coil equipment,cutting steel coil in advance for easy replacement and reducing the wast of steel coil. |
|

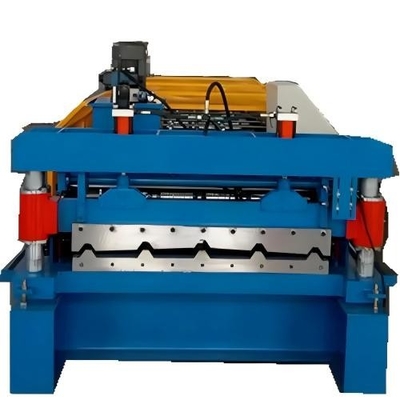

Main forming machine |
1.Main frame:400mm H beam structure, with 20mm thickness welded steel middle support plate. 2.Forming station:24 stations 3.Roller material:High grade 45# steel,chromed treatment,which makes the rollers surface more smoothly, improve the hardness and prevent abrasion, anti corrosion increase of service life 4.Shaft material:High grade 45#,Tempering treatment, prevent deformed and improve the hardness 5.Shaft diameter:80mm,solid 6.Motor power:7.5kw 7.Speed:0-20m/min 8.Voltage:380V,50HZ,3P(Or as request) 9.Transmission:By 1inch double chain,Chinese famous brand HRB |
|
Hydraulic cutting deivce |
1.Blade material:Gcr12 quenched treatment 2.Length tolerance:±1mm 3.Hydraulic power:5.5kw 4.With air cooling system in the hydraulic station 5.Cutting feature:Steady and safe working condition and low sounds. 6.Oil tube and wires connection:All the tubes and wires will be marked by the numbers or letters,so that it will be easy to connect for the new. |
|
Control system |
1.Frequency converter:Delta 2.Screen:touch screen 3.PLC brand:Delta 4.Language:Chinese and English(Or as customers’ request) 5.Encoder:Omron 6.Feature:The control system support multi orders input,it can match different production needs 7.Functions:Cutting length control,cutting quantity control,and speed control |
| Run out table |
1.Length:3m 2.Quantity:2sets |
| Spare parts |
|
Images:
