Product Details:
|
| Type:: | Highway Guardrail Production Line Roll Forming Machine | Dimension(L*W*H):: | 9800*1600*1500 Mm |
|---|---|---|---|
| Weight:: | 12Tons | Productivity:: | 6-10m/min |
| Material Thickness:: | 2.5-3.5 Mm | Voltage:: | 380V-50HZ-3P (As Requested) |
| Warranty:: | 12 MONTH | Frame Material: | 300 H-high Grade Steel |
| Deliver Time:: | 40 Days | ||
| Highlight: | portable metal roofing machine,highway guardrail forming machine |
||
highway guardrail roll forming machine Process flow:
Uncoiling→Feeding material into machine→Roll forming→Measuring length→ Auto cutting
→Products receiving
Parameters of highway guardrail roll forming machine :
| 1 | Model No. | Two waves highway roll forming machine |
| 2 | Max coil thickness | 3.5mm |
| 3 | Coli material | Steel or other |
| 4 | The bearing capacity of manual decoiler | 5 tons |
| 5 | shaft material | 45#steel |
| 6 | Out diameter | 100mm |
| 7 | numbers of forming steps | 20 stations |
| 8 | transmission | Differential gear transmission |
| 9 | Forming speed | 10-15m/min |
| 9 | main motor power | 45kw |
| 10 | voltage | 380V50HZ Three-phase or you need |
| 11 | dimension | 20.5*1.2*1.5m |
| 12 | cutting | Hydraulic cutting |
| 13 | Cutting power | 13.5kw |
| 14 | blade material | Cr12 steel with quenched treated 60-62°c |
| 15 | control system | PLC(Delta) |
| 16 | length tolerance | ±2mm |
| 17 | spare parts |
easy emaged parts:conk 2pcs, fuse-link 4pcs rubber mat: 1 pcs bolt spanner: 1 pcs |
| 18 |
The whole line including: Hydraulic decoiler, roll forming machine, cutting part PLC control system, run-out table. |
|
Components of highway guardrail roll forming machine :
| No. | Name | Unit | Qty |
| 1 | decoiler | set | 1 |
| 2 | Main forming machine | set | 1 |
| 3 | PLC control system | set | 1 |
| 4 | Hydraulic pump station | set | 1 |
| 5 | Post cut | set | 1 |
| 6 | Electric motor | set | 1 |
| 7 | Output table | set | 1 |

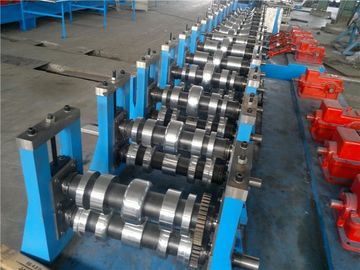

some pictures of machine:
the machine naked in the container or packing as your required.
Payment: 30% T/T in advance and balance 70% after inspection confirmation before shipment.
Delivery: within 45 working days after receipt of deposit
Guarantee: One year, and we will provide the technical support for the whole life.
FAQ:
1.How to get a quotation of guard rail machine?
Give me the profile drawing and thickness for the guard rail machine,this is the important.
Other spicific requirements is welcome,such as the speed,power and voltage you want.
2. Terms of payment:
30% T/T, Balance to be paid before shipping after inspection.Also we accept the payment L/C, O/A , D/P.
3. How long the guard rail machinecould be made?
Normally speaking, guard rail machinecould be made without 45 working days. If you need roll forming machines in a hurry, we can make it for you less than a month.
4. What is your after-sale service?
guard rail machinewarranty period is 12months,if the broken parts can't be repaired,we can send new to replace for free,but you need to pay the express cost yourself.we supply the technical support for the whole life of the equipment.
5. You are trade company or factory?
We are trade company but we also have own factories. Building trade company is just for exporting various types of roll forming machines.
6. How to visit your company?
a. Fly to Beijing airport: By high speed train From Beijing Nan to Cangzhou Xi (1 hour), then we can pick up you.
b. Fly to Shanghai Airport: By high speed train From Shanghai Hongqiao to Cangzhou Xi(4.5 hours), then we can pick up you.
