Two Waves Steel Roll Forming Machine / Portable Metal Roofing Machine High Accuracy

Two Waves Steel Roll Forming Machine / Portable Metal Roofing Machine High Accuracy
Two Waves Steel Roll Forming Machine / Portable Metal Roofing Machine High Accuracy Two Waves Steel Roll Forming Machine / Portable Metal Roofing Machine High Accuracy Two Waves Steel Roll Forming Machine / Portable Metal Roofing Machine High Accuracy

Large Image :  Two Waves Steel Roll Forming Machine / Portable Metal Roofing Machine High Accuracy

Product Details:
Certification: CE
Model Number: highway Guardrail
Payment & Shipping Terms:
Minimum Order Quantity: 1 set
Packaging Details: 1.Tighten to container with steel wire rope and welded angel iron. 2.Main forming machine and unciler is naked (if you need we can also packed with water-proof plastic) 3 .Roll forming machine PLC control system and moter pump are packed with water-proof p
Delivery Time: 30 days after your pre-deposit
Payment Terms: T/T, L/C, Western Union
Supply Ability: 20 sets per month

Two Waves Steel Roll Forming Machine / Portable Metal Roofing Machine High Accuracy

Description
Type:: Highway Guardrail Production Line Roll Forming Machine Dimension(L*W*H):: 9800*1600*1500 Mm
Weight:: 12Tons Productivity:: 6-10m/min
Material Thickness:: 2.5-3.5 Mm Voltage:: 380V-50HZ-3P (As Requested)
Warranty:: 12 MONTH Frame Material: 300 H-high Grade Steel
Deliver Time:: 40 Days
High Light:

guardrail roll forming machine

,

portable metal roofing machine

Two Waves High Accuracy Steel Roll Forming Machine GuardRail Production Line



Processing flow of guard rail machine







Components of highway guard rail machine



No. Name Unit Quantity
1 5T decoiler set 1
2 Guiding device set 1
3 Leveling device set 1
4 Punching system set 1
5 Main roll former set 1
6 PLC control station set 1
7 Hydraulic oil pump set 1
8 Cutting system set 1
9 stacker set

1






















parameters of guard rail machine



Series Details Parameter









Roll forming machine



Guiding&leveling device

Placed on the machine by seller
Shaft numbers:11pcs
Shaft diameter:80mm
Shaft material: 45# steel
Drive power:5.5kw
Rolling shaft material 45# STEEL
Shaft diameter 90mm
Roller material GB-Cr15 with heat treatment
Rolling station 15 stations
Machine frame Cast iron vertical structure
Machine body 400# H steel welded
Bearing Chinese famous brand Harbin
Work power 22kw



Control system

Frequency brand Delta from Taiwan
PLC brand Delta from Taiwan



Hydraulic system

Work type Hydraulic
Punch mode Four pillar hydraulic powered punching system
Driving method By Cylinder
Motor power 22kw
Mold material GB-Cr12
Mold quantity 2 sets
Punching frame 1 set
Press power 80T
Cutting length tolerance ±1.5mm

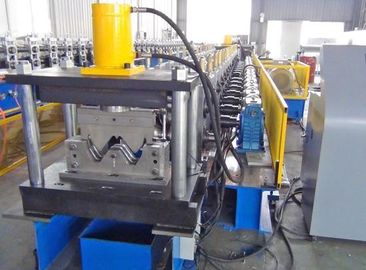

some photos of guard rail machine

Two Waves Steel Roll Forming Machine / Portable Metal Roofing Machine High Accuracy 0
