Customized Wall Panel Roll Forming Machine With 5 Nm Chrome Coated Shaft

Customized Wall Panel Roll Forming Machine With 5 Nm Chrome Coated Shaft
Customized Wall Panel Roll Forming Machine With 5 Nm Chrome Coated Shaft

Large Image :  Customized Wall Panel Roll Forming Machine With 5 Nm Chrome Coated Shaft

Product Details:
Certification: CE
Model Number: floor decking Machine
Payment & Shipping Terms:
Minimum Order Quantity: 1 set
Price: on discuss
Packaging Details: the Packaging Detail of roll forming machine door : Standard and safe export package, suitable for long term sea way shipping Delivery Detail: within 45 working days after down payment received
Delivery Time: 30 days after receiving deposit
Payment Terms: T/T, L/C, Western Union
Supply Ability: 20 sets per month

Customized Wall Panel Roll Forming Machine With 5 Nm Chrome Coated Shaft

Description
Model NO.:: EN-130JK Material Thickness:: 0.4-0.7mm
Rolling Speed:: 6-15m/Min Roller Stations:: 14 Stations
Hydraulic Cutting Power:: 5.5kw Material Of Shaft:: 45 Steel
Transport Package:: Plastic Film, Container HS Code:: 845522100
High Light:

glazed tile roll forming machine

,

roof and wall panel roll forming machine

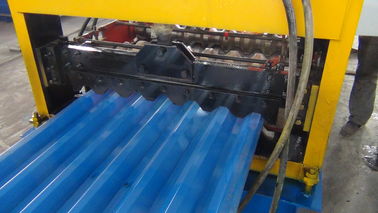

Roof And Wall Panel Roll Forming Machine With 5 Nm Chrome Coated Shaft

1. Product Application

The Roof Panels made by our Roll Forming Machine have beautiful appearance and bright color.
They are widely used in gardens, factories, resorts, hotels, exhibition halls, vacationlands,ancient architectures and modern villas.
2. Main Parameter of Roll Forming Machine
No. Item
1. Processing Material PPGI,GI
2. Material Width(mm) 1220
3. Processing Thickness(mm) 0.3—0.7
4. Material of Rollers 45# steel,with hard chrome coated
5. Diameter of Shaft Ф70mm
6. Production Speed 8---12m/min
7. Cutting Model Hydraulic Profile Cutting
8. Length Measurement Encoder
9. Control Style PLC
10. Operation Model Button+ screen
11. Total Power 8+4kw
12. Voltage 380V 50HZ or as buyer's request

Customized Wall Panel Roll Forming Machine With 5 Nm Chrome Coated Shaft 0



3. Technical Parameters :

No Item Parameter Note
1





Suitable

Material





Type Metal Sheet
Customized Specs Acceptable
  Customized Profile
Thickness 0.3-0.8mm
2

Product

Specs

Cover width Customized Profile
Length Any length



3



Power

Specs

Type 380V/3PH/50HZ Up to Practical Profile
Main Motor As per design
Hydraulic As per design
4

Machine

Specs

Transmission Chain and Sprocket
Structure Wall Plate
Shafter No.45 steel tempered
Rollers No.45 steel chrome coated Cr12 or other acceptable
Cutting Blade Cr12 quenched
Press Mould Cr12 quenched
Punch Mould Cr12 quenched
5

Working

Capacity

Forming Speed 0-20m/min Higher Speed Solution Available
Working Speed Up to Length-set Cutting
6

Manual

Decoiler

(Optional)

Type Hydraulic
Max. Capacity 5 T
Suitable coil OD 1200mm
Suitable coil ID 508/610mm
Max Coil width 1250mm
7 Forming Stand 8-30 Up to Practical Profile
8 Forming Shaft Diameter 55-100mm Up to Practical Profile
9 Type of Cutting Length-set cutting after roll formed Pre-cutting acceptable
10 Control System DELTA PLC and Inverter
11 Output Supporter 2 Pcs Simple Supporter




FAQ



Training and Installation
1. We offer installation service local in paid, reasonable charge.
2. QT test is welcome and professional.
3. manual and using guide is optional if no visiting and no installation.

Certification and after service
1. Match the technology standard, ISO producing certification
2. CE certification
3. 12 months warranty since the delivery. Board.

Our advantage:
1. Short delivery period.
2. Effective communication
3. Interface customized.

Customized Wall Panel Roll Forming Machine With 5 Nm Chrome Coated Shaft 1
