Chain Transmission Driving Cold Roll Forming Machine / Sheet Forming Machine

Chain Transmission Driving Cold Roll Forming Machine / Sheet Forming Machine
Chain Transmission Driving Cold Roll Forming Machine / Sheet Forming Machine Chain Transmission Driving Cold Roll Forming Machine / Sheet Forming Machine Chain Transmission Driving Cold Roll Forming Machine / Sheet Forming Machine

Large Image :  Chain Transmission Driving Cold Roll Forming Machine / Sheet Forming Machine

Product Details:
Certification: ISO&CE
Model Number: glazed tile
Payment & Shipping Terms:
Minimum Order Quantity: 1 set
Packaging Details: 1.One 40ft container for loding one set machine with manual decoiler. 2.All components fixed by steel wire with container.
Delivery Time: 50 sets per month
Payment Terms: L/C, T/T, Western Union

Chain Transmission Driving Cold Roll Forming Machine / Sheet Forming Machine

Description
Roller Material: 45# Steel Chrome Plating Chromium Dimension(L*W*H): Custom
Weight: About 4 Tons Voltage: 380V.50HZ.3Phase
Cutting System: Automatic Hydyaulic Cutting Control System: PLC System
Power(W): 5kw+5.5kw Production Capacity: 8-12m/min
High Light:

portable metal roofing machine

,

roofing sheet forming machine

Cold Roll Forming Machinery For Colored Glaze Steel Roofing Sheet



Glazed roof tile sheet making machine Profile drawing:





Glazed roof tile sheet making machine Working Flow:

Uncoiling→Feeding material into machine→Roll forming→Measuring length→auto-pressing→ Auto cutting→Products receiving

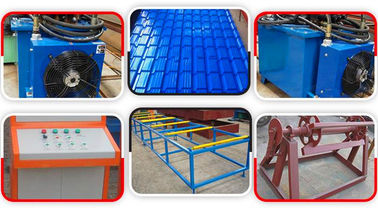

Glazed roof tile sheet making machine decoiler System:

Loading capacity: 5 T
Uncoiling width: 1250 mm
Inner diameter: 450-550 mm



Glazed roof tile sheet making machine Entry Beach:





Glazed roof tile sheet making machine Roll Forming Machine System:

Article No. Item Name Specification
1 Feeding width 1000-1250mm
2 Thickness of Raw material 0.3mm-0.8mm PPGI,GI
3 Roller station 12 stations
4 Shaft Diameter 80mm
5 Productivity 8-12m/min
6 Rollers' material GR15 steel
7 Shaft material 45# steel
8 Weight 8.5 tons
9 length 13m
10 Voltage 380V 50Hz 3phases
11 Control system PLC control system
12 Decoiler weight capacity 5 Tons
13 Main Motor 7.5KW
14 Driving way Chain transmission
15 Chain size 1.2 inch
16 Cutting system Hydraulic Automatic hydraulic cutter+Front cutter to reduce raw material waste




Glazed roof tile sheet making machine Shearing Mechanism:
Automatic cutting controlled by PLC.
Material of blades: Cr12 quenched
Power supply : Hydraulic power

Glazed roof tile sheet making machine Hydraulic Station:
Hydraulic motor Power: 3kw
Hydraulic oil: 46# hydraulic oil

Glazed roof tile sheet making machine Electric Control System:
Language: English and Chinese
Length Tolerance: 3 m±1.5 mm





Packaging and Delivery :

Packaging Details: Plastic package outside the machinery for colored glaze steel roofibg sheet,
make coil inside in case the roller and shaft got rusty.
Steel wire fix the machine into the container, in case any damage when shaking on the sea.
The machine is put near the container door, then the customer can take out the machine easily
Delivery Detail: 30 DAYS



5. Our Services

(1) Installation and trainning of tile roofing sheet making machine

(2) After srevice of the machine

a. One year guarantee for whole machine

b. 24 hours technical support by email or calling



1. One year warranty, whole life technical support.
2. Installation & adjustment : We can take a video for the customer and the customer can also come to our factory, we can train customer how to install and adjust the machine.
3. Oversea service: the buyer should charge of visa, return ticket, food and accommodation overseas and USD70/person/day salary.



FAQ



1. Does one machine can only produce one style panel profile?
Not exactly.For wider and double layer making machine. It can produce more than 6 kinds of panels.



2. Do you have after sales support?
Yes, we are happy to give advice and we also have skilled technicians available across the world.We need your machines running in order to keep your business running.



3. How to visit your company?
a.Fly to Beijing airport: By high speed train From Beijing Nan to Cangzhou Xi (1 hour), then we can pick up you.
b.Fly to Shanghai Airport: By high speed train From Shanghai Hongqiao to Cangzhou Xi(4.5 hours), then we can pick up you.



4. What can you do if the machine broken?
Our machine's warranty period is 12months,if the broken parts can't repair,we can send the new parts replace the broken parts freell,but you need pay the express cost yourself.if after warranty period,we can through negotiationfor to solve the problems,and we supply the technical support for the whole life of the equipment.



5. Can you be responsible for transport?
Yes,please tell me the destination port or address.we have rich experience in transport.



6. You are trade company or factory?
We are trade company but we also have own factories. Building trade company is just for exporting various types of cold roll forming machines.



7. Why your price is higher than others?
As we persist on that each factory should put quality at the first place. We spend time and money on developing How to make machines much more automatic, accurate and high quality. We can make sure thatour machine could use more than 20 years without any problem. We can provide 2 years free qualityassurance.



8. How long the machine could be made?
Normally speaking, welded pipe making machine could be made without 45 working days. If you need machines in a hurry, we can make it for you less than a month.
