Metal step tile with filming for roofing sheet rolling forming machine

Metal step tile with filming for roofing sheet rolling forming machine
Metal step tile with filming for roofing sheet rolling forming machine Metal step tile with filming for roofing sheet rolling forming machine Metal step tile with filming for roofing sheet rolling forming machine Metal step tile with filming for roofing sheet rolling forming machine Metal step tile with filming for roofing sheet rolling forming machine Metal step tile with filming for roofing sheet rolling forming machine

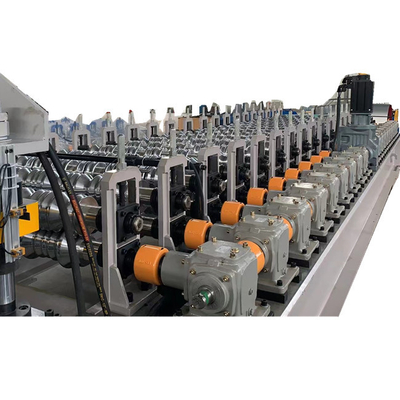

Large Image :  Metal step tile with filming for roofing sheet rolling forming machine

Product Details:
Place of Origin: China
Brand Name: ZTRFM
Certification: CE
Model Number: 1000
Payment & Shipping Terms:
Minimum Order Quantity: 1 set
Price: on discuss
Packaging Details: 1.One 40ft container for loding one set machine with manual decoiler. 2.All components fixed by steel wire with container.
Delivery Time: 60 working days after receving deposit
Payment Terms: T/T, L/C, Western Union
Supply Ability: 20 sete per month

Metal step tile with filming for roofing sheet rolling forming machine

Description
Type:: Metal Step Tile Machine Dimension(L*W*H):: 8700*1550*1910mm
Shaft Material:: 45# High Grade Steel Production Capacity:: 8-12 M/min 10 Piece
Power(W):: About 12KW Roll Material:: 45# High Grade Steel
Frame Material:: 300 H-high Grade Steel Cutting Type:: Hydraulic Cutting
Size Of Container:: 40GP
High Light:

portable metal roofing machine

,

glazed tile forming machine

            Metal step tile with filming for roofing sheet rolling forming machine

Metal step tile with filming for roofing sheet rolling forming machine is used to make either supporting the normally coil or the filmed coil with functions. Those roofing sheets are used in building constructions, decoration, printing, packing, electronics, communication industries, aluminum panel solar mounting structure etc.

Metal Step Tiles Aluminium Roofing Sheet or filmed roofing sheet Features :

1. Compared to a typical composition shingle roof or cement roof, metal Step Tiles Roofing Sheet is much lighter. This helps it withstand an earthquake.

2.Wind-resistant: Its interlocking design helps it withstand the strong wind.

3. Leakage-proof. Filmed Step Tiles Roofing Sheet is good for the rainy areas.

4. Hailstone-resistant: Such corrugated metal roofing sheet can protect the building from the hailstone.

5.Noise-resistant: Step Tiles Aluminium Roofing Sheet shingle deadens the sound of the rain and hailstone.

filmed coil

Take the following drawing profile of the step tile for your reference to show you more details about this machine:

filmed step tile

Metal step tile with filming for roofing sheet rolling forming machine

filmed step tile rolling forming machine

Suitable material PPGI coils & Aluminium coils ;0.5-0.6mm Filmed coil with 30mm
Working speed About 8 to 11m/min
Step distance Adjustable according to requirement (>=250mm)
Power Requirement Main motor power: 7.5 Kw(Depend on final design)
Hydraulic station power: 5.5Kw(With the energy tank)
Roller-Material No.45 steel, plated with chrome on surface.

Material-cutter,

pressing die

Cr12 mould steel with quench treatment, HRC58-60
Material of shaft High quality 45# steel, Dia. is 80mm.Roller grinder milling.
Shaft diameter 80mm
Controlling system Mitsubishi PLC & converter
Total weight of machine About 11000 KGS
Machine's size About 18m×1.8m× 1.5m (Depend on final design)



elements of the metal roofing sheet machine

Why it belongs to high quality step tile rolling forming machinery:

Roll Forming System

1,Roller material is high grade No.45 forged steel plated with hard chrome, by digital- controlled procession.

2,40mm thickness wall for forming system to ensure machine 15 years long life.

rollers of the machine

High Accuracy processing in shaft and rollers:

1,Shaft material is No.45 steel with diameter 80mm with keynote, strong and durable.Shafts for rollers are tooled by grinding machine 2 times. Ensure product accuracy.

2,Finished shafts from grinding machine,rollers on these shafts can ensure final sheet accuracy.

shaft processing

Automatic & Easy Operate

1. Mitsubishi PLC with touch screen. Friendly man-machine interaction.The system is simple to learn and easy to operate.

2. Automatic Operation:once you set quantity and length of product,machine will produce product automatically.

Metal step tile with filming for roofing sheet rolling forming machine 6

Packaging Details
1. One *40GP container for loading one set of machine with mechanical decoiler;

2. The whole Wiped Anti Rust Oil, PLC controller covered by foam film;

3.Spare parts and some small parts packed in plastic tooling box;

4.All Components Fixed by steel wire with Container. Suitable for long time sea shipping.

Delivery Time
Machine ready within 60 days after getting 30% deposit and confirming contract details from buyer and sellers.

As to the hydraulic decoiler and the stacker, it is optional.

Here is Metal step tile with filming for roofing sheet rolling forming machine working video for your reference:
