Cable tray and cover profile rolling forming machine

Cable tray and cover profile rolling forming machine
Cable tray and cover profile rolling forming machine Cable tray and cover profile rolling forming machine Cable tray and cover profile rolling forming machine Cable tray and cover profile rolling forming machine Cable tray and cover profile rolling forming machine Cable tray and cover profile rolling forming machine

Large Image :  Cable tray and cover profile rolling forming machine

Product Details:
Place of Origin: China
Brand Name: ZTRFM
Certification: CE
Model Number: ZTAC
Payment & Shipping Terms:
Minimum Order Quantity: 1 set
Price: under discuss
Packaging Details: Nude with anti-oil package
Delivery Time: 90 working days
Payment Terms: L/C, T/T
Supply Ability: 30 sets per month
Contact Now

Cable tray and cover profile rolling forming machine

Description
Highlight:

cable tray roll forming machine

,

cover profile forming machine

,

light keel roll forming machine with warranty

Cable Tray and Cover Profile Rolling Forming Machine
A cable tray system is used to support insulated electrical cables used for power distribution, control, and communication. Cable trays are mechanical support systems that provide a rigid structural system for electrical cables, raceways, and insulated conductors used for electric power distribution, control, signal instrumentation, and communication.
Metal cable trays are made of galvanized steel, stainless steel, and aluminum. There are many sizes, here we take the small size from 50 to 400mm as an example to show how the machine is designed.

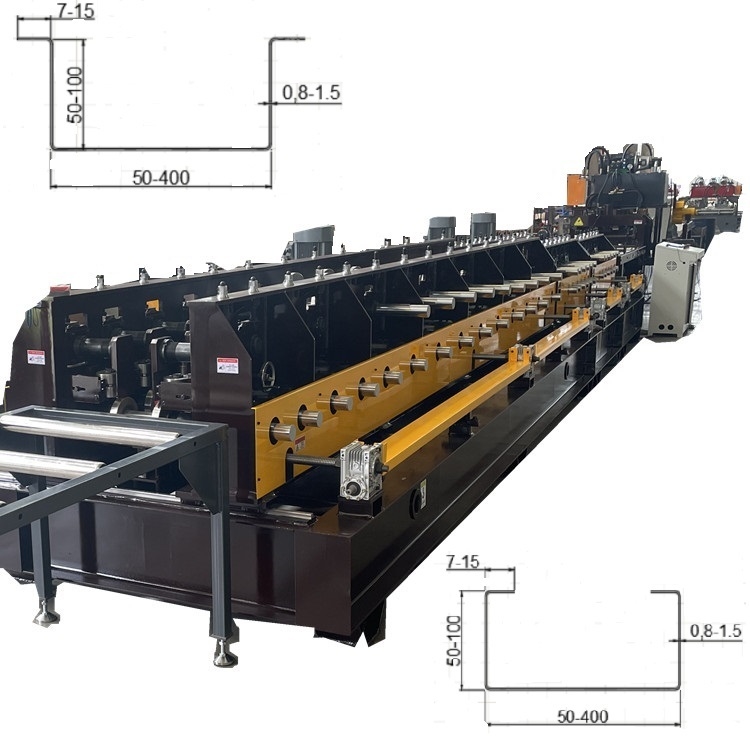

Reference Drawings
Cable tray and cover profile rolling forming machine 0 Cable tray and cover profile rolling forming machine 1 Cable tray and cover profile rolling forming machine 2
Machine Examples

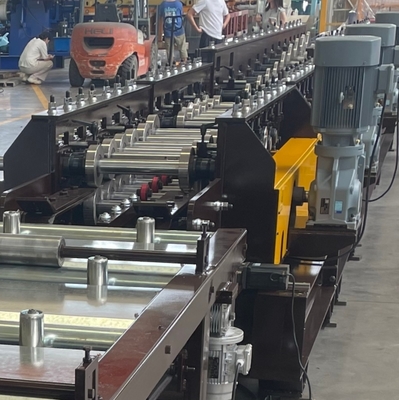

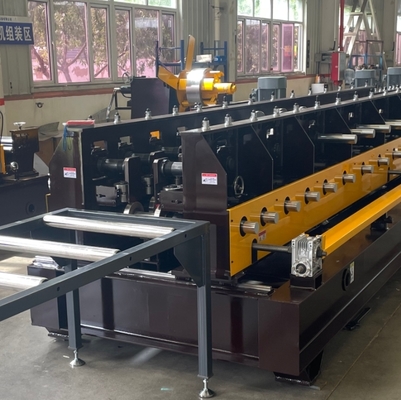

This is for cable tray rolling forming machine:
Cable tray and cover profile rolling forming machine 3

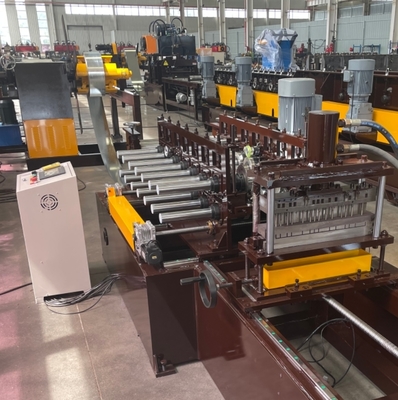

This is for the cable cover profile rolling forming machine:
Cable tray and cover profile rolling forming machine 4
Machine Specifications
Parameter Specification
Coil thickness 0.8-1.5mm
Coil width 60-420 mm
Suitable Raw Materials Galvanized steel coil
Yield Strength ≤235Mpa
Length tolerance ± 1mm for 3000mm
Line Speed 8-16 m/min
Standard Configuration
  1. 3Ton Hydraulic decoiler set 1
  2. Leveling/cutting/punching unit set 1
  3. Main roll forming machine set 1
  4. Hydraulic station set 1
  5. Conveyor Belt system set 1
  6. Run out table set 1
Cable tray and cover profile rolling forming machine 5 Cable tray and cover profile rolling forming machine 6
Key Features

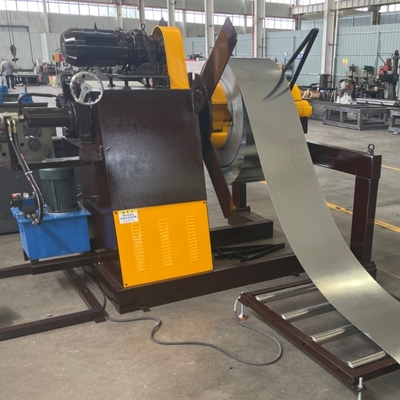

  • The decoiler is optional - you can choose either manual decoiler or hydraulic decoiler
  • Guiding system adjustable for different width of coil

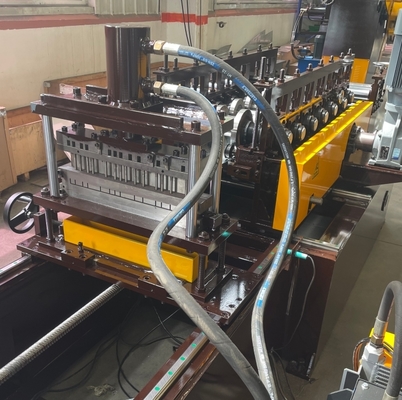

  • Punching part mold adjustable for different width (each time 2 rows punching)
  • Higher speed available with additional punching molds
  • Before shearing and convey table solves problem of changing cutter for different sizes
  • Main rolling forming machine has longer shaft with frame along shaft for different sizes
  • Punching needles are easily adjustable at the back
Cable tray and cover profile rolling forming machine 7 Cable tray and cover profile rolling forming machine 8
This machine handles small sizes of cable tray (bottom width from 50 to 400mm). Larger sizes are available upon request. The cover machine width is also adjustable.
Note: For different sizes, you do not need to change the cutter blade even after shearing.
Video Reference

Tag:

light steel keel roll forming machine,

metal stud and track roll forming machine,

t bar roll forming machine
