Product Details:
|
Condition: | New | Recoiler: | 5 Ton Hydraulic Recoiler |
---|---|---|---|
Main Motor Power: | 5.5kW | Feeding: | Servo Coil Feeder |
Frequency: | 50Hz | Punching Die: | 13 Punching Dies |
Overall Dimension: | 4000mmX700mmX900mm | Voltage: | 380V |
Function: | Supermarket Light Duty | Speed Of Rolling: | 25 Meter Per Minute |
Material Of Shafts: | 40Cr Steel With Tempering | Original: | Made In China |
Roller: | Roller Material: Cr12 | ||
Highlight: | Affordable Omega Roll Forming Machine,Light Duty Omega Roll Forming Machine,Supermarket Omega Roll Forming Machine |

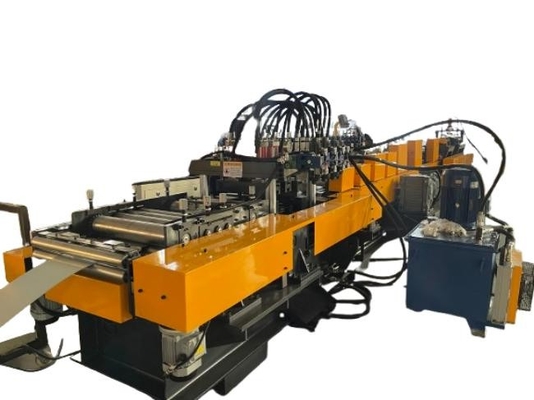

Omega Roll Forming Machine
Light Gauge steel roll forming machine is the most popular machine and its product includes stud, track, furring channel, main channel (primary channel), carrying channel, wall angle, corner angle, edge bead, shadow line wall angle, top hat, clip, etc, our machine has an extensive use in Drywall system, Ceiling system and Floor system. Thickness is normally 0.4-0.6mm or up to 1.2mm.
We could make roll forming machine with flying cut system to make working speed faster around 40m/min. And according to your drawing, we offer you double-row roll forming machine or triple-row roll forming machine that you could make two or three profiles in one machine, it reduces your machine cost and make it more affordable.
Example Profiles
Working flow:
Omega Roll Forming Machine
Technical standard
Equipment name:LA series Several shape steel change roller forming equipment | Unit type :LA(30)-40 | Motor for 15KW drive | ||||||||||||||||||||||||||
1 | Forming host | feed | Guide shaft + guide wheel | |||||||||||||||||||||||||
leveling | Upper three and four + two channels, full solid shaft heat treatment and fine car after plating | |||||||||||||||||||||||||||
Main molding | 16 channels (one of them is 72-80 degrees) | |||||||||||||||||||||||||||
20A chain | ||||||||||||||||||||||||||||
Transfer | With transmission, the upper and lower shaft gear drive | |||||||||||||||||||||||||||
The punch cut |
Note 1: If the main body of front double punch body should be used, the main body of front single punch body " should be marked in Note 1; Note 2:The default long hole is the long bar hole Note 3: The default long hole in the direction is parallel to the forming direction. If the long hole is required to be perpendicular to the forming direction, mark "vertical" in Note 2; Note 4: The specifications of the required post-molding shear are: |
|||||||||||||||||||||||||||
2 | Control system | Main control cabinet | 1 | |||||||||||||||||||||||||
Change distribution box | 1 (mounted in middle of frame) | |||||||||||||||||||||||||||
External controller | 1 (easy to control forward and backward during production and commissioning) | |||||||||||||||||||||||||||
Main accessories brand | PLC (Panasonic, Japan), Relay (Schneider, France), proximity Switch (Otonix, Korea), Length Encoder (International premium brand) Touch Screen (Warren) | |||||||||||||||||||||||||||
3 | Drive | Master drive | electrical machinery | |||||||||||||||||||||||||
15kw | ||||||||||||||||||||||||||||
The punch cut | Hydraulic station power is 7.5KW + air cooler | |||||||||||||||||||||||||||
The fuel tank volume is 150 liters | ||||||||||||||||||||||||||||
Main brand | Solenoid valve oil research Yuci | |||||||||||||||||||||||||||
4 | Discharge machine | load | 4t | |||||||||||||||||||||||||
Hold tight way | Manual tight | |||||||||||||||||||||||||||
Brake | Spindle double hold tight | |||||||||||||||||||||||||||
5 | Testimony table | The length of the feeding | 6m | |||||||||||||||||||||||||
Testimony method | The frame body is welded with groove steel and Angle steel, and the roller is mounted on the surface | |||||||||||||||||||||||||||
6 | Performance parameter | Roller | Material:Cr12 | |||||||||||||||||||||||||
Processing technology: numerical control processing after heat treatment to HRC 58-60, fine car | ||||||||||||||||||||||||||||
轴 | Material:40Cr(φ60) | |||||||||||||||||||||||||||
Processing technology: CNC processing after quality treatment HRC 28-32, fine car electroplating | ||||||||||||||||||||||||||||
Weight | The whole machine weight is about 10 tons | |||||||||||||||||||||||||||
2. Production of product parameters | ||||||||||||||||||||||||||||
1 | Production product specifications |
Thickness of slab:0.8~2.0mm |
||||||||||||||||||||||||||
2 | Out of the board speed | High speed 28 m / minute, comprehensive speed 12 m / minute-18 m / minute (according to the number of holes); | ||||||||||||||||||||||||||
3 | Material applicable | Hot or hot dip galvanized strip steel with yield strength not higher than 440 Mpa | ||||||||||||||||||||||||||
3. Attached accessories and spare parts | ||||||||||||||||||||||||||||
Spare parts |
|
|||||||||||||||||||||||||||
Tool | 1 set | Instructions | 1 copy | |||||||||||||||||||||||||
Equipment color | Main body blue, white edge, frame gray black |
