Magic Version Light Frame Villa Rolling Machine Using C Channel And U Channel As Combination

Large Image : Magic Version Light Frame Villa Rolling Machine Using C Channel And U Channel As Combination

Product Details:

Place of Origin:	China
Brand Name:	ZTRFM
Certification:	CE,SGS
Model Number:	light steel keel

Payment & Shipping Terms:

Minimum Order Quantity:	1 set
Price:	under discuss
Packaging Details:	Nude with anti-rusting coil
Delivery Time:	45 working days
Payment Terms:	L/C, T/T
Supply Ability:	30 sets per month

Contact Now

Magic Version Light Frame Villa Rolling Machine Using C Channel And U Channel As Combination

Description

Feeding:	Servo Coil Feeder	Width:	Adjustable Type
Shearing:	Hydraulic Shearing Or Disk Shearing	Drive Mode:	Gear
Frame Type:	Memorial Arch Frame Of Thickness 30mm	Processing Speed:	8-12m/Min
Mateiral:	GI Steel	Roller Stations:	12
Size:	Customize	Work Pressure:	4kw
Rolling Station Number:	14 Stations	Production Capacity:	14-20 Meters Per Min
Material Of Rollers:	GCr12mov	Hydraulic Motor Power:	15kw And Servo Motor 11kw
Stacker:	Manual One Or Hydraulic One
Highlight:	Channel light keel roll forming machine , Magic light keel roll forming machine , china light keel roll forming machine

Magic version light frame villa rolling machine-using C channel and U channel as the combination
Magic version light frame villa rolling machine-using C channel and U channel as the combination is designed to make the 6 layers building by one machine. The material thickness could be from 0.8 to 2.0mm. The width adjustment could be from 89 to 300mm and all the operation could be finished with in the computer. The PLC control system is open source, it can accept all design software programme. In the following part, I will take the drawing for example to show more details of the machine and explain how it works.
Here are some drawing profiles for your reference:
Magic Version Light Frame Villa Rolling Machine Using C Channel And U Channel As Combination 0

Magic version light frame villa rolling machine-using C channel and U channel as the combination

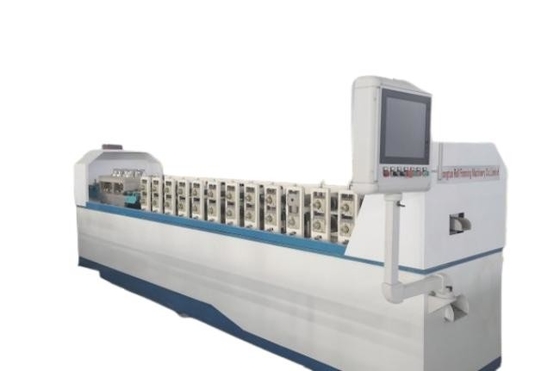

Here is the Magic version light frame villa rolling machine picture for your reference:

PLC		PLC control
Changeable distribution box		1 (installed in the middle of the rack)
External controller		1 (can facilitate the advancement and retreat in the production process and debugging process)
Main accessories origin		PLC (Panasonic, Japan), relay (Schneider, France), proximity switch (Ortonix, Korea)
Printer		One-piece inkjet (single nozzle, fixed side waist high spray)
power system		Servo motor 22KW+ curved bevel gear reducer
Mian hydraulic		Hydraulic station power 11KW + air cooling
		Fuel tank capacity 200 liters
Small hydraulic station		Hydraulic station power 3.75kw + heat sink; fuel tank volume 30 liters (underline flange mold)
Main parts origin		Solenoid valve oil research and development
Supporting weight: 5 Ton
Expansion	Hand rail
	The center of the four links is outwardly supported
Driven	Motor drive, automatic discharge
Supporting length 12 meter, it has two parts, one is for 6 meter and another is for 3 meters
Metahod	The frame body is welded with angle steel and angle steel, and the surface is loaded with rollers.
Roller	Material:Gcr12
	Processing technology: after CNC machining, heat treatment to HRC58-60, and then fine car
Shaft	Material: 40Cr
	Processing technology: after CNC machining, quenching and tempering treatment HRC28-32, and then fine plating
Weight	The weight of the whole machine is about 9 tons.
