Villa Frame Rolling Forming Machine C140 14 Rows Rollers

Large Image : Villa Frame Rolling Forming Machine C140 14 Rows Rollers

Product Details:

Place of Origin:	China
Brand Name:	ZTRFM
Certification:	CE,SGS
Model Number:	light steel keel

Payment & Shipping Terms:

Minimum Order Quantity:	1 set
Price:	Negotiable
Packaging Details:	Nude with anti-rusting coil
Delivery Time:	45 working days
Payment Terms:	L/C, T/T
Supply Ability:	30 sets per month

Chat Now

Villa Frame Rolling Forming Machine C140 14 Rows Rollers

Description

Rollers:	14rows	Slitting Piece:	5 To 10
Series Number:	KH33-62	Operation Style:	Full Automatic
Processing Speed:	8-12m/Min	Feeding:	Servo Coil Feeder
Product Cutting Length:	PLC Control	Material Thickness:	0.45-0.7mm
Diameter Of Shafts:	Φ70mm	Overall Dimension:	4500mmX700mmX900mm
Roller Stations:	10-12	Size:	4800х1800х1400
Condition:	New	Cutting:	Hydraulic Servo Flying Saw Cutting
Highlight:	C140 Villa Frame Rolling Forming Machine , Villa Frame Rolling Forming Machine , 14rows light keel roll forming machine

Villa Frame Rolling Forming Machine C140

C140 villa frame machine is designed to make C140 in batch fully automatically.

Compared with C89, C140 is much bigger than C89, C100 and others. C140 is good when you want to build higher layer building like 6 layers, 5 layers out wall stud and track.

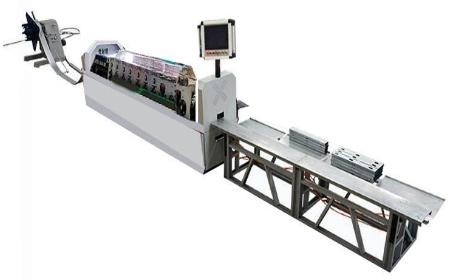

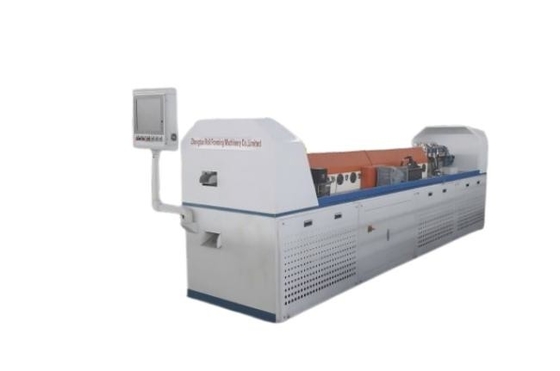

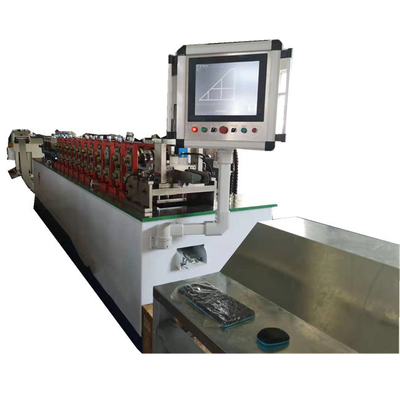

Here is C140 villa frame machine pictures for your reference.

Villa Frame Rolling Forming Machine C140 14 Rows Rollers 0

Villa Frame Rolling Forming Machine C140 14 Rows Rollers 1

Machine working flow:

Villa Frame Rolling Forming Machine C140 14 Rows Rollers 2

Supported material

G550 high tension grade plate, zine coated plate,

350 to 550 MPA (G 450 middle carbon steel in better.)

Material thickness

0.7 to 1.4mm

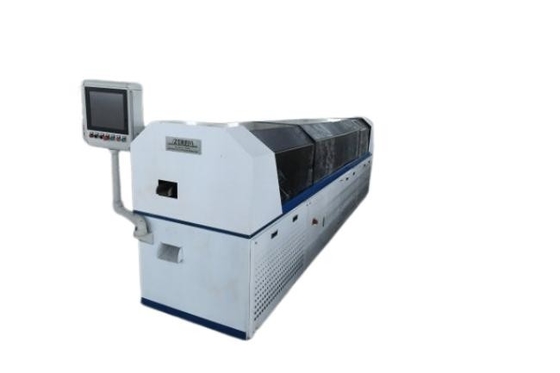

Villa Frame Rolling Forming Machine C140

Villa Frame Rolling Forming Machine C140 14 Rows Rollers 3

Villa Frame Rolling Forming Machine C140 14 Rows Rollers 4

Main elements of the villa machine

Manul decoiler

ID is 450 - 550mm
Coil Width is 300 mm

Coil load 3 ton

Punchin device 6 sets

Punchine die material (SKD11)

1.50X12mm side hole

2. Beehive holes

3.Function bolt for easy installation

4. 60x30mm for cable tray holes

5. 89x50 for the square holes

6. web hole and 45 degree bending or shearing.

Note: if your country bolt sizes are different, please tell me in advance.

Villa Frame Rolling Forming Machine C140 14 Rows Rollers 6

Main rolling forming machine

1. Transmission, we use gear, chain as tranmission.

2. Main servo motor: 5.5kw

3. Roller material: SKD11

4. Shaft mateiral : 40Cr

5. Forming speed: 30m/min

6. Production capacity: 80 to 100 square meter per day, if you work 8 hours per day.

Shearing System

Hydraulic station

1. Power: 5.5kw

2. Oil tank: 120OL

3. Brand: Yuken series
