C89 Villa Steel Framing Machine For 0.7mm Thickness

Large Image : C89 Villa Steel Framing Machine For 0.7mm Thickness

Product Details:

Place of Origin:	China
Brand Name:	ZTRFM
Certification:	CE,SGS
Model Number:	light steel keel

Payment & Shipping Terms:

Minimum Order Quantity:	1 set
Price:	Understand discuss
Packaging Details:	Nude with anti-rusting coil
Delivery Time:	45 working days
Payment Terms:	L/C, T/T
Supply Ability:	30 sets per month

Contact Now

C89 Villa Steel Framing Machine For 0.7mm Thickness

Description

Transmission:	Gearbox	Plc Control:	Delta Brand
Forming Speed:	12m/min	Width:	Adjustable Type
Key Selling Points:	Automatic	Work Pressure:	4kw
Control System:	PLC	Shearing:	Hydraulic Shearing
Working Type:	Rolling Forming Machine	Material Tension Grade:	345MPa
Working Method:	Rolling Forming Machine	Condition:	New
Strip Width:	Approx 156mm	Foam Machine:	Italy OMS & SAIP Brand
Highlight:	0.7mm Thickness Villa Steel Framing Machine , Villa Steel Framing Machine , C89 Villa Steel Framing Machine

C89 Villa Steel Framing Machine For 0.7mm Thickness

Our Light Gauge Steel House Frames Forming Machine, its processing thickness and formed sizes are international standards. The thickness is from 0.7mm to 1.2mm, the suitable material is galvanized steel strip Q235 or G550. The formed sizes are C89*41, C100*41 and C140*41. C89*41 and C140*41 are more popular.

The light steel frame machine is to make house steel frame, lighter mass, more efficient construction, safe and reliable structure, good seismic performance, improved thermal and acoustic insulation and indoor utilisation, and designed to offer increased production speed, greater flexibility and increased reliability, which is best suited for residential and light commercial projects. Producing profiles from 3.5" (89mm) to 6" (150mm) up to 18gauge (1.20mm) thickness. C89 steel frame machine is suited to construct walls, floors and roofs for 1 – 3 level residential, modular and transportable units, and light commercial construction.

Here Is The One Drawing Profile For Your Reference:

C89 Villa Steel Framing Machine For 0.7mm Thickness 0

Working flow
Decoile r------ feeding------roll forming ---------punching-------cut to length-----output table

C89 Villa Steel Framing Machine For 0.7mm Thickness 1

C89 Villa Steel Framing Machine For 0.7mm Thickness

C89 Villa Steel Framing Machine For 0.7mm Thickness 2

Machine Components

Name	Quantity(set)
De-coiler	1
Feeding guiding Device	1
Roll Forming Part	1
Hydraulic cutting Device	1
Computer control box	1
Hydraulic System	1
Run-out table	1

C89 Villa Steel Framing Machine For 0.7mm Thickness 3

Parameter

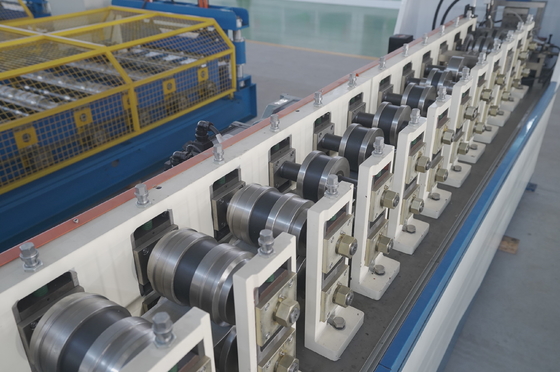

Main rolling forming machine

1. Transmission, we use gear, chain as tranmission.

2. Main servo motor: 5.5kw

3. Roller material: SKD11

4. Shaft mateiral : 40Cr

5. Forming speed: 30m/min

6. Production capacity: 80 to 100 square meter per day, if you work 8 hours per day.

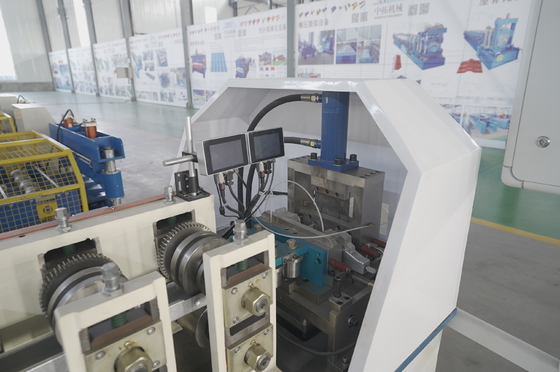

Shearing System

Hydraulic station

1. Power: 5.5kw

2. Oil tank: 120OL

3. Brand: Yuken series

Fuel tank capacity:160Lwith cooling unit,even long time processing,it won’t generate heat.

post-molding shear,single blade blanking with Japanese SKD die block steel.

Design software

Brand: vertex system

It is optaical, you can choose others. Or if your house sizes are fixed, you do not need to buy.

And if you feel manual inputting parameters is okay, and you also do not need to buy the software.

PLC Control Sytem

1. USB input the documents

2. IPC computer on set(operator windows system 7 required)

3. It allows you to control holes position, distance.

4. Control shearing position.

5. Control production pieces.

C89 Villa Steel Framing Machine For 0.7mm Thickness 4

C89 Villa Steel Framing Machine For 0.7mm Thickness 5

C89 Villa Steel Framing Machine For 0.7mm Thickness 6

Application

C89 Villa Steel Framing Machine For 0.7mm Thickness 7
