Magic Version Light Frame Villa Rolling Machine Using C Channel And U Channel

Large Image : Magic Version Light Frame Villa Rolling Machine Using C Channel And U Channel

Product Details:

Place of Origin:	China
Brand Name:	ZTRFM
Certification:	CE,SGS
Model Number:	002

Payment & Shipping Terms:

Minimum Order Quantity:	1 set
Price:	under discuss
Packaging Details:	Nude with anti-oil package
Delivery Time:	45 working days
Payment Terms:	L/C, T/T
Supply Ability:	30 sets per month

Contact Now

Magic Version Light Frame Villa Rolling Machine Using C Channel And U Channel

Description

Voltage:	380V/50Hz/3Phase	Roller Stations:	10-12
Material Of Rollers:	GCr12mov	Mode:	Cross T Rolling Forming Machine
Shearing Type:	Hydraulic Post Shearing	Control System:	PLC
Function:	Oval Tube Machine	Size:	Customize
Main Power:	7.5 Kw For Each Part	Raw Material Thickness:	1.5-3 Mm
Uncoiler:	2 Tons	Rolling Station Number:	14 Stations
Machine Size:	58006201200mm	Plc:	Control
Highlight:	Magic c channel roll forming machine , u c channel roll forming machine , Magic u channel roll forming machine

Magic Version Light Frame Villa Rolling Machine-using C Channel and U Channel

Magic version light frame villa rolling machine-using C channel and U channel as the combination is designed to make the 6 layers building by one machine.The material thickness could be from 0.8 to 2.0mm.The width adjustment could be from 89 to 300mm and all the operation could be finished with in the computer.The PLC control system is open source, it can accept all design software programme. In the following part,I will take the drawing for example to show more details of the machine and explain how it works.

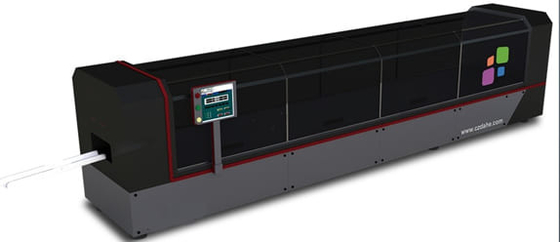

Here are some profile pictures:

Magic Version Light Frame Villa Rolling Machine Using C Channel And U Channel 0

Magic Version Light Frame Villa Rolling Machine Using C Channel And U Channel 1
Magic Version Light Frame Villa Rolling Machine-using C Channel and U Channel

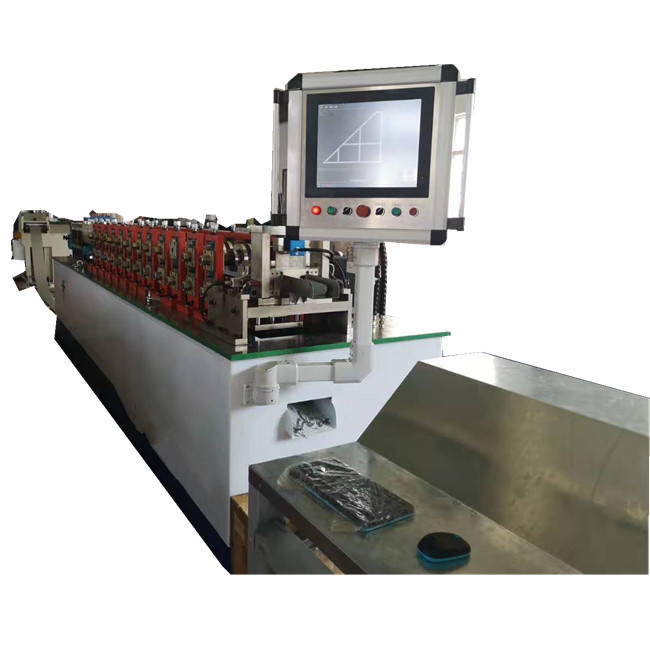

Here is the Magic version light frame villa rolling machine picture for your reference:

Magic Version Light Frame Villa Rolling Machine Using C Channel And U Channel 3

PLC		PLC control
Changeable distribution box		1 (installed in the middle of the rack)
External controller		1 (can facilitate the advancement and retreat in the production process and debugging process)
Main accessories origin		PLC (Panasonic, Japan), relay (Schneider, France), proximity switch (Ortonix, Korea)
Printer		One-piece inkjet (single nozzle, fixed side waist high spray)
power system		Servo motor 22KW+ curved bevel gear reducer
Mian hydraulic		Hydraulic station power 11KW + air cooling
		Fuel tank capacity 200 liters
Small hydraulic station		Hydraulic station power 3.75kw + heat sink; fuel tank volume 30 liters (underline flange mold)
Main parts origin		Solenoid valve oil research and development
Supporting weight: 5 Ton
Expansion	Hand rail
	The center of the four links is outwardly supported
Driven	Motor drive, automatic discharge
Supporting length 12 meter, it has two parts, one is for 6 meter and another is for 3 meters
Metahod	The frame body is welded with angle steel and angle steel, and the surface is loaded with rollers.
Roller	Material:Gcr12
	Processing technology: after CNC machining, heat treatment to HRC58-60, and then fine car
Shaft	Material: 40Cr
	Processing technology: after CNC machining, quenching and tempering treatment HRC28-32, and then fine plating
Weight	The weight of the whole machine is about 9 tons.

Here are some pictures shows the finished products of Magic version light frame villa rolling machine:

This type design of Magic version light frame villa rolling machine in some degree, it can save lost of cost in investment. It is easy for installation and more universal. Please check our other designs in our websites. If you have any problem, please contact us at any time.
