Villa House Structure Making Machine

Villa House Structure Making Machine
Villa House Structure Making Machine Villa House Structure Making Machine Villa House Structure Making Machine

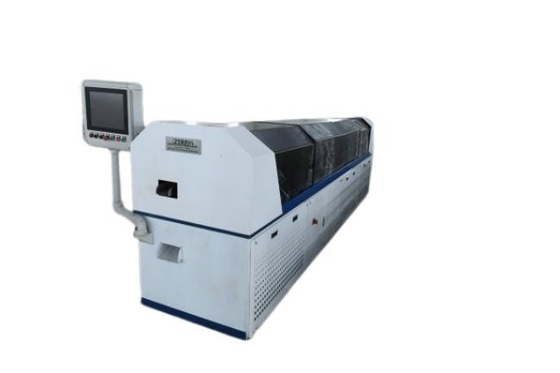

Large Image :  Villa House Structure Making Machine

Product Details:
Place of Origin: China
Brand Name: ZTRFM
Certification: CE,SGS
Model Number: 002
Payment & Shipping Terms:
Minimum Order Quantity: 1 set
Price: under discuss
Packaging Details: Nude with anti-oil package
Delivery Time: 45 working days
Payment Terms: L/C, D/A, T/T
Supply Ability: 30 sets per month
Contact Now

Villa House Structure Making Machine

Description
Cutting Type: Hydraulic Cutting Weight: About 3.5T
Material: Galvanized Steel Roll Diameter: 70mm
Operation Style: Full Automatic Rolling Shaft: Shaft Diameter: 75 Mm
Speed Of Punching: 120m/min Machine Weight: 5 Ton
Working Mode: Fully Automatic By PLC Speed: 15 To 25 Meter Per Minute
Main Motor Power: 5.5kW Raw Material Thickness: 1.5-3 Mm
Roller Stations: 12 Shearing Type: Hydraulic Post Shearing
Highlight:

Villa House Structure Making Machine

,

House Structure Making Machine

Villa House Structure Making Machine

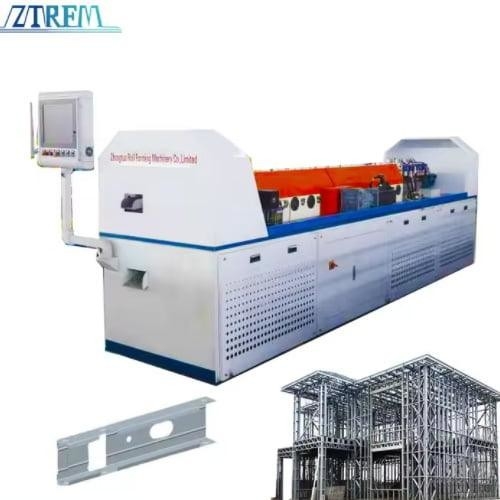

Villa House Structure Making Machine (roll forming machine) is a fully automatic production line for house structure channel profile.

This light gauge steel framing C channel profile roll forming machine is specially designed for the production of light steel villa house structure.

Only need to input the technical drawing of the steel villa housing structure. The machine will automatically calculate the raw materials consumption, holes punch positions, each section lengths by the industrial computer installed on the equipment.

Then it will start the production one by one according these data and jet the code on each section for easy fabrication. It can save many labors cost and achieve fully automatic production.The machine includes uncoiler, straightener, multi pre-punch stations, main roll forming machine, code inkjet machine, shearing machine, automatic control system.According with the prefabricate request for the light gauge steel framing structure.

Here is a profile pictures:

Villa House Structure Making Machine 0

Villa House Structure Making Machine

Villa House Structure Making Machine 1

ZTRFM Offer Full Solution For The Light Gauge Steel Framing Housing Machines As Following

- C75 LGS framing Making machine

- C89 LGS framing making machine

- C140 LGS framing roll forming machine

- Flexible Light Gauge steel framing making machine

- Mobile Light gauge steel framing making machine

Villa House Structure Making Machine 2

Villa House Structure Making Machine 3

By simply input the requested width on touch screen, the servo motors can drive the forming rollers to the position produce different widths of cable trays on the same machine.

Machine Features

Fast speed

Design fast :Equipped with international advanced QSS software, equipment can be initiated in 30 minutes.

Fast speed production: equipment has a production speed of 300-700 m/hour and 2800m/hour maximum.



High accuracy



1. Size: The light gauge steel framing C channels produced by KINGREAL equipment can reach +_ 0.5mm for the accuracy.

2. Forming standard: KINGREAL equipment can guarantee the precision of products for the flexible machine.

3. Maintenance and repair: independent molding, punching die statistics interface equipped, strong technical support for after-sales provided.



Flexible solution



1. With its rich experiences on cold roll forming equipment manufacturing, KINGREAL uses the modular design concept to ensure the standardization of equipment parts to achieve fast production delivery.



2. The parts in the production process are completed on the automatic machining center. Reduce human dependence and ensure the sustainability of equipment quality.





High quality roll forming



1. CNC control system is the same as the design of the international mainstream equipment, using independent independent intellectual property control software to achieve data linkage and remote network diagnosis and maintenance.

2. Choose the highest-end and most reliable configuration as much as possible to ensure the quality of the equipment is excellent, reliable and safe. The key parts are selected from well-known brands at home and abroad to fulfill our brand route.

3. Due to continuous innovation and continuous improvement of product construction concept, we provide high-precision and sturdy equipment for our customer

Technical Specification Of Villa House Structure Making Machine:Villa House Structure Making Machine 4

Raw materials 0.7-1.2mm, G300-G500 zin plated, aluminumzinc plated
Raw material width ≤1050mm
Raw materials weight ≤8T
Raw material ID 460～510mm
Raw material OD ≤1200mm
Material thickness 0.7-1.2mm
Products width 75mm/ 89mm/140mm for your choice
Punch speed 2.5-5m/min
Production line Fully automatic
Maximum forming speed 12 m / min
Roll Forming stands 22 Rollers station
Forming rollers materials GCr15 quenching treatment
Driving method Gearbox driving
Electrical control system PLC control
Power input 3 Phases 380V 50HZ or according with your request
Machine Power ~ 16.5 KW
Dimension 32*2.3*1.8M (L*W*H)

Machine Application

Villa House Structure Making Machine 5

Villa House Structure Making Machine 6

Villa House Structure Making Machine 7

Villa House Structure Making Machine 8
