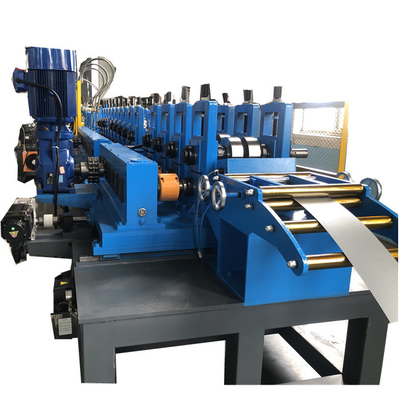

SGS Stud Track Steel Wall Framing Profile Rolling Forming Machine Precise

                                           Stud & track steel wall framing profile rolling forming machine

High speed 120m/min Stud & track steel wall framing profile rolling forming machine with 4 or 5 holes punching together. Steel stud and wall framing systems have enhanced strength making them tougher, safer and more reliable for load bearing capacities. And our machine can make lipped wall studs are available in various widths and gauges from 0.50BMT to 1.15BMT. Bell mouth service holes are punched at 500mm centres eliminating the need for cabling grommets. The knurled face along the stud flange provides a positive screw point location.Studs can be boxed or spliced to extend the overall length or to provide strengthening if required.

High speed 120m/min Stud & track steel wall framing profile rolling forming machine:

Advantages of High speed stud and track rolling forming machine.

1. For such machine, normally we will design 4 or 5 holes punching station by one machine and then it can reach high speed when working. As mostly the speed is delayed by the punching part.

• Gearbox transmission, to make sure high speed running meanwhile small noise and more durable and long time to use.
• Safety, with protection cover, when machine running, it is more faster.
• Hydraulic station with the energy tank and cooling system and then it can do the non-stop punching.
• Decoiler with leveling and dotting, for more accuracy and long time to use.

• Machine design with the oiling system, then even if in high speed running, it will not remove the zine coating on the rollers. It also can cool the rollers.
• With 4 holes punching: For example if one piece is 6 meter long , there are around 12 holes and then it only punch 3 times and then finish the hole punching.

• PLC control, for automatic sizes changing:

• As the speed and production rate, worker can not handle so fast production rate then you can choose the automatic stacker like the following.

• As to the details, in order to make sure the machine working steady, we use the molding frame of thickness 45mm and gearbox transmission.

High speed 120m/min Stud & track steel wall framing profile rolling forming machine:
