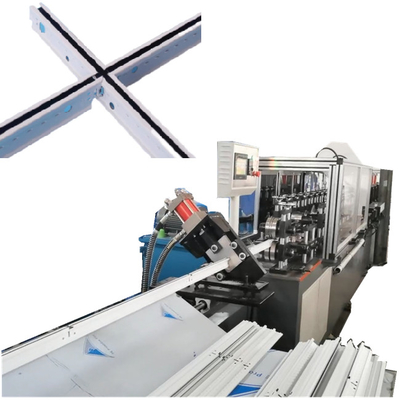

3d Groove T-Grid T-Runner Rolling Forming Machine Fully Automatic Type

3d Groove T-Grid T-Runner Rolling Forming Machine Fully Automatic Type
3d Groove T-Grid T-Runner Rolling Forming Machine Fully Automatic Type 3d Groove T-Grid T-Runner Rolling Forming Machine Fully Automatic Type 3d Groove T-Grid T-Runner Rolling Forming Machine Fully Automatic Type 3d Groove T-Grid T-Runner Rolling Forming Machine Fully Automatic Type 3d Groove T-Grid T-Runner Rolling Forming Machine Fully Automatic Type

Large Image :  3d Groove T-Grid T-Runner Rolling Forming Machine Fully Automatic Type

Product Details:
Place of Origin: China
Brand Name: ZTRFM
Certification: CE, SGS
Model Number: 002
Payment & Shipping Terms:
Minimum Order Quantity: 1 set
Price: Negotiable
Packaging Details: Nude with anti-rusting coil
Delivery Time: 60 WORKING DAYS
Payment Terms: L/C, T/T,
Supply Ability: 30 SETS/MONTH

3d Groove T-Grid T-Runner Rolling Forming Machine Fully Automatic Type

Description
High Light:

3d fully automatic roll forming machine

,

CE fully automatic roll forming machine

                   3D groove T-grid T-runner rolling forming machine fully automatic type

3D groove T-grid T-runner rolling forming machine fully automatic type is designed to make the 3D groove T-grid T-runner in batch fully automatically. The T3D groove T-grid T-runner mainly solves the shortcomings of traditional ceiling suspended T-shaped keels, such as low load-bearing capacity, weak bending resistance, poor decoration, and difficulty in fixing heavy objects when decorating the ceiling, which cannot provide support for large ceilings. The T-shaped three-dimensional groove through keel is composed of a vertical rib plate part and a groove profile part, and the cavity and slide rail of the groove profile part are more conducive to the suspension and movement of the decorative object, The groove profile has a more three-dimensional visual effect.

Here are some popular sizes for your reference:

The sizes
Main T

45*15*0.4*3600mm

42*15*0.4*3600mm

38*15*0.3*3600mm

32*15*0.3*3600mm

0.225 piece/square meter
Middle T

45*15*0.4*1200mm

42*15*0.4*1200mm

38*15*0.3*1200mm

32*15*0.3*1200mm

1.35 piece/square meter
Cross T

45*15*0.4*600mm

42*15*0.4*600mm

38*15*0.3*600mm

32*15*0.3*600mm

1.35 piece/square meter

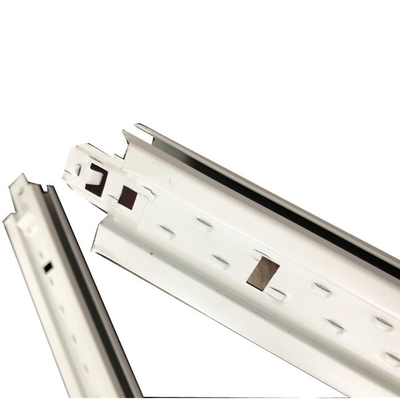

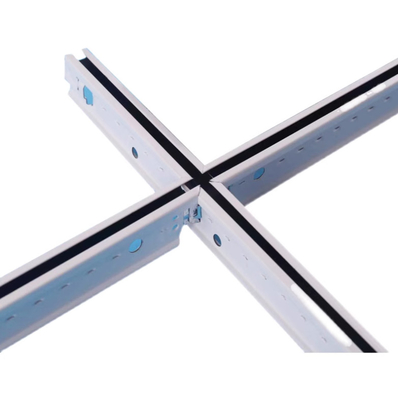

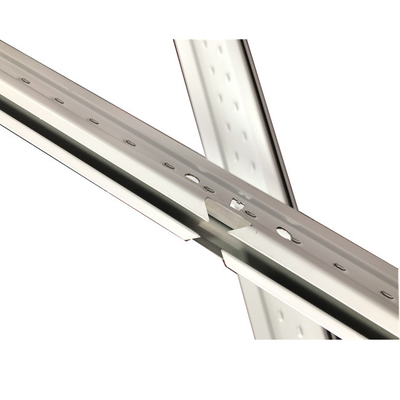

Here are some finished production pictures for your reference:

3d Groove T-Grid T-Runner Rolling Forming Machine Fully Automatic Type 0

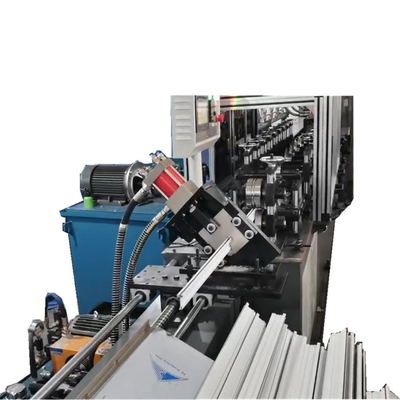

3D groove T-grid T-runner rolling forming machine fully automatic type:

3d Groove T-Grid T-Runner Rolling Forming Machine Fully Automatic Type 1

punching part

This part is for punching.

Main rolling forming machine

With the protection cover.



Frame welding: thickness 20mm, rust removal

Roller: Roller material Cr12MOV. Inner diameter 39, minimum roller outer diameter 90, quenched HRC 55-56, 19 roller station

Transmission: 4KW+reducer transmission, each track is chain transmission

Guide pillar: thickness 25, cadmium plated

Axis: 40CR steel adjusted to processing

Electric control: PLC+touch screen, fully automatic 8 mold materials SKD11, HRC 58-60 machine comes with 6 sets of punching middle hole molds and 2 shear molds (a total of 8 sets)

Shear length 6/8/10/12 feet and Brazilian dimensions

Here is 3D groove T-grid T-runner rolling forming machine fully automatic type working videos for your reference:
