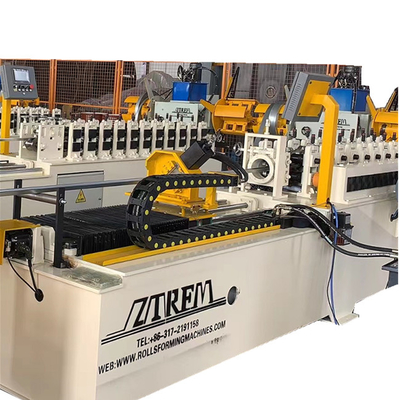

Galvanized Steel U Channel Roll Forming Machine Cr12 Metal Stud Machine

Galvanized Steel U Channel Roll Forming Machine Cr12 Metal Stud Machine
Galvanized Steel U Channel Roll Forming Machine Cr12 Metal Stud Machine Galvanized Steel U Channel Roll Forming Machine Cr12 Metal Stud Machine Galvanized Steel U Channel Roll Forming Machine Cr12 Metal Stud Machine Galvanized Steel U Channel Roll Forming Machine Cr12 Metal Stud Machine

Large Image :  Galvanized Steel U Channel Roll Forming Machine Cr12 Metal Stud Machine

Product Details:
Place of Origin: China
Brand Name: ZTRFM
Certification: CE, SGS
Model Number: 002
Payment & Shipping Terms:
Minimum Order Quantity: 1 set
Price: Negotiable
Packaging Details: Nude with anti-rusting coil
Delivery Time: 60 WORKING DAYS
Payment Terms: D/P, L/C
Supply Ability: 30 SETS/MONTH

Galvanized Steel U Channel Roll Forming Machine Cr12 Metal Stud Machine

Description
Raw Material: Galvanized Steel & H.R Rolling Shaft: Shaft Diameter: 60 Mm
Roller: Roller Material: Cr12 Rolling Station Number: 14 Stations
Work Speed: 0-70 M/min(without Knurling) 0-60m/min(with Knurling) Work Power: 7.5 Kw
Transmission: By Gear Box
High Light:

U Channel Roll Forming Machine Cr12

,

Cr12 Metal Stud Machine

,

Galvanized Steel Metal Stud Machine

               Fully automatic U channel for drywall U stabilizer rolling machine

Fully automatic U channel for drywall U stabilizer rolling machine is designed to make the U channel in the sped of 70 to 120 meter per minute in a fully automatic way. It is composed by the following elements: 1.5 T double head hydraulic automatic decoiler, Coil feeding & Leveling system, roll forming system set 1 Gear box transmission, servo fly cutting system, PLC control station, Hydraulic system set 1 YUKEN STANDARD, Packing system Full automatically and Tools & Spare parts. Here we take one drawing profile for your reference:

U channel drawing profile

Fully automatic U channel for drywall U stabilizer rolling machine pictures for your reference:

U channel rolling forming machine

Work flow for automatic U stabilizer line:

Working flow of U channel machine

More details of the elements Fully automatic U channel for drywall U stabilizer rolling machine

If you have more sizes of U, we do suggest to use the double head decoiler, as the machine working speed is very fast and you need to change the coil frequently.

Double head decoiler of U channel machine

As to the main rolling forming machine, if you want to reach the higher speed like to 70 meter per minute, the transmission only use the gearbox type and molding frame for working steady.

U channel rolling machine

As to the shearing part, we use the servo tracking flying shearing system to make sure the working speed can reach 70 to 80 meter per minute.

Flying tracking and shearing of U channel machine

As to the package system:

All the package system will be made fully automatically. By this way, the machine working is fully automatically, normally one worker for package and load the coil then okay. And then working speed is higher.

Pacakge machine of stacker

Automatic stacker
