680 Linear Panel Rolling Forming Machine Self Lock Standing Seam

                                        680 Linear self lock standing seam panel rolling forming machine

680 Linear self lock standing seam panel rolling forming machine is designed to make the self lock standing seam panels in batch fully automatically. Different with other standing seaming machine, this one the sizes are adjustable. The input coil width could be from 540 to 680nn, and then the valid width could be from 340 to 580mm. Let us check details from the following pictures:

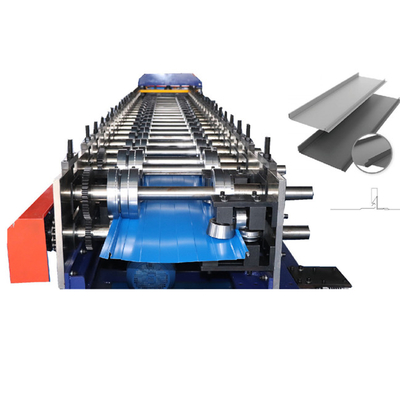

680 Linear self lock standing seam panel rolling forming machine:

680 Linear self lock standing seam panel rolling forming machine working flow:

Despoiler----steering into the board (importing the strip into the first roll of the molding machine correctly)-----embossing roller plate to make ribs and then traverse---big side forming roller----guiding rollers----cut---rolling forming machine --> finished product discharge

680 Linear self lock standing seam panel rolling forming machine design ideas:

The machine design, we use the linear system, the linear motor control the sizing changing.

The self-adjustable gusset machine is a single-roll forming unit that can produce a variety of width specifications. The machine is mainly composed of 3T passive loading frame, guiding device, 2-channel pinch roller, flat cutting device, forming host. , the discharge platform, hydraulic station, computer control cabinet, and other parts.

1. the upper shaft of the pinch device adopts the cylinder lifting, and the clamping force is automatically adjusted according to different thickness materials.

• the whole machine is a chain-type chain transmission, the structure is firm and simple.
• a machine can produce different width sizes. The specification change adopts the form of through-axis, which is fixed on one side, and the other side is automatically moved by the motor. Any fast and sleepless change of width dimension, that is, the width can be changed in single digit size (such as 300, 400, . . . 680, etc.)

4, using the flat cutting process, no need to replace the cutting die when changing specifications.

Different with that kind of locking, we can also design such locking for you:

Image II Panel Description and Options ·

Rib profile: 1 inch tall integral “snap” lock design with fastening flange ·

Width: Standard panel width is 16 inches. Other widths available by location. ·

Profile: Standard panel profile is “striated”. Flat Pan (Smooth Profile) is also available. Some locations offer 2 pencil rib, 2 mesa rib, 2 minor rib, or 4 minor rib profiles. The striated profile option provides the best means for reducing the visibility of any potential oil-canning.

Self lock standing seam panel application:

All those designs self lock standing seam panel rolling forming machine we can make for you. Here is one working videos for your reference:
