Product Details:
|
| Material: | GI Coil | Function: | For Ceiling Or Drywall |
|---|---|---|---|
| Thickness:: | 0.3--1.2mm | Size Range: | Customized |
| Roller Material:: | Gcr12 Mov | Power(W):: | 7.5x2 Kw |
| Frame: | Molding Frame Of Thickness 35mm | Shearing: | Servo Tracking |
| Warranty:: | 2 Years | ||
| Highlight: | light steel keel roll forming machine,metal stud and track roll forming machine |
||

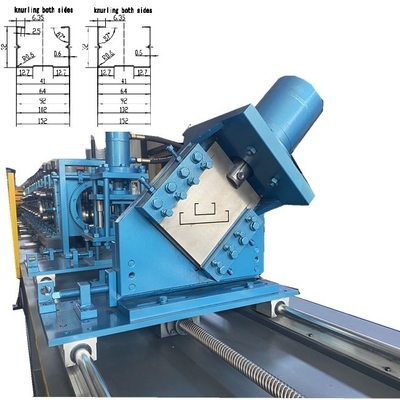

Galvanized Steel Wall Framing Stud Rolling Forming Machine
Galvanized Steel Wall Framing Stud Rolling Forming Machine manufactures a full line of drywall studs in 18, 27, 30 and 33 mil thicknesses (25-20ga.). These studs are available in standard 1-5/8'", 2-1/2'", 3-1/2'", 3-5/8'", 4'", 5-1/2'" and 6'" member widths and have 1-1/4'" flanges. Corresponding track comes with 1-1/4'", 2'" or 3'" leg. We also manufacture custom studs and track on request. Those are quite popular sizes in USA with some kind of punching, here we will take a random drawing profile for example:
With some kind of punching hole and bottom embossing like this:
Galvanized Steel Wall Framing Stud Rolling Forming Machine design:
Galvanized Steel Wall Framing Stud Rolling Forming Machine Parameters:
| Main roll forming machine | ||
| Note: We use split rollers to realize one machine to produce C drywall products with different bottom widths. | ||
| Voltage | 380V ,50Hz, 3Phase (as customer request) | |
| Frame type | Memorial arch frame of thickness 30mm | |
| Drive mode | Heavy duty gearbox as transmission | |
| Material of rollers | GCr12mov | |
| Material of shafts | 45# steel with tempering | |
| Diameter of shafts | Φ70mm | |
| Number of rollers | 15 rollers, with more rib roller one more station and 4 sets rib adjustable rollers | |
| Main power | 7.5 kw and with one more motors 11kw | |
| Raw Materials of the steel coil | Galvanized steel plate | |
| Material thickness | 0.5-1.5 mm | |
| Forming speed | 50 m per minute without punching hole | |
| Punching System | ||
| Before punching | After punching | |
| Material of the punching die | GCr 12 quenched | |
| Power supply | Hydraulic power | |
| Note: for the punching die, we wait your drawing and confirmation, and then update the quotation. |
||
Galvanized Steel Wall Framing Stud Rolling Forming Machine Features:
1. It has side rollers to trim the edge.
2. It designed with the turkey head to make sure the stud and track straight.
3. It use the separated rollers to make sure one machine can make a range of sizes stud and track profile.
4. PLC control machine working fully automatic.
5. Servo tracking shearing with the online punching.
6. Speed could be ranged from 25 to 120 meter minute.
7. Decoiler automatic type and the manual type optional.
8. Package system, with manual option and fully automatic system.
Working With Steel Studs: Metal Stud Framing:
Galvanized Steel Wall Framing Stud Rolling Forming Machine working videos for your reference:
