Product Details:
|
| Raw Material: | GI | Model Number:: | Light Keel Roll Forming Machine |
|---|---|---|---|
| Material Thickness: | 0.3--1.5mm | Shaft Diameter: | 60mm |
| Roller Material:: | Gcr12 | Power(W):: | 22KW |
| Function: | Roofing Batten | Control System:: | PLC Control |
| Warranty:: | Two Years | ||
| High Light: | light steel keel roll forming machine,metal stud and track roll forming machine |
||

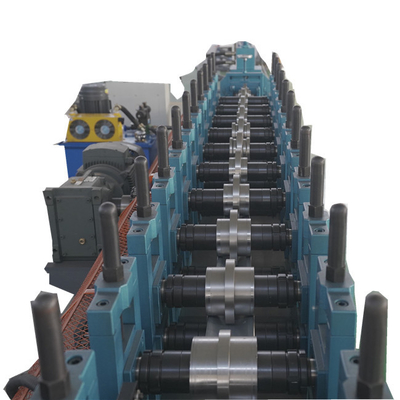

Metal roofing battens omega profile top hat profile rolling forming machine for Australia
Metal roofing battens omega profile rolling forming machine is designed to make the roofing batten profile in batch fully automatically with 90 degree shearing and 45 degree shearing.
What is the roofing pattern?
Roof battens are one of those frequently misunderstood and overlooked aspects of house construction. But roof battens perform some incredibly important structural functions to safeguard your roof.
Roof battens functions:
Provide a breathable space allowing any condensation to be eliminated. Increase the structural performance of roof truss systems. Enable roofing materials to be secured firmly to the roof
Assist with correct alignment of roofing sheets. The choice of roof batten material is extremely important as is the design of any batten system.This is because battens serve to evenly spread load stresses such as wind (uplift and direct loading) and weight across the roof truss system.Roofs can be subject to enormous forces especially during high wind events and many roofs have failed due to the use of inappropriate fasteners or the incorrect choice of batten material.It’s important to get the right advice whether you’re replacing a roof or designing a new build.
Here we take a popular roofing battens drawing profile for your reference:
Metal roofing battens omega profile rolling forming machine for Australia:
| Part 2: Main roll forming machine | ||
|
Roll forming machine |
Feeding device | With three rollers |
| Rolling shaft | Shaft material: 45# STEEL | |
| Shaft diameter: 60 mm | ||
| Tempering treatment | ||
| Roller material | GB-Cr12 | |
| Quenched treatment(heat treatment) 56-58 degree | ||
| Rolling station No. | 14 stations | |
| Work speed | 40 m/min | |
| Machine frame | Vertical arch frame structure 35mm thickness | |
| Bearing | Chinese famous brand Harbin | |
| Work power | 7.5 KW + Servo motor 2.2kw | |
| Transmission | By gear | |
For the shearing part:
Note: when do the straight cutting, it could cut like the video I sent to you. But when do the 45 degree shearing, you need to change another mold. Here is some pictures for your reference. And slow for molding shearing will be a little slower, around 20 to 25 meter per minute.When do the straight cutting, it can reach 40 meter per minute.
Half Automatic Product table
Table material: square pipe welded. It has the convey table. Convey the profiles to the stacker
And then package them by the workers.
Here is the machine fully automatic roofing batten machine working videos for your reference:
