Single-Leg Resilient Channel rolling forming machine

Single-Leg Resilient Channel rolling forming machine
Single-Leg Resilient Channel rolling forming machine Single-Leg Resilient Channel rolling forming machine Single-Leg Resilient Channel rolling forming machine Single-Leg Resilient Channel rolling forming machine Single-Leg Resilient Channel rolling forming machine Single-Leg Resilient Channel rolling forming machine

Large Image :  Single-Leg Resilient Channel rolling forming machine

Product Details:
Place of Origin: China
Brand Name: ZTAC
Certification: CE
Model Number: light steel keel
Payment & Shipping Terms:
Minimum Order Quantity: 1 set
Price: Customize
Packaging Details: Packaging Details: 1. one 20ft container for loading one set machine with manual decoiler; 2. the whole Wiped Anti Rust Oil, PLC controller covered by foam film; 3. Spare parts and some small parts packed in plastic tooling box; 4. All Components Fixed
Delivery Time: 65 days after receipt of buyer's deposit
Payment Terms: T/T, L/C
Supply Ability: 30 sets per month

Single-Leg Resilient Channel rolling forming machine

Description
Tile Type:: GI Coil Model Number:: Resilient Channel Machine
Thickness:: 0.3--1.2mm Dimension(L*W*H):: 4.5m*1.2m*1.2m
Roller Material:: 45# Forged Steel Power(W):: 4+4KW
Suitable To Process:: Color Steel Plate Control System:: PLC Control
Warranty:: 12 Months
High Light:

light steel keel roll forming machine

,

metal stud and track roll forming machine

                       Single-Leg Resilient Channel rolling forming machine

Single-Leg Resilient Channel rolling forming machine is designed to make the resilient channels for drywall in batch fully automatically. As to resilient channels, they are used for the fastening to framing. Normally use is a type S pan-head screw, with a 3/8”minimum length. For wood framing, use type-S or type-W screws (not nails) with 1-1/4” length. NOTE: Be aware that long screws in wood framing can loosen when wood dries out and shrinks. Make sure to use only 1-1/4” or 1-1/2”long fasteners in wood -or better yet, use steel framing! Here in one installation pictures for your reference:

Single-Leg Resilient Channel drawing profile for your reference:

drawing profile of the resilient channel

Single-Leg Resilient Channel rolling forming machine 1

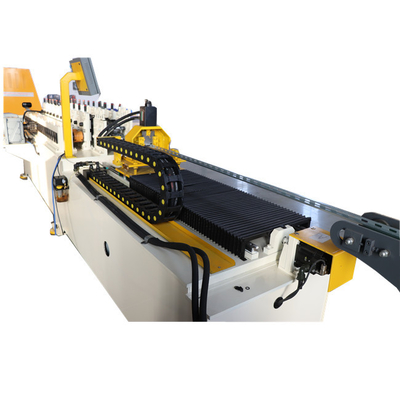

Single-Leg Resilient Channel rolling forming machine:

channel rolling machine

The Single-Leg Resilient Channel rolling forming machine is composed by the following elements: double head decoiler, rotary punching , main rolling forming machine with shearing system, receiving table and the package system. By those elements, the machine working speed with punching can reach 70 meter per minute.

  • Double head decoiler can help you add the coil fast as the machine working speed is very fast.
  • The leveling machine can remove the curving degree of the coil from decoiler and then do the punching part.

3. The rotary punching can do the working at the speed of 120 meter per minute.

4. The main rolling forming machine we design using the servo tracking shearing system, molding frame and high accuracy processing to make sure the machine working in a high speed and meanwhile working steady.

servo tracking of the channel machine



As to the fully automatic package machine it is optional. It can help you do the package automatically.

Package machine

Where to use of the Single-Leg Resilient Channel

Resilient channel was initially developed as a spacer in walls: where a transition needed to be made from single-layer ½-inch gypsum to double layer gypsum. The discovery that the channel provided better acoustical values was a welcome surprise to the makers of RC, and since then, manufacturers have developed various configurations of RC to maintain and improve acoustical performance. A few years ago, installation of RC was added to ASTM C754, which includes the following provisions:

Mounting flange (1/2” wide) goes down, face flange (1-1/4” wide) goes up. Exception: first row closest to the floor may be inverted.

The first (lowest) row of resilient channel shall be not more than 2” off the floor (as measured from the floor to the center of the face of the resilient channel).

The highest row of resilient channel shall be not more than 6” from the ceiling (as measured from the ceiling to the center of the face of the resilient channel).

Holes or slots in the web (sloped face) of the resilient channel should be centered over the supporting framing members.

Pre-punched holes in the narrow flange should be used for the screws attaching the RC to the studs.

Gypsum panel products shall be attached to the resilient furring channel using screws and ensuring that the screw does not touch the studs.

installation of the furring channel profile

Single-Leg Resilient Channel rolling forming machine 6



Single-Leg Resilient Channel rolling forming machine working video for your reference:
