Double Line Steel Stud Roll Forming Machine / C Channel Roll Forming Machine

Double Line Steel Stud Roll Forming Machine / C Channel Roll Forming Machine
Double Line Steel Stud Roll Forming Machine / C Channel Roll Forming Machine Double Line Steel Stud Roll Forming Machine / C Channel Roll Forming Machine Double Line Steel Stud Roll Forming Machine / C Channel Roll Forming Machine

Large Image :  Double Line Steel Stud Roll Forming Machine / C Channel Roll Forming Machine

Product Details:
Certification: CE
Model Number: light steel keel
Payment & Shipping Terms:
Minimum Order Quantity: 1 set
Packaging Details: Packaging Details: 1. one 20ft container for loading one set machine with manual decoiler; 2. the whole Wiped Anti Rust Oil, PLC controller covered by foam film; 3. Spare parts and some small parts packed in plastic tooling box; 4. All Components Fixed
Delivery Time: 45 days after receipt of buyer's deposit
Payment Terms: T/T, L/C
Supply Ability: 30 sets per month

Double Line Steel Stud Roll Forming Machine / C Channel Roll Forming Machine

Description
Tile Type:: Colored Glaze Steel Model Number:: Light Keel Roll Forming Machine
Thickness:: 0.3--0.8mm Dimension(L*W*H):: 4.5m*1.2m*1.2m
Roller Material:: 45# Forged Steel Power(W):: 4+4KW
Suitable To Process:: Color Steel Plate Control System:: PLC Control
Warranty:: 12 Months
High Light:

light steel keel roll forming machine

,

t bar roll forming machine

Double Line Light Gauge Keel Stud Track c Channel Steel Roll Forming Machine


1, What is the double line light gauge keel stud track c channel steel roll forming machine?

c channel steel roll forming machine is widely used around the world. This galvanized steel c channel forming mahcine have two forming lines, but they have seperated control systems, this kind of double line light gauge keel stud track c channel steel roll forming machine will save the space for the factory. And the products this machine produced is mainly used for the drywall and the ceiling structure. As a basic material, c channel is widely used for many aspects as assistant supporters. According to different usages, it has ceiling-hanging truss and supporting truss. According to different shape, it has V, C, L,U and T types profile truss.
The difference between the c channel steel roll forming machine and the c z u purlin roll forming machine

The biggest difference between the c u w profile stud and purlin is that the thickness. The C U H purlin often used as the support of the building.The thickness range of the purlin is :2.0-4.0mm.while the c u w L light steel stud is :0.3-0.8mm so the c z u purline machine is much stronger , with big electric power and thick blade which can cut the purlin .
The c z u w channel stud is often used in ceiling and wall structure. The C Z Purlin and U purlin are used for supporting the ceiling from the ground.
(This machine is full automatic fast-changeable machine. It can produce C and Z two profile. It can change the size and profile fast. TheCZ interchangeable machine is more economic and practical than the separate machines. Also it can save more space.)

2, What is the specifications of our double line light gauge keel stud track c channel steel roll forming machine?

Name double line light gauge keel stud track c channel steel roll forming machine
Raw material Galvanized
Thickness 0.3-0.8mm
Inner Diameter 450-550mm
Max Coil width 300mm
Capacity 1.5T
Forming steps 10 rollers
Shaft diameter 40mm
Design type Memorial arch
roller material GCr12MoV steel
shaft material 45# steel
Work speed 0-25m/min
Transport By gear
Power of main machine 3kw
Type of cutting Hydraulic
Cutting tolerance ±1mm
Cutter Gcr12
Hydraulic oil 46#
Hydraulic power 3kw
PLC Brand Delta(as your requirement)

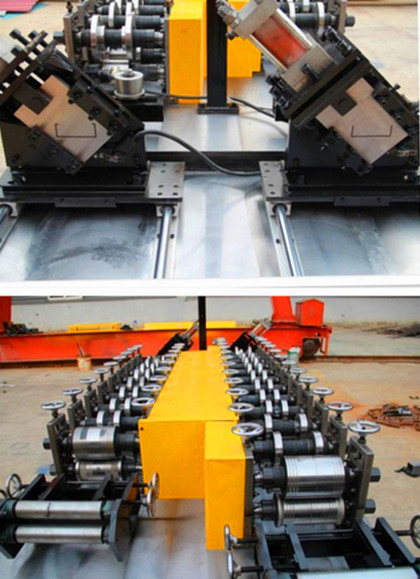

Some details of double line light gauge keel stud track c channel steel roll forming machine
Double Line Steel Stud Roll Forming Machine / C Channel Roll Forming Machine 0
